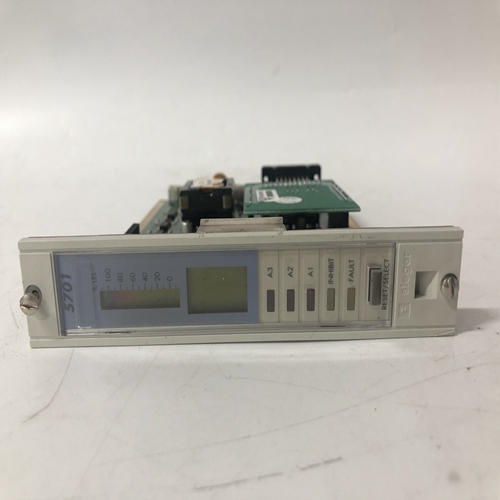

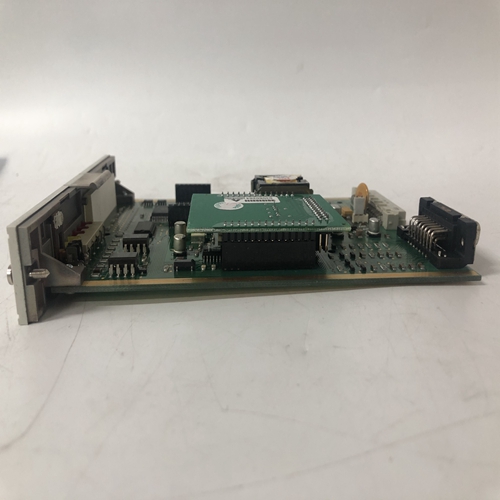

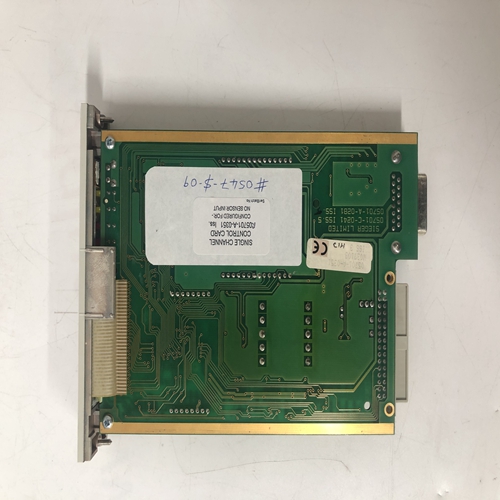

HONEYWELL 05701-A-0351输出卡件
压接（无焊接）连接器-当两条或多条导线或导线和部件引线的组合应插入外壳后部的连接器端子中。电线
导线压接在连接器中，连接器引脚插入选定的连接器端子。连接器可以提供更安全的涉及多条导线时的连接。其使用示例见正当各种Moore 353中提供了多个压接连接器安装套件，可从大多数电源获得。
布线和导管-直流布线应与交流布线分开，并远离交流供电按钮、报警器、报警器、电机、螺线管和类似装置。导管和电缆管道通常为：用于布线面板布线。未安装在导管或电缆管道中的接线应夹紧或支撑
大约每12英寸（300毫米）。笔记：1.端子号显示在每个连接器上。连接器的插入部分用外壳包装。连接器是键控的。
2.外壳/安全接地-连接到后端子区域顶部中心的绿色螺钉。
3.NCA和NCB-连接LIL双轴电缆或双绞线。有关更多详细信息，请参阅第8.4.9节。
4.IOA和IOB-LonWorks总线连接。双绞线是典型的。
5.接地总线-外部用户提供的接地总线可以简化多个接地的连接，特别是在以下情况下
双轴电缆屏蔽应接地。
1.端子字母和数字打印在各个连接器上。型号353_1_N…有2个连接器；模型
353_2_1…具有4个连接器和一个I/O扩展板。（下划线是占位符/通配符；省略号指示后续字符不影响选择。）
2.外壳/安全接地-连接至后端子区域顶部中心的绿色螺钉。
3.NCA和NCB-连接LIL双轴电缆或双绞线。有关更多信息，请参阅第8.5节信息
4.IOA和IOB-LonWorks总线连接。双绞线是典型的。
5.接地总线-外部用户提供的接地总线可以简化多个接地的连接，特别是在以下情况下双轴电缆屏蔽应接地。8.4.2模拟信号输入接线（4-20 mA、1-5 Vdc和mV）
Moore 353模拟信号输入端子连接到系统内的软件功能块AIN和AINU控制器。表8.1关联了功能块和输入端子。这些终端将接受多个输入具有适当布线和组件的信号类型。AIN或AINU功能块的电流输入信号必须通过量程电阻器转换为1-5 Vdc。
输入类型功能块（1）范围电阻器（2）图
4-20 mA AIN1-4 250Ω 8-9和8-10AINU1和2 3.75Ω 8-11A
1-5 Vdc AIN1-4不需要8-9和8-10毫伏AINU1和2不需要8-11B
笔记：（1） 功能块AIN4、AINU1和AINU2仅在I/O扩展器板为安装。
（2） 所列量程电阻器在安装套件中提供。对于其他当前值，请选择一个范围提供1-5 Vdc输入的电阻器。例如，对于10-50 mA，安装100Ω 范围电阻。
Crimp-On (solderless) Connectors - A pin-style crimp-on connector can be used when two or more wires or a
combination of wires and component leads are to be inserted into a connector terminal at the rear of the case. Wires
and leads are crimped in the connector and the connector pin inserted in the
selected connector terminal. The connector can provide a more secure
connection when multiple leads are involved. An example of its use is shown at
right. Several crimp-on connectors are provided in various Moore 353
installation kits, and they are available from most electrical supply sources.
Wire Routing and Conduit - DC wiring should be separated from AC wiring and away from AC powered
pushbuttons, alarms, annunciators, motors, solenoids, and similar devices. Conduit and raceways are commonly
used for routing panel wiring. Wiring not installed in conduit or raceway should be clamped or supported
approximately every 12 inches (300 mm). Notes:
1. Terminal numbers are shown on each connector. The plug-in portions of the connectors are packed with a case.
The connectors are keyed.
2. Case/Safety Ground - Connect to green screw at top center of rear terminal area.
3. NCA and NCB - Connect LIL Twinaxial Cable or twisted pair wiring. Refer to Section 8.4.9 for additional details.
4. IOA and IOB - LonWorks bus connections. Twisted pair wiring is typical.
5. Ground Bus - An external, user-supplied ground bus can ease connection of multiple grounds, particularly when
twinaxial cable shields are to be grounded. 1. Terminal letters and numbers are printed on individual connectors. Model 353_1_N… has 2 connectors; Model
353_2_1… has 4 connectors and an I/O Expander board. (Underscore is a placeholder/wildcard; ellipsis
indicates that subsequent characters do not affect selection.)
2. Case/Safety Ground - Wire to green screw at top center of rear terminal area.
3. NCA and NCB - Connect LIL Twinaxial Cable or twisted pair wiring. Refer to Section 8.5 for additional
information.
4. IOA and IOB - LonWorks bus connections. Twisted pair wiring is typical.
5. Ground Bus - An external, user-supplied ground bus can ease connection of multiple grounds, particularly when
twinaxial cable shields are to be grounded.8.4.2 Analog Signal Input Wiring (4-20 mA, 1-5 Vdc, and mV)
Moore 353 analog signal input terminals are connected to software function blocks AIN and AINU within the
controller. Table 8.1 correlates function blocks and input terminals. These terminals will accept several input
signal types with the appropriate wiring and components. A current input signal to an AIN or AINU function block
must be converted to 1-5 Vdc by a range resistor.
INPUT TYPE FUNCTION BLOCKS(1) RANGE RESISTOR(2) FIGURE
4-20 mA AIN1-4 250Ω 8-9 and 8-10
AINU1 and 2 3.75Ω 8-11A
1-5 Vdc AIN1-4 Not Required 8-9 and 8-10
Millivolt AINU1 and 2 Not Required 8-11B
Notes:
(1) Function blocks AIN4, AINU1, and AINU2 are available only when an I/O Expander Board is
installed.
(2) Range resistors listed are supplied in Installation Kits. For other current values, select a range
resistor that will provide a 1-5 Vdc input. For example, for 10-50 mA, install a 100Ω range
resistor.
