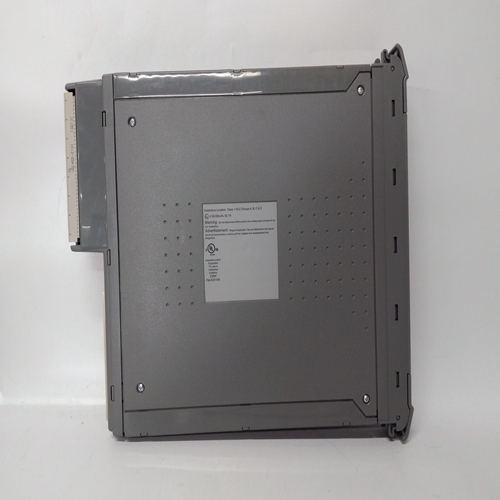

ICS TRIPLEX T8310

ICS TRIPLEX T8310

ICS TRIPLEX T8310扩展模块一些事情进行更改时要记住的是:a) 所有模拟信号已配置为0.00至100.00的工程范围。在大多数情况下,转换对于其他工程单位,只需要改变源的范围(例如模拟输入功能块)。需要了解范围的所有其他模块(即控制器、操作员显示器、报警和设定点)具有指向该信息的信号源(例如模拟输入块)的范围指针。b) 许多功能块具有可能受范围指针影响的参数。范围指针限制将参数值设置...

  • 功能特性
  • 参数规格
  • 视频
  • 应用案例
  • 下载

ICS TRIPLEX T8310

    ICS TRIPLEX T8310扩展模块

    一些事情进行更改时要记住的是:

    a) 所有模拟信号已配置为0.00至100.00的工程范围。在大多数情况下,转换对于其他工程单位,只需要改变源的范围(例如模拟输入功能块)。需要了解范围的所有其他模块(即控制器、操作员显示器、报警和设定点)具有指向该信息的信号源(例如模拟输入块)的范围指针。

    b) 许多功能块具有可能受范围指针影响的参数。范围指针限制将参数值设置在范围的-10%到110%之间。如果改变范围,则电流参数值将在新范围内更改为相同的%。例如,如果范围为0.0-100.0报警1限值设置为90.0,范围更改为400.0-500.0。报警设置将更改至490.0。

    c) 所有控制器(ID、PID、PD、PIDAG)输出的工程范围为0.0-100.0,令人满意在大多数情况下,因为输出通常转换为4-20mA信号以驱动阀门0-100%打开或关闭。

    然而,当控制器用于级联配置时,主控制器输出必须为配置用于与次级控制器过程相同的工程范围。

    d) FCO不会更改台站参数或校准。

    e) FCO 0删除所有循环,并将STATN和SECUR功能块中的所有参数设置为默认值。校准不受影响。随着新循环和功能块的添加,参数将默认显示价值观工厂配置选项FCO101提供了在Loop01中配置的单回路控制器循环配置以及对配置的默认参数值的任何更改如下所示阻碍。

    此配置提供了设定点跟踪

    当循环未处于自动(NA)。如果回路标签“Loop01”被更改,则站内所有配置的参考将自动更改为新标签FCO102-带固定设定点的单回路控制器

    工厂配置选项FCO102提供了在Loop01中配置的单回路控制器

    循环配置以及对配置的默认参数值的任何更改如下所示阻碍。如果回路标签“Loop01”更改,则站内所有配置的参考将自动已更改为新标签。工厂配置选项FCO103提供了一个单回路控制器,该控制器具有在Loop01中配置的外部设定点。

    回路配置框图如下所示,以及对默认参数值的任何更改所配置的块。此配置提供设定点跟踪。如果需要固定设定点,则TC输入可将SETPT功能块设置为未配置。如果循环标记“LOOP01”已更改,则所有已配置

    引用将自动更改为新标记

     Some things

    to keep in mind when making changes are:

    a) All analog signals have been configured for an engineering range of 0.00 to 100.00. In most cases converting

    to other engineering units will only require changing the range at the source (e.g. Analog Input function block).

    All other blocks (i.e. Controller, Operator Display, Alarm, and Setpoint) that require knowledge of the range

    have range pointers that point to the signal source (e.g. Analog Input block) for this information.

    b) A number of function blocks have parameters that may be affected by range pointers. The range pointer limits

    the setting of parameter values to within -10% to 110% of the range. If a range is changed, the current

    parameter values will be changed to the same % within the new range. For example, if the range is 0.0-100.0

    and the Alarm 1 Limit setting is 90.0 and the range is changed to 400.0-500.0 the alarm setting will be changed

    to 490.0.

    c) All controller (ID, PID, PD, PIDAG) outputs have an engineering range of 0.0-100.0 which will be satisfactory

    in most cases since outputs normally convert to a 4-20 mA signal to drive a valve 0-100% Open or Closed.

    However, when a controller is used in a cascade configuration, the primary controller output must be

    configured for the same engineering range as the secondary controller process.

    d) FCOs do not change Station parameters or calibration.

    e) FCO 0 deletes all loops and set all parameters in the STATN & SECUR function blocks to default values.

    Calibration is not affected. As new loops and function blocks are added, parameters will appear at default

    values.Factory Configured Option FCO101 provides a single loop controller configured in Loop01. A block diagram of

    the loop configuration is shown below along with any changes to the default parameter values of the configured

    blocks. This configuration provides setpoint tracking which will cause the setpoint to track the process when the

    loop is not in Auto (NA). If the loop tag ‘Loop01’ is changed, all configured references within the station will

    automatically be changed to the new tag  FCO102 - Single Loop Controller w/ Fixed Setpoint

    Factory Configured Option FCO102 provides a single loop controller configured in Loop01. A block diagram of

    the loop configuration is shown below along with any changes to the default parameter values of the configured

    blocks. If the loop tag ‘Loop01’ is changed, all configured references within the station will automatically be

    changed to the new tag. Factory Configured Option FCO103 provides a single loop controller with external setpoint configured in Loop01.

    A block diagram of the loop configuration is shown below along with any changes to the default parameter values

    of the configured blocks. This configuration provides setpoint tracking. If a fixed setpoint is desired, the TC input

    to the SETPT function block can be set to UNCONFIG. If the loop tag ‘LOOP01’ is changed, all configured

    references will automatically be changed to the new tag
