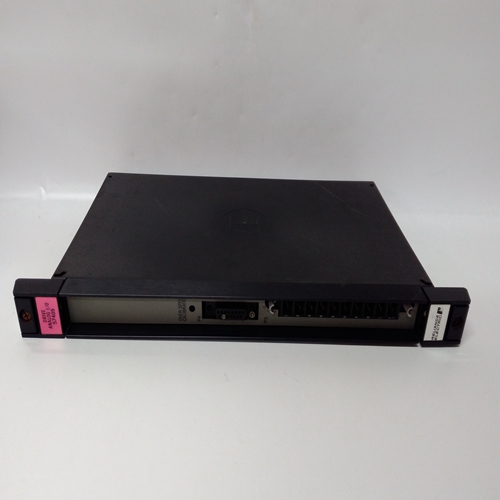

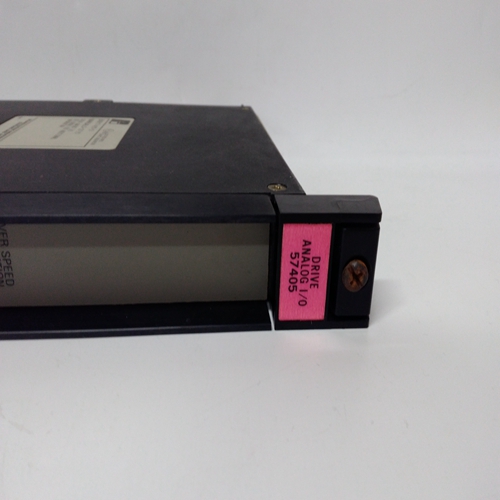

RELIANCE 57405控制板
所有输入类型都经过工厂校准，不需要现场校准。然而，对于输出必须进行调整以满足当地标准，现场校准功能可用于替代工厂校准对于所选的输入类型。保留出厂校准，以便将输入返回出厂
通过在校准选择中存储“FAC”，随时进行校准。表3.5提供了以下输入值：用于执行现场校准。校准期间，验证模式可用于通过查看传感器输入全范围。在校准验证模式下查看的信号采用基本测量单位（例如，°C温度，毫伏的mv），并且不受温度单位转换、数字滤波器、缩放或输出偏置调整。可以在查看模式下查看应用了这些参数的完整块输出循环内配置。在热启动、热启动或冷启动期间，功能块将暂时旁通数字滤波器，使输出能够在实际硬件输入信号处初始化。请注意，现场校准为：更改传感器类型时将被擦除。3.2.11 AIP_-模拟输入水平百分比AIP_功能块转换模拟信号
使用lev百分比类型SNVT（标准网络变量类型）从LonWorks接收网络成块输出，在工程中按比例缩放
单元，用于与其他功能块互连在控制器内。最多25个AIP_可以使用块，直到节点的限制
在Lon网络上允许，或内存限制为控制器。区块的每次使用将：分配了唯一的全站ID（如AIP06）。
当LonWorks时
这些块可用选项板安装在352P、353或354N中控制器。输入连接通过以下方式建立：
从远程“绑定”网络变量AIP网络变量的模拟节点_功能块。
可以输入6个字符的ASCII值识别输出信号的工程单位。输出缩放（MINSCALE和MAXSCALE）提供给
建立工程选择范围。可以查看AIP块的输入网络变量的编号在配置模式下。这在其他设备需要绑定时非常有用。输出范围是一个特殊的数据类型，包括最小和最大刻度、DPP和可连接到其他的ENGUNITS具有范围（RG PTR）输入的块。块输出QS指示输出信号O1的质量状态，当输出为坏时将变高质量质量差通常表示LonWorks网络内的通信丢失。
All input types are factory calibrated and do not require field calibration. However, for those cases where outputs must be adjusted to meet a local standard, a field calibration feature is available to override the factory calibration for the input type selected. The factory calibration is retained so that the input can be returned to the factory calibration at any time by storing ‘FAC’ in the calibration selection. Table 3.5 provides the input values that are used to perform a field calibration. A verify mode is available during calibration to view the sensor input over the full range. The signal that is viewed, in the calibration verify mode, is in the basic units of measure (e.g. °C for temperature, mv for millivolts) and is not affected by the temperature units conversion, digital filter, scaling, or the output bias adjustment. The full block output with these parameters applied can be viewed in the VIEW mode within loop configuration. During a hot, a warm or a cold start, the function block will temporarily by-pass the digital filter to enable the output to initialize at the actual hardware input signal. Note that the field calibration is erased when the SENsor TYPE is changed.3.2.11 AIP_ - Analog Input lev_Percent AIP_ function blocks convert an analog signal with a lev-percent type SNVT (Standard Network Variable Type) received from the LonWorks network into a block output, scaled in engineering units, for interconnection to other function blocks within the controller. A maximum of 25 AIP_ blocks can be used, up to the limit of nodes allowed on the Lon network or the memory limit of the controller. Each use of the block will be assigned a unique station wide ID (e.g. AIP06). These blocks are available when the LonWorks option board is installed in a 352P, 353, or 354N controller. The input connection is established by ‘binding’ a network variable from the remote analog node to the network variable of the AIP_ function block. A 6-character ASCII value can be entered to identify the engineering units of the output signal. Output scaling (MINSCALE and MAXSCALE) is provided to establish an engineering range of choice. The number of the input network variable to the AIP block can be viewed in the configuration mode. This is useful when other devices need this for binding. The Output Range is a special data type that includes the MIN and MAX SCALE, the DPP, and the ENGUNITS that can be connected to other blocks with a Range (RG PTR) input. The block output QS indicates the quality status of the output signal O1 and will go high when the output is of bad quality. Bad quality usually indicates a loss of communications within the LonWorks network.
