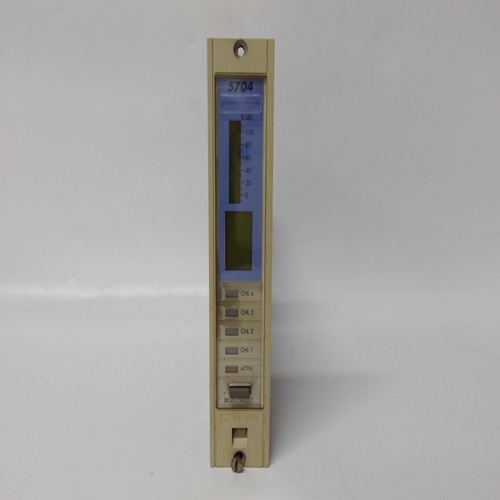

HONEYWELL 05704-A-0145通道控制卡
当安装LIL选项板以启用时，根据需要在回路中使用LIL全局功能块LIL上的全球数据通信。它们将自动分配
每个循环内的唯一名称（如AIL01、DIL01），配置为唯一的块名变为＜loop＞<块>（如TC2053.AIL01）。
根据需要提供输入和输出数据块，并将其分配使用的唯一名称（例如，模拟输入LIL块的AIL01、AIL02）。
以太网功能块（V2.4）在以下情况下根据需要在环路中使用：已安装以太网选项板。它们将自动分配一个
每个循环内的唯一名称（如AIE01、DIE01），配置为唯一的块名变为＜loop＞<块>（如TC2053.AIE01）。加电初始化
Moore 353将在工作站NVRAM中保留计算出的块值（例如，输出、经过时间、最后输入/输出逻辑状态），包括自断电以来的时间。三种通电模式（热、热和冷）为用于影响功能块初始化的摩尔353。这些模式由两个电源配置站参数中包含的启动定时器（暖定时器和冷定时器）。通电时，电站将初始化热启动
在暖定时器到期之前发生。到期后通电时将发生冷启动冷定时器到期后，当电站通电时，将进行热启动
但在冷定时器期满之前。
热启动1-所有功能块的执行从断电前的最后一个状态继续。
暖启动1通过设计或配置，在最后状态下具有通电功能的功能块
选择，将按照单个块描述中的定义通电。所有其他功能块将在冷启动条件。
冷启动1除非个别块描述中另有说明，否则所有功能块输出将初始化为0。
1.2.3配置摩尔353可以本地或远程配置。首先，本地面板包括位于用于完整配置的翻转门后，包括回路和功能块的添加/删除，以及功能块参数的编辑。第2节“配置概述”包括步骤的路线图通过配置。某些块参数（如增益、常数）可以在线编辑，但设计变更（如块互连、块添加）将使电站处于“配置保持”状态，该状态将保持以当前值输出，直到按下退出按钮。这将允许在在线。第二种方法是使用图形配置程序。A.配置可以通过本地端口下载到控制器面板或通过网络（Modbus、以太网或LIL）。在
下载，所有输出将被保留，控制器将保留所有在之前运行的所有块的中间计算下载后，具有相同标签的所有功能块参数保存的名称将用于初始化下载的功能块从而在这些条件下提供无碰撞下载。如果循环标记名更改，该循环中所有功能块的标记名将改变，因此需要重新初始化所有这些块。
但是，可以从本地面板更改回路标记，而不会导致重新初始化，提供无碰撞的标签更改。
LIL Global Function Blocks are used as needed within a LOOP when the LIL option board is installed to enable
global data communication over the LIL. They will automatically be assigned
a unique name (e.g. AIL01, DIL01) within each loop when it is configured so
that the unique block name becomes <loop>.<block> (e.g. TC2053.AIL01).
Input and output data blocks are available as needed and will be assigned
unique names as used (e.g. AIL01, AIL02 for Analog Input-LIL blocks).
Ethernet Function Blocks (V2.4) are used as needed within a LOOP when
the Ethernet option board is installed They will automatically be assigned a
unique name (e.g. AIE01, DIE01) within each loop when it is configured so
that the unique block name becomes <loop>.<block> (e.g. TC2053.AIE01). Power Up Initialization
The Moore 353 will retain, in the station NVRAM, calculated block values (e.g. outputs, elapsed time, last
input/output logic states), including the time since power was lost. Three power up modes (hot, warm, and cold) are
utilized in the Moore 353 that affect the initialization of function blocks. These modes are configured by two power
up timers (warm and cold), included in STATION parameters. The station will initialize a hot start when power up
occurs prior to the expiration of the warm timer. A cold start will occur when power up occurs after the expiration
of the cold timer and a warm start will take place when the station powers up after the expiration of the warm timer
but prior to the expiration of the cold timer.
Hot Start1
- All function block execution continues from the last state prior to power fail.
Warm Start1
- Function blocks that have a power up in a last state feature, either by design or by configuration
selection, will power up as defined in the individual block descriptions. All other function blocks will initialize at
cold start conditions.
Cold Start1
- All function block outputs will initialize at 0 unless otherwise stated in individual block descriptions.
1.2.3 Configuration
The Moore 353 can be configured either locally or remotely. First, the local faceplate includes buttons located
behind a flip-down door for complete configuration including the addition/deletion of loops and function blocks and
the editing of function block parameters. Section 2 Configuration Overview includes a road map for stepping
through configuration. Certain block parameters (e.g. gains, constants) can be edited while on-line but design
changes (e.g. block interconnections, block additions) will put the station in “configuration hold” which will hold
outputs at the current value until the Exit button is pressed. This will enable bumpless changes to be made while
on-line.
The second method is to use the Graphical Configuration program. A
configuration can be downloaded to a controller either via the port on the local
faceplate or over a network (either Modbus, Ethernet, or LIL). During a
download, all outputs will be held and the controller will retain all the
intermediate calculations of all the blocks it had been running prior to the
download. After the download, all function block parameters with the same tag
name as those held will be used to initialize the downloaded function block
parameters, thus providing a bumpless download under these conditions. If a
loop tag name is changed, the tag names of all function blocks within that loop
will change and will, therefore, require re-initialization of all of these blocks.
However, the loop tag can be changed from the local faceplate without causing
re-initialization, providing a bumpless tag change.
