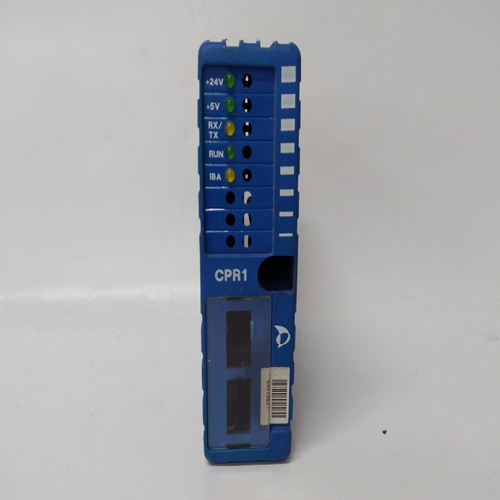

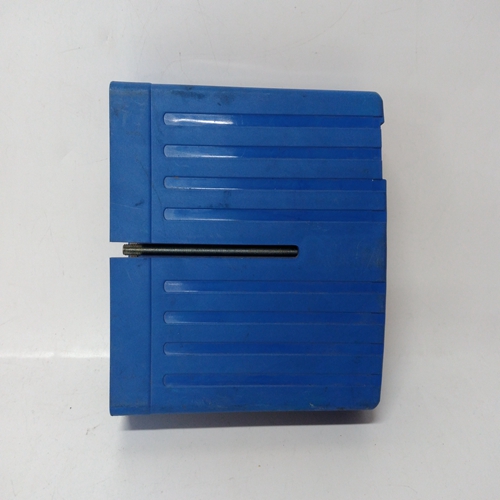

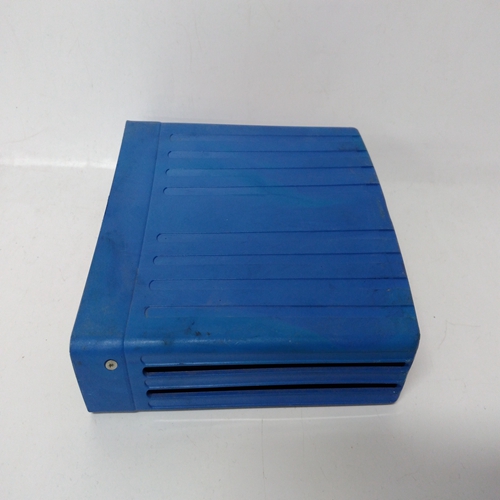

NELES AUTOMATION A413280 CPR1输出模块
一天中的时间(例如23:59),小时值闪烁。(4) 按下工程卡时钟按钮a
第二次和选定的控制卡数字显示将以分钟显示一天中的时间(例如23:59)值正在闪烁。
(5) 再次按下工程卡时钟按钮时间和所选控制卡将显示:a、 信息显示屏上的年份(如1995年)(闪烁)。
b、 月和日(如08-26)或日和月(如26-08)显示在数字显示器上,具体取决于:国际日期格式配置。
(6) 随后按下时钟按钮将导致月份然后一天就要过去了。
(7) 进一步按下时钟按钮将重复步骤(3)至(6)。
(8) 在每个阶段,使用和按钮升高或降低4.8
根据需要显示数值,以设置任何新的日期和时间。
注意:在上述顺序中,随时按下按钮将使工程卡返回到所选模式,而不更改时钟时间和日历日期。
(9) 按下按钮设置工程卡实时时钟返回到新的日期和时间,并将控制卡返回到选定的
模式维护记录打印输出
有关维护记录打印输出的详细信息,请参阅第6章第节
4.8.批准和标准
设计符合:
EN50054一般要求(可燃气体)。
EN50057性能(100 LEL)。EN50058性能(100 V/V)。
EN50271软件和数字技术。
满足50V操作的Exe隔离要求。
BBG Pruef-und Zertifizier GmbH考试,EC类型考试证书BVS
04 ATEX G 001 X。
注:如果符合EC型式检验证书BVS 04
需要ATEX G 001 X,请参阅第10章“特殊条件”为了安全使用’。确保满足其中的所有条件。
SETTING THE CLOCK/CALENDAR
Note: This operation requires a control card to be selected but the
operation has no effect on the selected control card, which is used
as a display device only.
To set the clock time and calendar date, proceed as follows:
(1) Plug the Engineering Key into the Engineering Card front panel
socket and check that the Unlocked LED ( ) is illuminated.
(2) Push and hold the required control card RESET/SELECT pushbutton for approximately 1.5 seconds and check that the selected
control card indicates it has been selected by displaying the select
icon.
(3) Push the Engineering Card CLOCK push-button and
the selected control card digital display will show the
time of day (eg. 23:59) with the HOURS value flashing.
(4) Push the Engineering Card CLOCK push-button a
second time and the selected control card digital display
will display the time of day (eg. 23:59) with the MINUTES
value flashing.
(5) Push the Engineering Card CLOCK push-button a third
time and the selected control card will display:
a. The year (eg. 1995) on the message display
(flashing).
b. The month and day (eg. 08-26) or day and month
(eg. 26-08) on the digital display depending upon
the international date format configuration.
(6) Subsequent pushes of the CLOCK push-button will cause the month
and then the day to flash.
(7) Further pushes of the CLOCK push-button will repeat Steps (3) to (6).
(8) At each stage, use the and push-buttons to raise or lower the 4.8
displayed numerical value as required to set any new date and time.
Note: Pressing the push-button at any time during the above sequence
will return the Engineering Card to the selected mode without
changing the clock time and calendar date.
(9) Press the push-button to set the Engineering Card real time clock
to the new date and time, and return the control card to the selected
mode.MAINTENANCE RECORD PRINTOUTS
For details of maintenance record printouts, refer to Chapter 6 Section
4.8.APPROVALS AND STANDARDS
Designed to comply with:
EN50054 General Requirements (Combustible Gases).
EN50057 Performance (100 LEL).
EN50058 Performance (100 V/V).
EN50271 Software and Digital Technologies.
Meets Exe isolation requirements for 50V operation.
EXAM BBG Pruef- und Zertifizier GmbH, EC-type examination certificate BVS
04 ATEX G 001 X.
Note: If compliance with the EC-type examination certificate BVS 04
ATEX G 001 X is required, refer to chapter 10 ‘Special Conditions
for Safe Use’. Ensure that all conditions therein are met.
