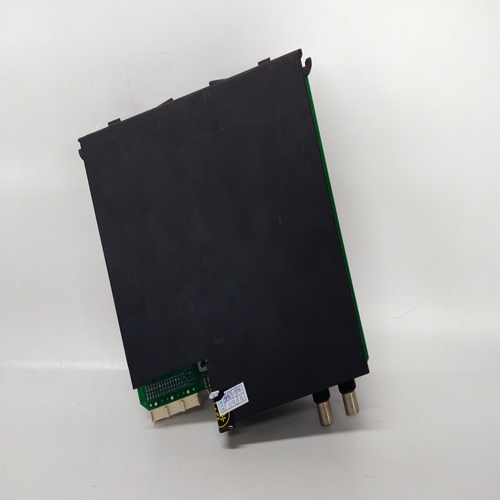

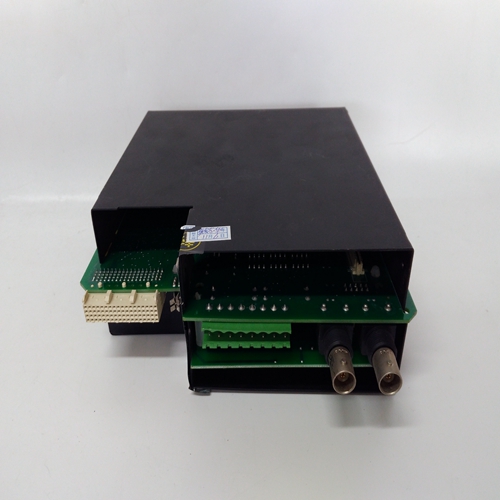

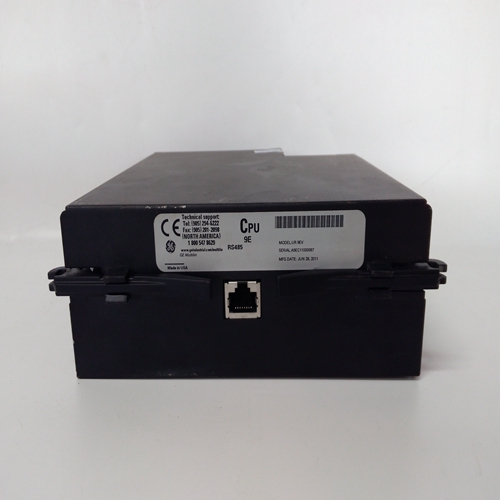

UR9EV继电工控模块
EEPROM故障。
EEPROM保存应用程序配置数据。
显示EEPROM故障消息如果存在校验和差或无法执行校验和启动期间的测试或定期自检。
这是一个严重的卡故障，该卡需要更换。
Vps插件已安装。
Vps插件用于设置Vps参考，不适用于操作传感器。
Vps插件安装信息为出厂信息
测试消息显示时表明：传感器上安装了一个特殊模块驱动模块连接。
除非卡被错误地配备VP1模块。这是严重的卡故障，因此需要更换。
94电流设置故障（仅催化）
当前设置故障信息为：如果通道卡未能：设置正确的催化传感器桥启动程序期间的电流。
检查传感器连接和电缆确保最大线路长度未超过阻抗。
93配置故障将显示配置故障消息启动期间，如果通道卡没有配置信息或配置无效。
这是一个严重的卡故障，该卡需要更换。
92错误的插件显示错误的插件消息在启动期间，如果实际传感器驱动安装在通道卡上的模块不同从通道卡中选择的类型配置
应检查插件的与传感器的兼容性，以及插件模块或通道卡配置相应地改变。
不适用高完整性继电器故障。实际和要求的状态高完整性继电器输出不匹配。
检查高完整性继电器卡是否：正确连接。如果可能，使用另一个已知工作高完整性继电器或控制卡，以确定要更换的卡。硬件故障如果出现以下情况，将显示硬件故障消息：
通道卡在其操作中检测到故障或传感器输入故障。
检查传感器连接。删除通道卡并将其插入兼容工作通道并检查其运行情况
（ER86可能在此操作期间出现-此正常）。如果卡仍指示故障，则
必须更换。如果卡正在工作，则应更换传感器。
EEPROM Failure.
The EEPROM holds the application
configuration data.
The EEPROM failure message is displayed
if there is a checksum difference or it has
been impossible to carry out a checksum
test during start-up or periodic self test.
This is a serious card failure and, as such,
the card needs to be replaced.
Vps Plug-in Fitted.
The Vps plug-in is used to set the Vps
reference and is not suitable for operating
sensors.
The Vps plug-in fitted message is a factory
test message, when displayed indicates that
a special module is fitted to the sensor
drive module connections.
Unless the card has been incorrectly
supplied with a VP1 module fitted.This is a
serious card failure and, as such, the card
needs to be replaced.
94 Current Setting Fault (Catalytic Only)
The current setting fault message is
displayed if the channel card has failed to
set the correct catalytic sensor bridge
current during the startup routine.
Check the sensor connection and cable
line lengths to ensure that maximum line
impedance has not been exceeded.
93 Configuration Fault
The configuration fault message is displayed
during start-up if the channel card has no
configuration information or the configuration
is not valid.
This is a serious card failure and, as such,
the card needs to be replaced.
92 Wrong Plug-in
The wrong plug-in message is displayed
during start-up if the actual sensor drive
module fitted to the channel card is different
from the type selected in the channel card
configuration.
The plug-in should be checked for
compatibility with the sensor and either the
plug-in module or channel card configuration
changed accordingly.
Not applicable
High Integrity Relay Fault.
The actual and demanding states of the
high integrity relay outputs do not match.
Check that the high integrity relay card is
properly connected. If possible use another
known working high integrity relay or control
card to determine which card to replace.Hardware Fault
The hardware fault message is displayed if
the channel card detects a fault in its operation
or a fault with a sensor input.
Check the sensor connections. Remove the
channel card and insert it into a compatible
working channel and check its operation
(ER86 may appear during this operation - this
is normal). If the card still indicates a fault, it
must be replaced. If the card is working, the
sensor should be replaced.
