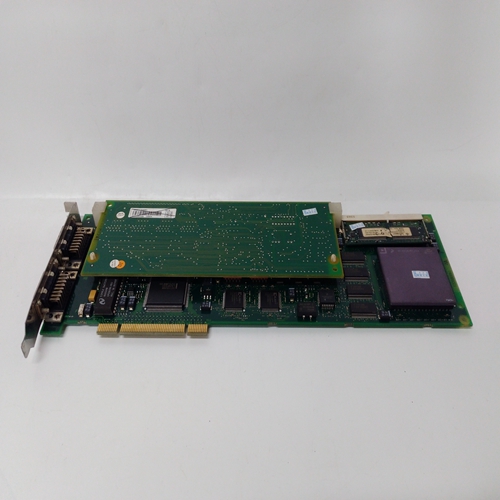

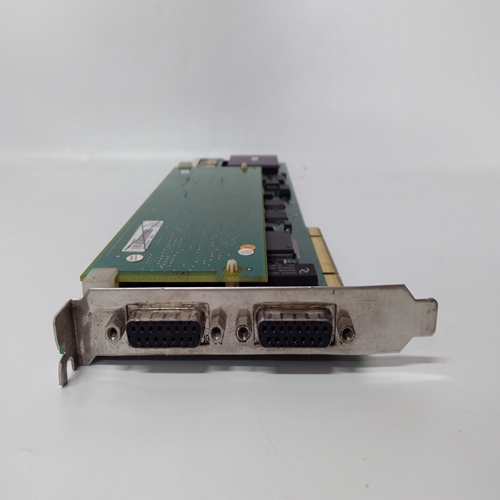

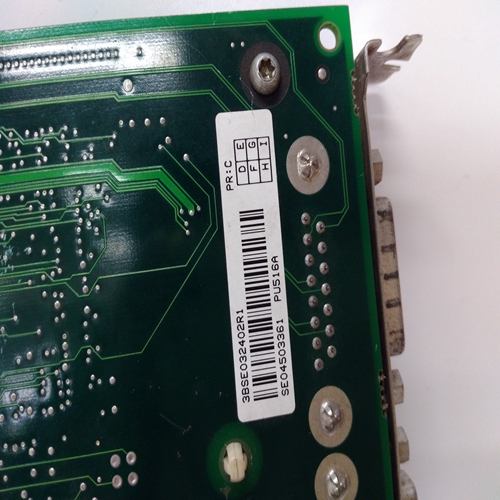

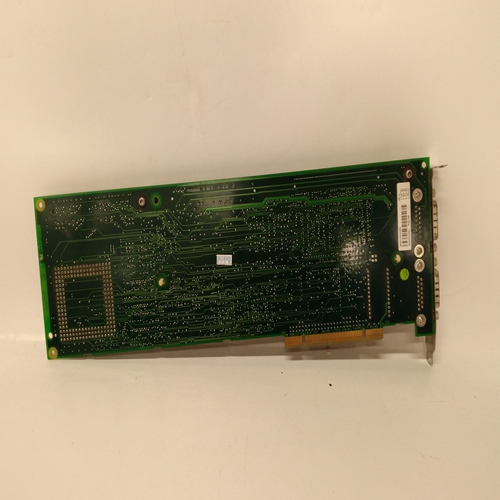

PU516A电路板
模拟输出模块提供隔离电流回路输出
其跟随传感器信号电平。输出电路是无源的电流控制元件，可在回路电压高达40V。
推荐的连接如下所示：模拟输出+0V+24V（10V至40V）
继电器/现场接口卡
05701-A-0326
05701-A-0327
05701-A-0328
05701-A-0329
可编程思维方式控制器
隔离模拟输出连接，电源来自：
可编程逻辑控制器31 32
单通道控制卡
05701-A-0301 4-20mA
05701-A-0302催化
配备模拟输出模块05701-A-0285
模拟输出可配置为0-20mA或4-20mA输出
模式。检查随系统提供的配置表，以：确定工厂配置的操作模式。操作模式
可以使用连接到工程的计算机轻松重新配置端口。有关更多信息，请联系Zellweger Analytics或您的本地代理。
模拟输出可以连接到电压输入设备
（例如：。图表记录器），包括与并将装置输入与电阻器并联。即。
使用100欧姆电阻器，并在图表上选择2V的输入范围录音机
继电器/现场接口卡远程输入连接
注意安全将超过32V的电压连接到远程输入可能对单通道控制卡造成永久性损坏。
有两个远程输入，分别为RESET和INHIBIT
可配置为活动高或活动低操作模式。检查随系统提供的配置表，用于确定工厂
配置的操作模式。可以重新配置操作模式
轻松使用连接到工程端口的计算机。联系Zellweger Analytics或您当地的代理商了解更多信息。
远程输入引脚的开关电平（启用时）为：
相对于直流系统0V大约+2V。输入
需要小于5mA的驱动电流，无论配置如何内部下拉至系统0V。
活动高远程输入可能未连接或可以连接
通过常开触点连接至+24V。远程输入将运行
每当触点闭合时。
有源低电平远程输入可通过正常连接至+24V
闭合接触。无论何时接触，远程输入都将工作
打开。不要让低电平输入处于未连接状态。
The Analogue Output Module provides an isolated current loop output
that follows the sensor signal level. The output circuit is a passive
current control element that can be operated with loop voltages up to
40V. The recommended connections are shown below:
Analogue Output +
0V
+24V
(10V to 40V)
Relay/Field Interface Card
05701-A-0326
05701-A-0327
05701-A-0328
05701-A-0329
Programmable
Logic
Controller
Isolated Analogue Output Connection with Power Sourced from
Programmable Logic Controller
31 32
Single Channel Control Card
05701-A-0301 4 - 20mA
05701-A-0302 Catalytic
Fitted with Analogue Output
Module 05701-A-0285
The analogue output can be configured for 0 - 20mA or 4 - 20mA output
modes. Check the configuration sheet supplied with the system to
determine the factory configured operating mode. The operating mode
can be reconfigured easily using a computer attached to the Engineering
Port. Contact Zellweger Analytics or your local agent for more information.
The analogue output can be connected to voltage input device (eg.
chart recorders) by including an external sense resistor in series with
the loop and connecting the device input in parallel with the resistor. ie.
Use a 100 ohm resistor and select an input range of 2V on the chart
recorder.
Relay/Field Interface Card
REMOTE INPUT CONNECTIONS
CAUTION
Connecting voltages in excess of 32V to the remote inputs may
cause permanent damage to the Single Channel Control Card.
There are two remote inputs, RESET and INHIBIT, which are individually
configurable for active high or active low operating modes. Check the
configuration sheet supplied with the system to determine the factory
configured operating modes. The operating mode can be reconfigured
easily using a computer attached to the Engineering Port. Contact
Zellweger Analytics or your local agent for more information.
The switching level of the remote input pins (when enabled) is
approximately +2V with respect to the dc system 0V. The inputs
require less than 5mA drive current and irrespective of configuration
are internally pulled down to system 0V.
Active high remote inputs may be left unconnected or can be connected
to +24V via a normally open contact. The remote input will operate
whenever the contact closes.
Active low remote inputs may be connected to +24V via a normally
closed contact. The remote input will operate whenever the contact
opens. Do not leave active low inputs unconnected.
