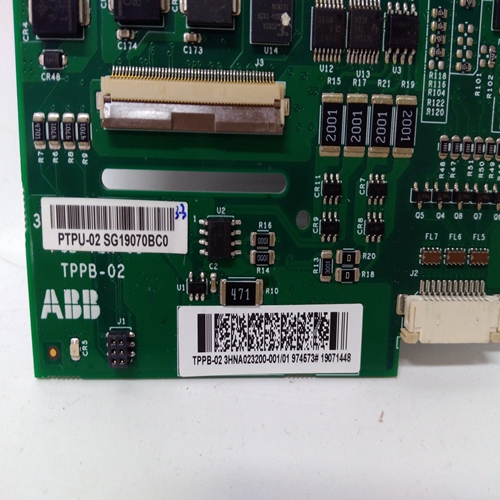

TPPB-02工控卡件
在中提供传感器和控制卡之间的连接与现场接口卡相同。此外，单极继电器为A1报警电平提供无电压触点输出，A2报警级别和故障条件。三重SPCO中继卡（零件号05701-A-0328）
5.4.1概述在中提供传感器和控制卡之间的连接与现场接口卡相同。此外，单极
继电器为A1报警电平提供无电压触点输出，A2报警等级、A3报警等级、故障和禁止条件。
5.4.2后部检修连接
在中提供传感器和控制卡之间的连接与现场接口卡相同。此外，单极继电器为2 x A1报警电平和2 x A2提供无电压触点输出报警级别、2 x A3报警级别、故障和禁止条件。高完整性继电器卡（零件号05701-A-0330）
5.6.1概述在中提供传感器和控制卡之间的连接与现场接口卡相同。此卡用于提供：主报警功能或主报警和单独报警的混合。这个板卡配有八个继电器，其中七个继电器完全可配置，同时第八个用于故障报警。继电器状态由监控控制卡，以确保继电器的正确操作。在故障，高完整性继电器卡的故障继电器断电。应始终监控故障继电器，以确保正确系统的操作。
此卡还提供其他功能，包括延迟功能打开或关闭报警继电器。
注：高完整性中继卡只能与MKII一起使用控制卡
工程卡
工程卡（零件号05701-A-0361）用于系统57机架提供公共接口，使用户
执行所有必需的功能，以调试和操作每个安装了控制卡。
f、 其电路组件、软件运行的自我验证操作和背板通信。前面板安装有一系列触觉用于操作各种功能的按钮，
提供机架电源和通信的LED状态和用于连接的迷你DIN插座
串行打印机、计算机或工程钥匙。工程钥匙用于解锁功能这可以改变控制卡的操作。
Provides connections between the sensor and the control card in
the same way as the Field Interface Card. In addition, single pole
relays provide voltage free contact outputs for the A1 alarm level,
A2 alarm level and fault condition.Triple SPCO Relay Card (Part Number 05701-A-0328)
5.4.1 General
Provides connections between the sensor and the control card in
the same way as the Field Interface Card. In addition, single pole
relays provide voltage free contact outputs for the A1 alarm level,
A2 alarm level, A3 alarm level, fault and inhibit conditions.
5.4.2 Rear Access Connections
Provides connections between the sensor and the control card in the
same way as the Field Interface Card. In addition, single pole relays
provide voltage free contact outputs for 2 x A1 alarm level, 2 x A2
alarm level, 2 x A3 alarm level, fault and inhibit conditions.
High Integrity Relay Card (Part Number 05701-A-0330)
5.6.1 General
Provides connections between the sensor and the control card in the
same way as the Field Interface Card. This card is used to provide
master alarm functions or a mixture of master and individual alarms. The
card is fitted with eight relays, seven of which are fully configurable while
the eighth is used for fault alarm. The relay states are monitored by the
control card to ensure correct operation of the relays. In the case of a
malfunction, the fault relay of the high integrity relay card de-energises.
The fault relay shall always be monitored in order to ensure correct
operation of the system.
Additional capabilities are available with this card including delayed
switch on or switch off of the alarm relays.
Note: The High Integrity Relay Card can only be used with MKII
Control Cards
ENGINEERING CARD
The Engineering Card (Part Number 05701-A-0361) is used on a
System 57 rack to provide a common interface that enables the user
to perform all the required functions to commission and operate each
fitted control card.
f. Self validation of the operation of its circuit components, software
operation and the backplane communications.
The front panel is fitted with a series of tactile
push-buttons for the operation of various functions,
LEDs to provide rack power and communications
status and a mini DIN socket for the connection of
a serial printer, computer or an engineering key.
The Engineering Key is used to unlock functions
that can alter the operation of a control card.
