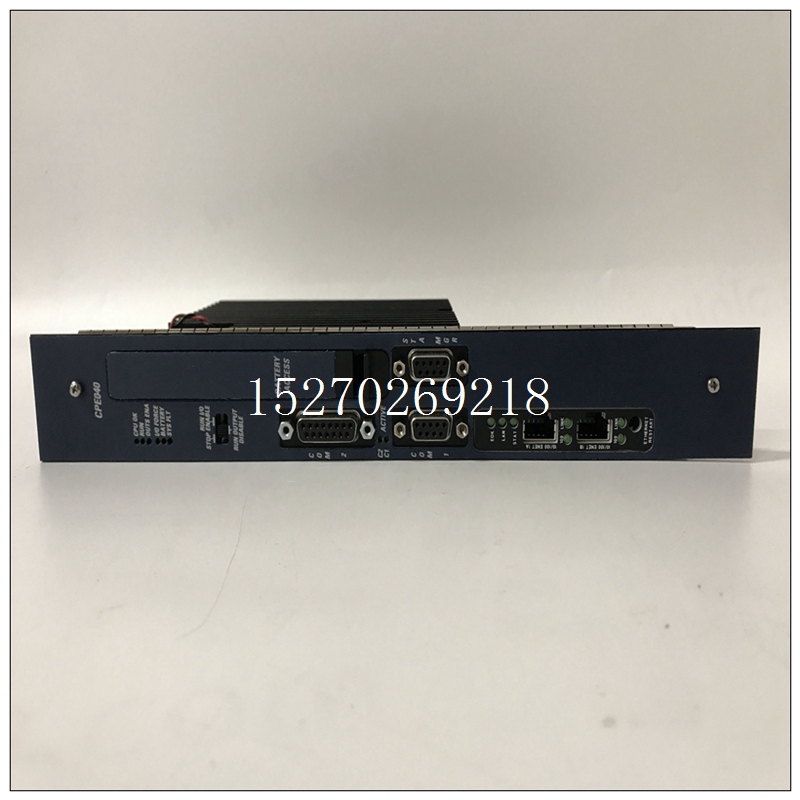

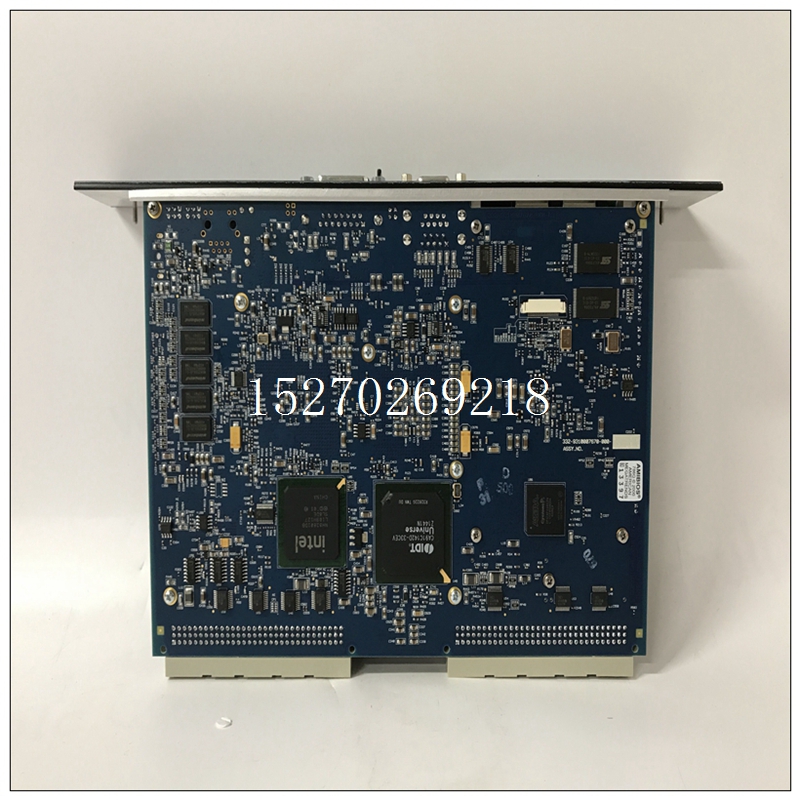

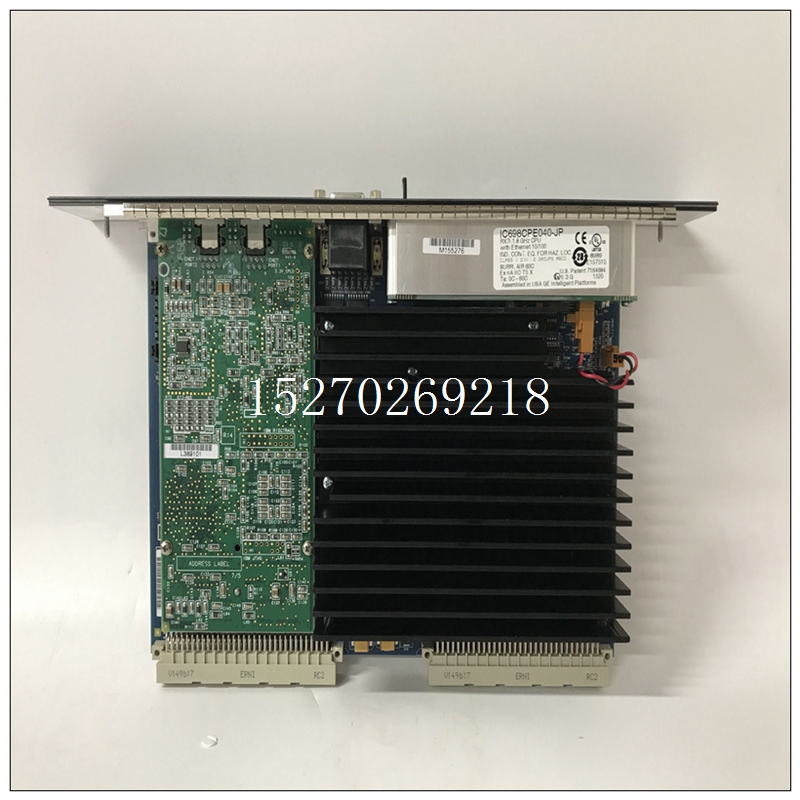

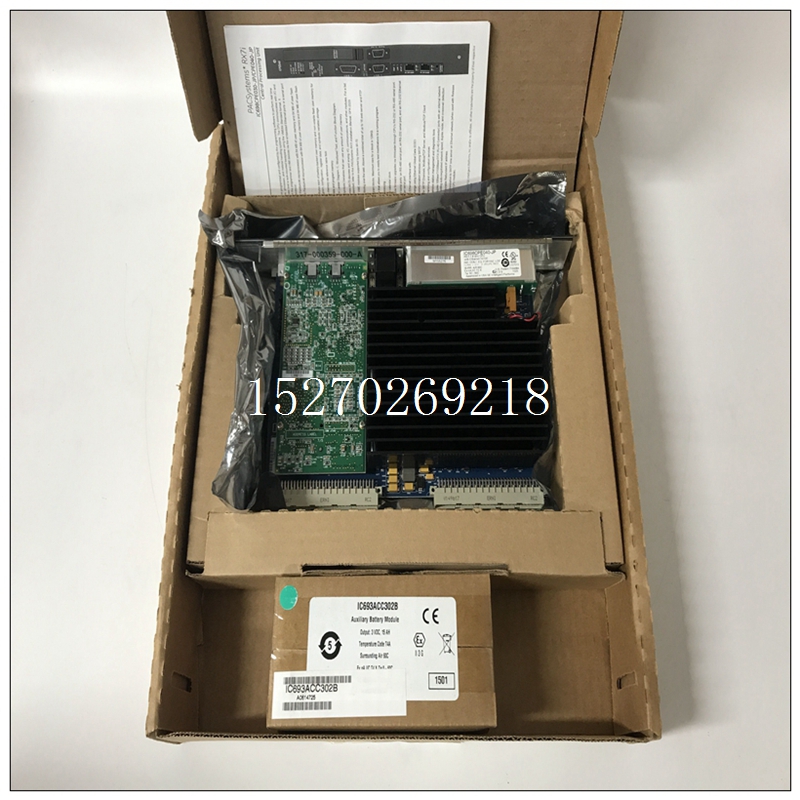

IC698CPE040-JP中文PDF用户手册,GE燃机模块
RX7i CPU由编程软件编程和配置，以实时执行机器、过程和物料处理系统的控制。CPU与输入/输出和使用VME64标准格式的机架安装背板上的智能选件模块。它通过嵌入式以太网端口或串行端口与程序员和HMI设备通信使用SNP从属协议。
CPE030:600MHz奔腾M微处理器，64 MB用户内存和64 MB用户闪存
CPE040:1800MHz奔腾M微处理器，64 MB用户内存和64 MB用户闪存
特征
IC698CPE040-JP中文PDF用户手册▪ 每个包含64 MB电池支持的用户内存和非易失性闪存用户内存，用于用户数据（程序、配置、寄存器数据和符号变量）存储。
▪ 通过参考表%W访问大容量内存。
▪ 可配置数据和程序内存。
▪ 用梯形图、C、结构化文本和功能框图编程。
▪ 自动定位的符号变量，可以使用任何数量的用户内存。
▪ 支持90-70系列离散和模拟输入/输出、通信和其他模块。对于列表关于支持的模块，请参阅PACSystems RX7i安装手册GFK-2223。
▪ 支持Series 90-70支持的所有VME模块。
▪ 通过web进行Rx7i数据监控。允许总共最多16个web服务器和FTP连接。
▪ 最多512个程序块。块的最大大小为128KB。
▪ 测试编辑模式，允许您轻松测试对正在运行的程序的修改。▪ 字内位引用
▪ 电池供电的日历时钟。
▪ 通过Winloader通过CPU的RS-232或RS-485串行端口升级CPU和模块固件。
▪ 三个隔离的串行端口：一个RS-485串行端口、一个RS-232串行端口和一个RS-232以太网station manager串行端口。
▪ 嵌入式以太网接口，具有：
使用以太网全局数据（EGD）进行数据交换
使用SRTP的TCP/IP通信服务
The RX7i CPUs are programmed and configured by the programming software to perform real time
control of machines, processes, and material handling systems. The CPU communicates with I/O and
smart option modules over a rack-mounted backplane using the VME64 Standard format. It
communicates with the programmer and HMI devices via the embedded Ethernet ports or a serial port
using SNP Slave protocol.
CPE030: 600MHz Pentium-M microprocessor with 64 MB of user memory and 64 MB of user flash
CPE040: 1800MHz Pentium-M microprocessor with 64 MB of user memory and 64 MB of user flash
Features
▪ Contains 64 Mbytes each of battery-backed user memory and non-volatile flash user memory for
user data (program, configuration, register data, and symbolic variable) storage.
▪ Access to bulk memory via reference table %W.
▪ Configurable data and program memory.
▪ Programming in Ladder Diagram, C, Structured Text, and Function Block Diagram.
▪ Auto-located Symbolic Variables that can use any amount of user memory.
▪ Support for Series 90-70 discrete and analog I/O, communications, and other modules. For a list
of modules supported, refer to the PACSystems RX7i Installation Manual, GFK-2223.
▪ Support for all VME modules supported by Series 90-70.
▪ Rx7i data monitoring over the web. Allows a combined total of up to 16 web server and FTP
connections.
▪ Up to 512 program blocks. Maximum size for a block is 128KB.
▪ Test Edit mode that allows you to easily test modifications to a running program.
▪ Bit-in-word referencing
▪ Battery-backed calendar clock.
▪ CPU and module firmware upgrades via Winloader through CPU’s RS-232 or RS-485 serial port.
▪ Three isolated serial ports: an RS-485 serial port, an RS-232 serial port, and an RS-232 Ethernet
station manager serial port.
▪ An embedded Ethernet interface with:
Data exchange using Ethernet Global Data (EGD)
TCP/IP communication services using SRTP
