GIDDINGS & LEWIS  SMP400控制器模块 PDF资料

1.产 品 资 料 介 绍：

产品概述

GIDDINGS & LEWIS SMP400 控制器模块是一款高性能数控系统核心处理单元。它用于协调机床或自动化设备的各类动作指令，处理来自输入模块、传感器及操作终端的信号，并生成精确控制指令驱动执行机构。SMP400模块以高速处理能力、稳定性和扩展性著称，是多轴数控机床和工业自动化系统的核心控制部件。

技术参数（典型）

• 处理能力：高速数字信号处理器，支持多轴运动控制

• 通讯接口：支持工业标准总线及G&L专用控制接口

• 输入/输出支持：可管理多通道数字量和模拟量信号

• 程序存储：内置高速存储器，可存储复杂加工程序和逻辑指令

• 扩展性：支持与伺服驱动器、执行控制板、输入分析模块等外设协同工作

• 实时性：毫秒级指令处理能力，满足高速、高精度加工需求

• 保护机制：过载、短路、过压及信号异常保护

• 安装方式：模块化设计，方便机柜或机架集成

应用场景

1. 多轴数控机床

• 控制主轴、进给轴及刀库，实现复杂加工动作和自动换刀功能。

2. 自动化生产线

• 协调装配、输送及分拣工位，实现动作同步与流程控制。

3. 工业机器人系统

• 管理多关节机械手及末端工具，实现精确轨迹控制与协同操作。

4. 包装与印刷机械

• 控制送料、切割及封装动作，保证高速高精度生产。

5. 纺织与特殊工艺设备

• 驱动卷绕、张力和走布系统，实现高精度生产与工艺控制。

6. 实验与测试平台

• 支持多通道伺服测试台或实验设备，实现复杂动作序列的精确执行。

英文资料：

Product Overview

The GIDINGS&LEWIS SMP400 controller module is a high-performance core processing unit for CNC systems. It is used to coordinate various action instructions of machine tools or automation equipment, process signals from input modules, sensors, and operation terminals, and generate precise control instructions to drive the execution mechanism. The SMP400 module is renowned for its high-speed processing capability, stability, and scalability, and is the core control component of multi axis CNC machine tools and industrial automation systems.

Technical parameters (typical)

Processing capability: High speed digital signal processor, supporting multi axis motion control

Communication interface: Supports industrial standard bus and G&L dedicated control interface

Input/output support: can manage multi-channel digital and analog signals

Program storage: Built in high-speed memory, capable of storing complex machining programs and logical instructions

Scalability: Supports collaborative work with external devices such as servo drives, execution control boards, input analysis modules, etc

Real time performance: millisecond level instruction processing capability, meeting the requirements of high-speed and high-precision machining

Protection mechanism: Overload, short circuit, overvoltage, and signal abnormality protection

Installation method: Modular design, convenient for cabinet or rack integration

Application scenarios

multi-axis nc machine tool

Control the spindle, feed axis, and tool magazine to achieve complex machining actions and automatic tool changing functions.

Automatic production line

Coordinate assembly, conveying, and sorting stations to achieve action synchronization and process control.

Industrial Robot System

Manage multi joint robotic arms and end tools to achieve precise trajectory control and collaborative operation.

Packaging and Printing Machinery

Control feeding, cutting, and packaging actions to ensure high-speed and high-precision production.

Textile and Special Craft Equipment

Drive winding, tension, and feeding systems to achieve high-precision production and process control.

Experimental and testing platform

Support multi-channel servo test benches or experimental equipment to achieve precise execution of complex action sequences.

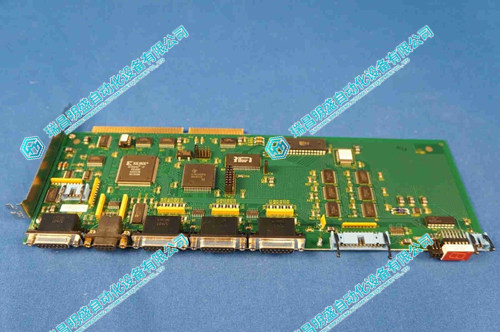

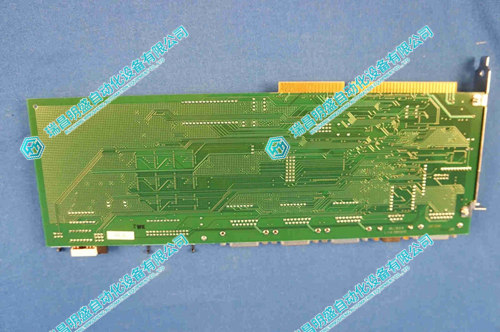

2.产      品      展      示
