GIDDINGS & LEWIS M.1017.3143步进输出模块 PDF资料
1.产 品 资 料 介 绍：
产品概述
GIDDINGS & LEWIS M.1017.3143 步进输出模块是一种专门用于运动控制系统的接口模块，主要负责为步进电机或相关执行装置提供驱动脉冲和方向信号。它通常作为数控系统或自动化控制系统中的核心部件之一，确保执行机构的定位精度和运行稳定性。
产品特点
高精度输出
支持高分辨率脉冲信号输出，保证步进电机实现精确的角度与位置控制。
多通道设计
可提供多路独立的脉冲输出通道，支持多轴同步或独立控制，适合复杂自动化系统。
灵活控制模式
兼容速度模式、位置模式等不同的步进电机控制需求，适应不同工艺要求。
实时响应
内部电路优化，能快速响应上位控制器的逻辑指令，保证动态运行稳定。
强抗干扰能力
工业级电路设计，具备较强的电磁兼容能力，适合在复杂电气环境中长期工作。
保护功能完善
集成过载、短路、信号异常保护机制，防止设备因故障导致损坏。
模块化结构
插卡式设计，便于在Giddings & Lewis控制平台上扩展或替换，提升系统可维护性。
状态监测
提供指示灯或诊断接口，方便工程人员快速判断工作状态与故障情况。
英文资料：
Product Overview
GIDINGS&LEWIS M.1017.3143 Stepper Output Module is an interface module specifically designed for motion control systems, primarily responsible for providing drive pulses and direction signals to stepper motors or related actuators. It is usually one of the core components in CNC systems or automation control systems, ensuring the positioning accuracy and operational stability of the actuator.
Product Features
High precision output
Support high-resolution pulse signal output to ensure precise angle and position control of stepper motors.
Multi-channel Design
Multiple independent pulse output channels can be provided, supporting multi axis synchronization or independent control, suitable for complex automation systems.
Flexible control mode
Compatible with different stepper motor control requirements such as speed mode and position mode, adapting to different process requirements.
Responsive
Internal circuit optimization, able to quickly respond to logical instructions from the upper controller, ensuring dynamic and stable operation.
Strong anti-interference ability
Industrial grade circuit design with strong electromagnetic compatibility, suitable for long-term operation in complex electrical environments.
Complete protection function
Integrate overload, short circuit, and signal abnormality protection mechanisms to prevent equipment damage caused by malfunctions.
Modular structure
Plug in card design facilitates expansion or replacement on the Giddings&Lewis control platform, improving system maintainability.
Condition Monitoring
Provide indicator lights or diagnostic interfaces to facilitate engineers in quickly assessing work status and fault conditions.

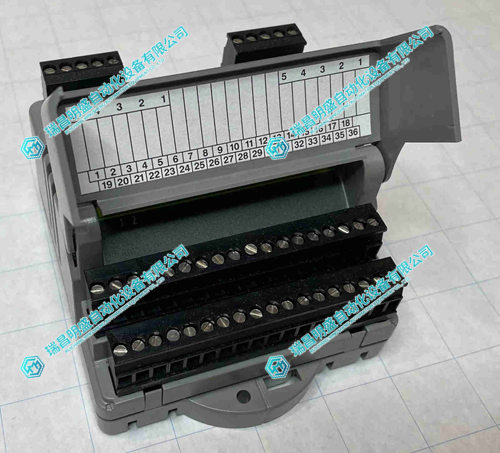

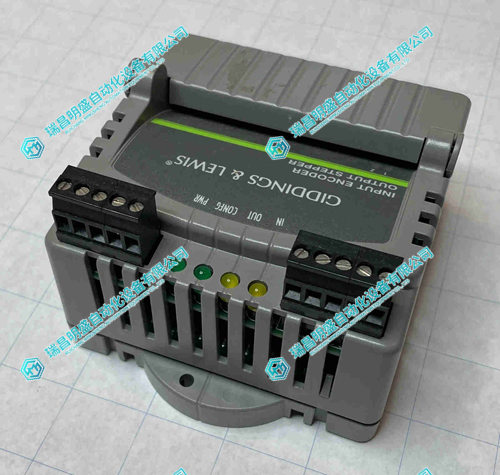

2.产 品 展 示
