Magnetek GPD515C-B011 交流驱动器 PDF资料
1.产 品 资 料 介 绍：
Magnetek GPD515C-B011 交流驱动器
产品特点
高性能矢量控制
支持开环矢量控制与V/f控制模式，适用于不同类型的感应电机；
提供优良的低速力矩输出和动态响应性能。
广泛的电压与功率适配性
适用于标准三相交流电源输入，型号 B011 一般对应 230V 等电压等级；
额定功率段匹配灵活，可驱动多种规格的交流电机。
内置 PID 控制器
可用于闭环过程控制，如恒压、恒速应用；
节省外部控制器成本，简化系统结构。
丰富的保护功能
内置过流、过压、欠压、过载、过热等保护机制；
提高系统可靠性，降低维护成本。
灵活的I/O配置
提供多路可编程数字输入/输出、模拟输入/输出；
便于与PLC、上位机或其它控制设备对接。
通讯功能支持
可选配通讯模块，支持Modbus等工业通讯协议；
实现远程监控、参数设定与故障诊断。
操作简便
面板带有LED显示与按键，支持参数快速设置与运行监控；
支持参数拷贝功能，便于批量设备配置。
紧凑耐用结构
紧凑型外壳设计，便于安装在控制柜内；
工业级耐温、防尘结构，适用于恶劣环境下的长期运行。
英文资料：
Magnetek GPD515C-B011 AC Drive
Product Features
High performance vector control
Supports open-loop vector control and V/f control modes, suitable for different types of induction motors;
Provide excellent low-speed torque output and dynamic response performance.
Wide voltage and power adaptability
Suitable for standard three-phase AC power input, model B011 generally corresponds to voltage levels such as 230V;
Flexible matching of rated power range, capable of driving various specifications of AC motors.
Built in PID controller
Can be used for closed-loop process control, such as constant voltage and constant speed applications;
Save external controller costs and simplify system structure.
Rich protection functions
Built in overcurrent, overvoltage, undervoltage, overload, overheating and other protection mechanisms;
Improve system reliability and reduce maintenance costs.
Flexible I/O configuration
Provide multiple programmable digital inputs/outputs and analog inputs/outputs;
Easy to interface with PLC, upper computer or other control devices.
Communication function support
Optional communication module, supporting industrial communication protocols such as Modbus;
Realize remote monitoring, parameter setting, and fault diagnosis.
easy to operate
The panel is equipped with LED display and buttons, supporting quick parameter setting and operation monitoring;
Support parameter copying function for batch device configuration.
Compact and durable structure
Compact shell design, easy to install inside the control cabinet;
Industrial grade temperature resistant and dust-proof structure, suitable for long-term operation in harsh environments.

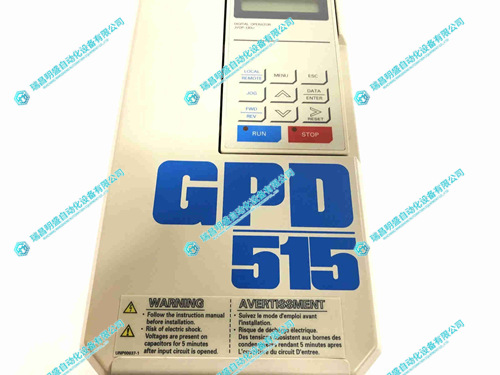

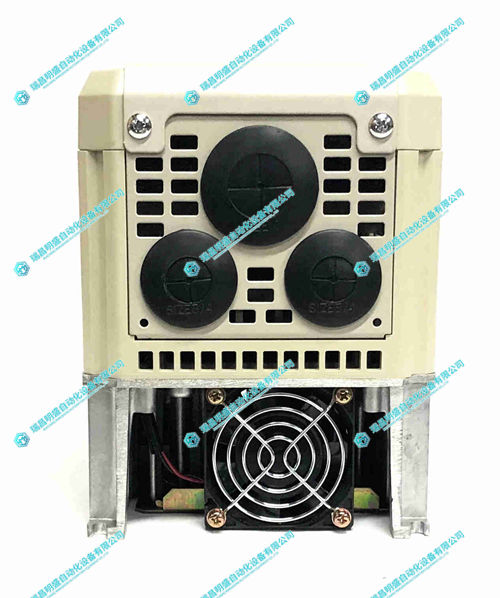

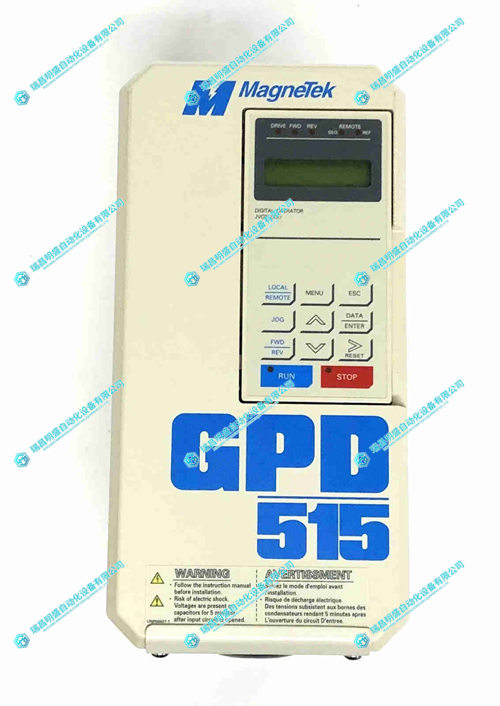

2.产 品 展 示
