Magnetek 1X00024H01电源模块 PDF资料
1.产 品 资 料 介 绍：
Magnetek 1X00024H01 电源模块
产品概述与应用领域
一、产品概述
Magnetek 1X00024H01 是一款工业级电源模块，型号通常标识为 WH1‑2FF，主要用于 Emerson / Westinghouse 的 Ovation 分布式控制系统（DCS）中。该模块通过将交流电输入转换为稳定的直流输出，为控制系统中的各种模块提供持续可靠的电力支持。
主要技术参数：
输入电压：100～240 VAC，50/60 Hz
输入电流：约 8～12 A（视输入电压而定）
输出电压：24 VDC
输出功率：最大约 500 W
应用类型：交流转直流（AC-DC）稳压电源模块
二、应用领域
发电厂控制系统
广泛用于热电、水电、核电等电厂中 Ovation 控制系统的主控电源。
提供24V稳定直流输出，保障控制模块、I/O 模块长期稳定运行。
水处理与环保工程
在污水处理厂、自来水厂中，为过程控制系统中的信号调理模块、执行机构供电。
适应工业现场长时间不间断运行需求。
工业自动化控制系统
应用于大型DCS控制系统，为工艺监控单元、通信模块和逻辑板卡提供隔离供电。
保证工艺数据采集与控制逻辑的连续性与可靠性。
石化、钢铁及重工行业
在流程复杂、环境要求高的行业中，为关键控制节点提供清洁稳定的电源保障。
维修与备件替换市场
虽为停产型号，但因其广泛应用于在役系统，仍被用于设备翻修、旧系统维护中的重要替代部件。
英文资料：
Magnetek 1X00024H01 power module
Product Overview and Application Fields
1、 Product Overview
Magnetek 1X00024H01 is an industrial grade power module, typically labeled as WH1-2FF, primarily used in Emerson/Westinghouse's Ovation distributed control system (DCS). This module provides continuous and reliable power support for various modules in the control system by converting AC input into stable DC output.
Main technical parameters:
Input voltage: 100-240 VAC, 50/60 Hz
Input current: approximately 8-12 A (depending on input voltage)
Output voltage: 24 VDC
Output power: up to approximately 500 W
Application type: AC to DC stabilized power module
2、 Application Fields
Power plant control system
Widely used as the main control power supply for Ovation control systems in thermal, hydroelectric, nuclear and other power plants.
Provide 24V stable DC output to ensure long-term stable operation of control modules and I/O modules.
Water Treatment and Environmental Protection Engineering
In sewage treatment plants and water treatment plants, power is supplied to the signal conditioning module and actuator in the process control system.
Adapt to the long-term uninterrupted operation requirements of industrial sites.
industrial automation control system
Applied to large-scale DCS control systems, providing isolated power supply for process monitoring units, communication modules, and logic boards.
Ensure the continuity and reliability of process data collection and control logic.
Petrochemical, steel and heavy industry
In industries with complex processes and high environmental requirements, provide clean and stable power supply guarantees for key control nodes.
Maintenance and spare parts replacement market
Although it is a discontinued model, it is still used as an important replacement component in equipment refurbishment and old system maintenance due to its widespread use in in-service systems.

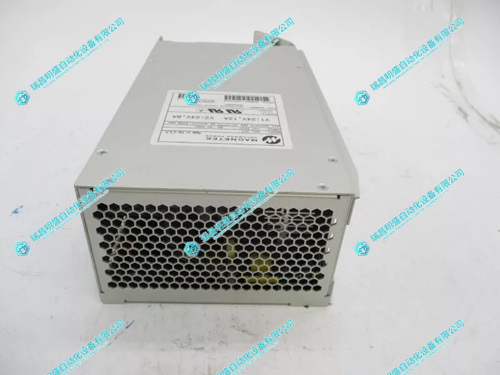

2.产 品 展 示
