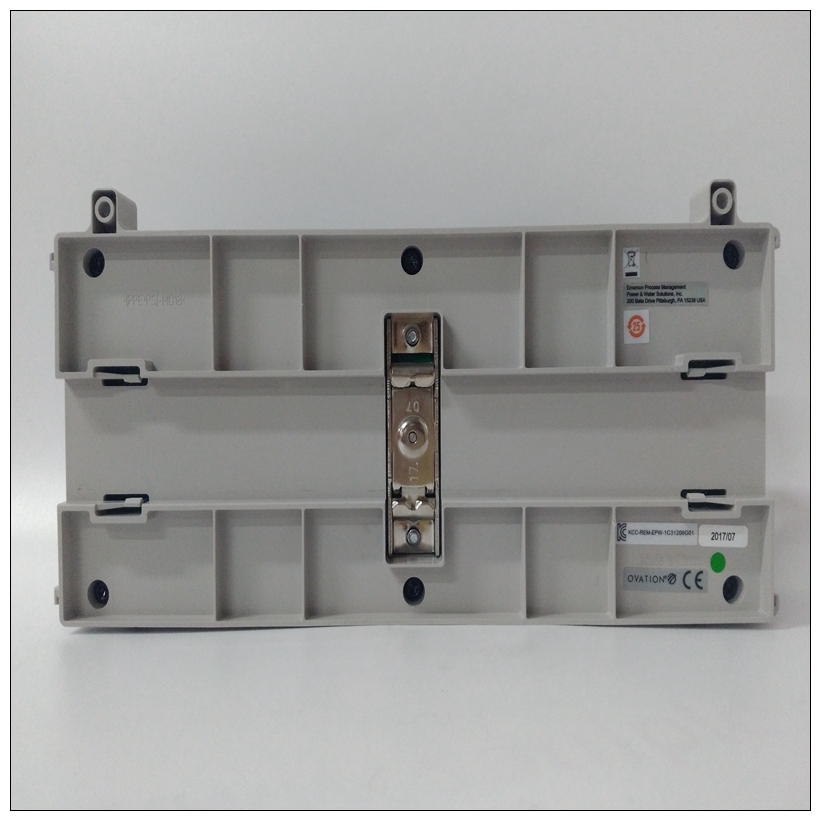

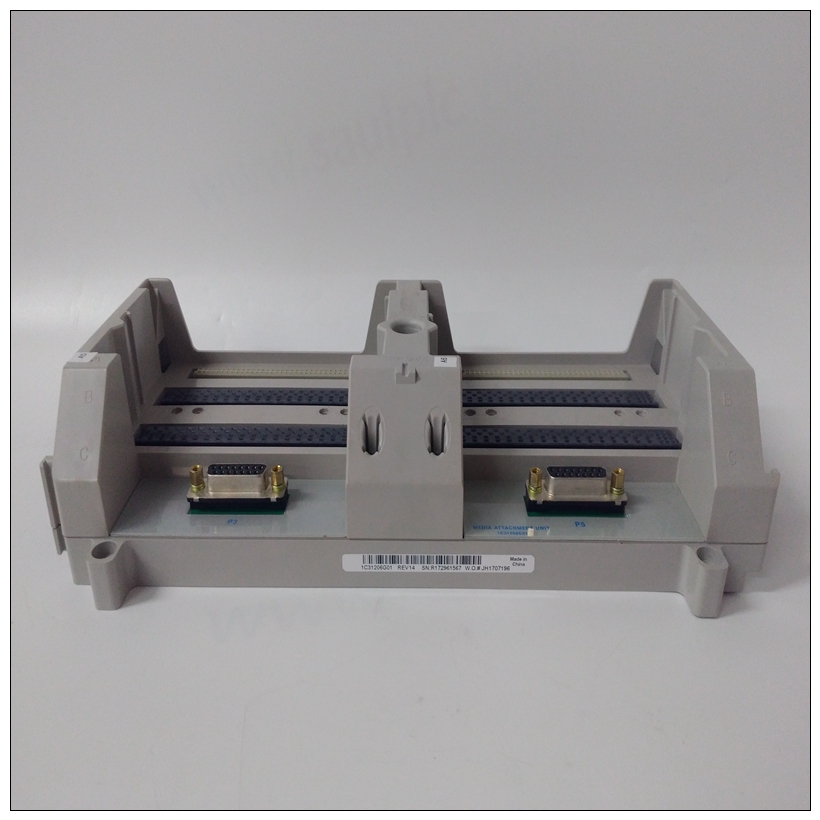

1C31206G01工控卡件,EMERSON使用参数
硬件安装以下各节讨论了夹层卡在MVME2603/2604基板，安装完成MVME2603/2604 VME模块组装和转换模块为VME机箱，以及与安装相关的系统注意事项。在安装MVME2603/2604之前，请确保串行端口和所有根据需要配置收割台跳线。
在大多数情况下，夹层卡是RAM200 ECC DRAM模块，可选PCI夹层（如适用）和可选载体板对于额外的PCI扩展（如果适用）-已在MVME2603/2604。用户可配置跳线可通过安装夹层。
1C31206G01工控卡件如果有必要在基板上安装夹层，请参阅以下各节简要介绍了安装过程。使用ESD腕带
摩托罗拉强烈建议您使用防静电腕带和安装或升级系统时使用导电泡沫垫。电子的组件，如磁盘驱动器、计算机板和内存模块，对静电放电（ESD）极为敏感。之后从其保护包装或系统中移除组件，将部件平放在接地的无静电表面上（在这种情况下对于电路板，元件面朝上）。不要将部件滑过任何表面
如果ESD站不可用，您可以避免因以下原因造成的损坏：佩戴防静电腕带进行静电放电（电子商店有售）连接到有源接地的。请注意，系统机箱如果拔掉插头，则可能不接地。
RAM200内存夹层安装RAM200 DRAM夹层安装在MVME2603/2604的顶部基板。要升级或安装RAM200夹层，请参阅图1-18并按以下步骤进行：1。将静电带系在手腕上。连接ESD的另一端将皮带系在底盘上作为接地。静电放电带必须固定在在整个过程中，您的手腕和地面。
2、执行操作系统关机。接通交流或直流电源断开并从系统中卸下交流电源线或直流电源线。根据需要卸下机箱或系统盖，以便访问VME模块。
Hardware Installation
The following sections discuss the placement of mezzanine cards on the
MVME2603/2604 base board, the installation of the complete
MVME2603/2604 VME module assembly and transition module into a
VME chassis, and the system considerations relevant to the installation.
Before installing the MVME2603/2604, ensure that the serial ports and all
header jumpers are configured as desired.
In most cases, the mezzanine cards—the RAM200 ECC DRAM module,
the optional PCI mezzanine (if applicable), and the optional carrier board
for additional PCI expansion (if applicable)—are already in place on the
MVME2603/2604. The user-configurable jumpers are accessible with the
mezzanines installed.
Should it be necessary to install mezzanines on the base board, refer to the
following sections for a brief description of the installation procedure.
Use ESD
Wrist Strap
Motorola strongly recommends that you use an antistatic wrist strap and a
conductive foam pad when installing or upgrading a system. Electronic
components, such as disk drives, computer boards, and memory modules,
can be extremely sensitive to electrostatic discharge (ESD). After
removing the component from its protective wrapper or from the system,
place the component flat on a grounded, static-free surface (and, in the case
of a board, component side up). Do not slide the component over any
surface.
If an ESD station is not available, you can avoid damage resulting from
ESD by wearing an antistatic wrist strap (available at electronics stores)
that is attached to an active electrical ground. Note that a system chassis
may not be grounded if it is unplugged.
RAM200 Memory Mezzanine Installation
The RAM200 DRAM mezzanine mounts on top of the MVME2603/2604
base board. To upgrade or install a RAM200 mezzanine, refer to
Figure 1-18 and proceed as follows:1. Attach an ESD strap to your wrist. Attach the other end of the ESD
strap to the chassis as a ground. The ESD strap must be secured to
your wrist and to ground throughout the procedure.
2. Perform an operating system shutdown. Turn the AC or DC power
off and remove the AC cord or DC power lines from the system.
Remove chassis or system cover(s) as necessary for access to the
VME modules.
