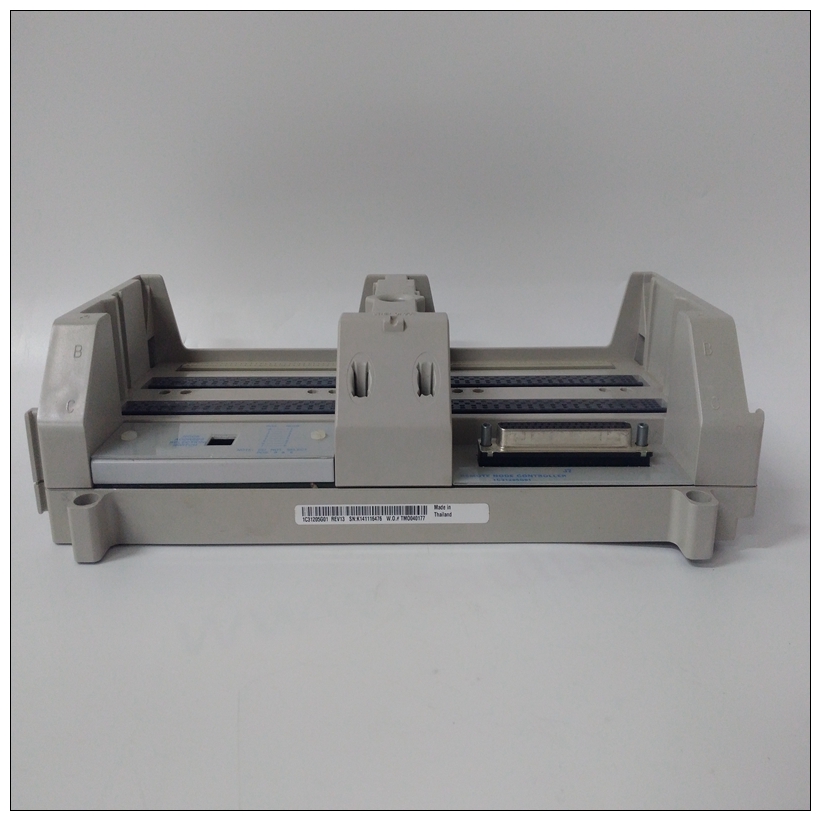

1C31205G01卡件,EMERSON使用教程
标头J2和J3用于配置串行端口3和串行端口4，分别与SIM卡选择配合使用。跳线就位时1-2，端口配置为DTE。当跨接线处于位置2-3时端口配置为DCE。端口的跳线设置应匹配相应SIM卡模块的配置。安装SIM卡模块时，请注意，报头上键入了方向正确。
有关准备过渡模块的更多信息，请参阅MVME761用户手册（见附录D，相关文件）。
接下来的三个图说明了MVME2603/2604基板和带互连和跳线的MVME761过渡模块
1C31205G01卡件每个串行端口上的DCE/DTE配置设置。P2适配器准备（三排）MVME761转换模块的P2适配器路由同步和异步串行、并行和以太网信号MVME761。P2适配器还有一个50针内螺纹接头（J2），用于携带来自MVME2603/2604的8位SCSI信号。运行SCSI设备，您可以安装额外配备的过渡模块带有SCSI端口，如MVME712B。MVME761 P2适配器的准备包括安装必要时，在收割台J1上跨接以启用SCSI端接电阻器。图1-16显示了跳线头、电阻器、保险丝、，和连接器。有关准备过渡模块和P2适配器，请参阅MVME761的用户手册（中列出附录D，相关文件），如有必要。P2适配器准备（五排）MVME761转换模块使用五行P2适配器进行传输同步和异步串行、并行和以太网信号来自MVME2600系列VME模块。P2适配器具有68针内螺纹连接器（J1），用于从MVME2600。（要运行SCSI设备，您可以安装可选的前端面板扩展，MVME761EXT，靠近MVME761。面板扩展同时提供8位和16位SCSI。）的P2适配器MVME761还通过连接器J3和J4支持PMC输入/输出。MVME761 P2适配器的准备包括安装必要时，在标头J5上跨接以启用SCSI端接电阻器。图1-17显示了跳线头和连接器的位置。
Headers J2 and J3 are used to configure Serial Port 3 and Serial Port 4,
respectively, in tandem with SIM selection. With the jumper in position
1-2, the port is configured as a DTE. With the jumper in position 2-3, the
port is configured as a DCE. The jumper setting of the port should match
the configuration of the corresponding SIM module.When installing the SIM modules, note that the headers are keyed for
proper orientation.
For further information on the preparation of the transition module, refer
to the user’s manual for the MVME761 (listed in Appendix D, Related
Documentation) as necessary.
The next three figures illustrate the MVME2603/2604 base board and
MVME761 transition module with the interconnections and jumper
settings for DCE/DTE configuration on each serial port.P2 Adapter Preparation (Three-Row)
The P2 adapter for the MVME761 transition module routes the
synchronous and asynchronous serial, parallel, and Ethernet signals to the
MVME761. The P2 adapter also has a 50-pin female connector (J2) that
carries 8-bit SCSI signals from the MVME2603/2604. To run SCSI
devices, you may install an additional transition module that is equipped
with a SCSI port, such as the MVME712B.
Preparation of the P2 adapter for the MVME761 consists of installing a
jumper on header J1 to enable the SCSI terminating resistors if necessary.
Figure 1-16 illustrates the location of the jumper header, resistors, fuse,
and connectors.For further information on the preparation of the transition module and the
P2 adapter, refer to the user’s manual for the MVME761 (listed in
Appendix D, Related Documentation) as necessary.P2 Adapter Preparation (Five-Row)
The MVME761 transition module uses a five-row P2 adapter to transfer
the synchronous and asynchronous serial, parallel, and Ethernet signals to
and from the MVME2600 series VME module. The P2 adapter has a
68-pin female connector (J1) that carries 16-bit SCSI signals from the
MVME2600. (To run SCSI devices, you may install an optional front
panel extension, MVME761EXT, next to the MVME761. The panel
extension supplies both 8- and 16-bit SCSI.) The P2 adapter for the
MVME761 also supports PMC I/O via connectors J3 and J4.
Preparation of the P2 adapter for the MVME761 consists of installing a
jumper on header J5 to enable the SCSI terminating resistors if necessary.
Figure 1-17 illustrates the location of the jumper header and connectors.
