HONEYWELL MC-PDOX02 51304487-150 数字输出模块 PDF资料
1.产 品 资 料 介 绍：
中文资料：
HONEYWELL MC-PDOX02 51304487-150 是一款数字输出模块，隶属于 Honeywell Experion PKS 或 TDC3000 系统架构下的 Process Manager（PM）控制系统平台，用于将控制器的逻辑控制信号转换为数字信号输出，驱动外部执行设备如电磁阀、继电器、报警器等。
一、基本信息概览
| 项目 | 内容 |
|---|---|
| 产品名称 | 数字输出模块（Digital Output Module） |
| 型号 | MC-PDOX02 |
| 部件号 | 51304487-150 |
| 制造商 | Honeywell |
| 系统平台 | TDC3000、Experion PKS、PlantScape |
| 模块类型 | 多通道数字输出模块 |
二、功能说明
主要功能：
将控制器发出的控制命令（如逻辑开/关）输出至现场设备，实现开关量驱动控制。通道数量：
通常支持 16 点数字输出（具体通道数视子型号而定）。输出形式：
开路集电极型输出、固态继电器输出或晶体管输出（需以技术手册确认）。负载驱动能力：
可直接驱动低功率负载（如 LED 指示灯、电磁继电器等）或中继驱动接触器。状态指示：
面板上配有 LED 指示灯，每个通道输出状态实时显示。
英文资料：
HONEYWELL MC-PDOX02 51304487-150 is a digital output module belonging to the Process Manager (PM) control system platform under the Honeywell Expert PKS or TDC3000 system architecture. It is used to convert the logic control signal of the controller into a digital signal output and drive external execution devices such as solenoid valves, relays, alarms, etc.
1、 Overview of Basic Information
Project Content
Product Name: Digital Output Module
Model MC-PDOX02
Part number 51304487-150
Manufacturer Honeywell
System platform TDC3000, Expert PKS, PlantScape
Module type: Multi channel digital output module
2、 Function Description
Main functions:
Output the control commands (such as logic on/off) issued by the controller to the on-site equipment to achieve switch driven control.
Number of channels:
Usually supports 16 point digital output (the specific number of channels depends on the sub model).
Output format:
Open collector type output, solid-state relay output, or transistor output (to be confirmed in the technical manual).
Load driving capability:
It can directly drive low-power loads (such as LED indicator lights, electromagnetic relays, etc.) or relay driven contactors.
Status indication:
The panel is equipped with LED indicator lights, and the output status of each channel is displayed in real-time.

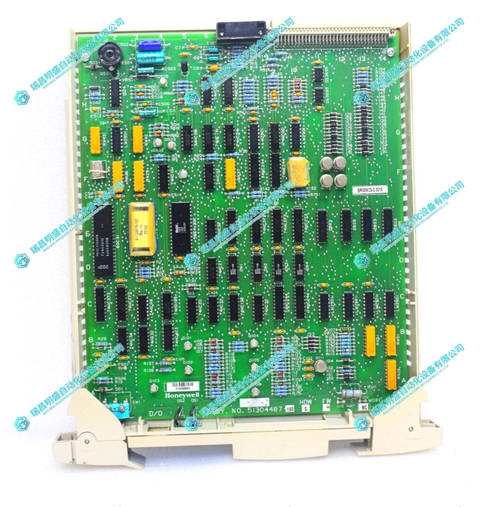

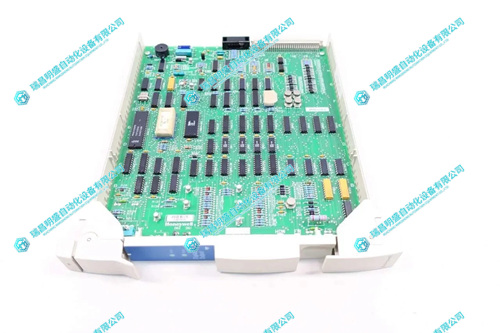

2.产 品 展 示
