Tokyo Electron 3208-000173-13接口模块 PDF资料
1.产 品 资 料 介 绍：
中文资料：
Tokyo Electron (TEL) 3208-000173-13 接口模块 — 产品应用领域详解
1. 半导体设备内部信号与控制通信枢纽
核心作用：3208-000173-13 接口模块作为控制系统与执行模块之间的通信桥梁，实现多种信号（如模拟量、数字量、串口通信等）传输与转换。
应用价值：它确保来自上位控制器的命令能够被底层执行机构准确接收与响应，同时将设备状态信息反馈至主控系统。
2. 模块间连接与扩展平台
系统集成：接口模块支持将多个控制单元、电源模块、传感器、执行器连接成统一系统，便于集中管理。
结构优势：模块化设计易于扩展或升级，可根据设备配置变化快速调整系统架构。
3. 支持多种工业通信协议
通信能力：可能支持 RS-232/RS-485、Ethernet、CAN、I²C 等工业通信标准，实现高速稳定的数据交换。
适配性强：可兼容不同类型控制器（PLC、工业计算机、定制控制卡）及现场设备，构建多层次分布式控制网络。
4. 典型应用场景
光刻机、CVD、Etcher 等主控系统接口模块：用于将主控制板与腔体控制、电机驱动、温控、气体流量控制等单元连接。
信号采集与状态反馈系统：采集设备各部分运行状态、故障信号、温度、压力、位置等参数并回传主控。
用户界面与人机交互接口：连接触摸屏、操作面板，实现设备本地控制与远程调试。
英文资料：
Tokyo Electron (TEL) 3208-000173-13 Interface Module - Detailed Explanation of Product Application Fields
1. Internal signal and control communication hub of semiconductor equipment
Core function: The 3208-000173-13 interface module serves as a communication bridge between the control system and the execution module, enabling the transmission and conversion of various signals (such as analog, digital, serial communication, etc.).
Application value: It ensures that commands from the upper level controller can be accurately received and responded to by the lower level executing mechanism, while feeding back device status information to the main control system.
2. Inter module connection and expansion platform
System integration: The interface module supports connecting multiple control units, power modules, sensors, and actuators into a unified system for centralized management.
Structural advantage: Modular design is easy to expand or upgrade, and can quickly adjust the system architecture according to changes in device configuration.
3. Support multiple industrial communication protocols
Communication capability: May support industrial communication standards such as RS-232/RS-485, Ethernet, CAN, I ² C, etc., to achieve high-speed and stable data exchange.
Strong adaptability: It is compatible with different types of controllers (PLC, industrial computer, customized control card) and field devices, and can build a multi-level distributed control network.
4. Typical application scenarios
Interface modules for main control systems such as lithography machines, CVD, Etcher, etc.: used to connect the main control board with cavity control, motor drive, temperature control, gas flow control, and other units.
Signal acquisition and status feedback system: Collect the operating status, fault signals, temperature, pressure, position and other parameters of each part of the equipment and transmit them back to the main control.
User interface and human-computer interaction interface: Connect touch screens and operation panels to achieve local control and remote debugging of devices.

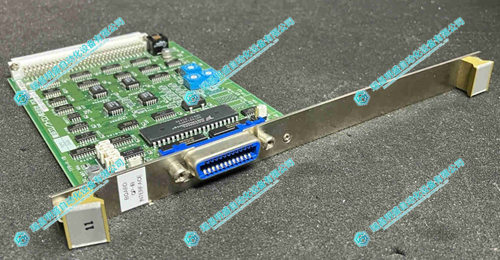

2.产 品 展 示
