Tokyo Electron 1B80-002808-11电源模块 PDF资料
1.产 品 资 料 介 绍：
中文资料：
TEL Tokyo Electron 1B80-002808-11 电源模块 是东京电子（Tokyo Electron）半导体制造设备中的关键供电组件，主要用于为设备各个控制单元及子系统提供稳定电源。以下是不含图案的详细产品应用说明：
一、产品定位
产品类型：电源模块（Power Supply Module）
制造商：Tokyo Electron（东京电子）
功能定位：为设备内部控制板、传感器、驱动单元等提供稳定的直流电源。
二、主要应用领域
半导体制造设备供电系统
广泛应用于Tokyo Electron 各类半导体工艺设备，如蚀刻机、沉积设备、清洗设备等。
控制系统供电
向主控模块、接口板、显示板等提供所需的多路电压输出。
传感器与执行机构供电
保证工艺参数采集和执行单元的正常工作。
设备保护与稳定运行
内置保护机制，防止过载、过压、短路等，确保设备长期稳定运行。
三、技术特点
适应工业电压输入，支持宽范围电源输入。
多路输出电压设计，满足不同模块用电需求。
高效稳压性能，减少电压波动对设备的影响。
具备过流、过压保护及短路保护功能。
工业级设计，抗干扰能力强，适合半导体洁净室环境。
英文资料：
The TEL Tokyo Electron 1B80-002808-11 power module is a key power supply component in Tokyo Electron's semiconductor manufacturing equipment, mainly used to provide stable power for various control units and subsystems of the equipment. The following are detailed product application instructions without patterns:
1、 Product positioning
Product type: Power Supply Module
Manufacturer: Tokyo Electron
Function positioning: Provide stable DC power supply for internal control boards, sensors, drive units, etc. of the equipment.
2、 Main application areas
Power supply system for semiconductor manufacturing equipment
Widely used in various semiconductor process equipment of Tokyo Electron, such as etching machines, deposition equipment, cleaning equipment, etc.
Control system power supply
Provide the required multiple voltage outputs to the main control module, interface board, display board, etc.
Sensor and actuator power supply
Ensure the normal operation of process parameter acquisition and execution units.
Equipment protection and stable operation
Built in protection mechanism to prevent overload, overvoltage, short circuit, etc., ensuring long-term stable operation of the equipment.
3、 Technical features
Adapt to industrial voltage input and support wide range power input.
Multi output voltage design to meet the power requirements of different modules.
Efficient voltage regulation performance, reducing the impact of voltage fluctuations on equipment.
Equipped with overcurrent, overvoltage protection, and short-circuit protection functions.
Industrial grade design, strong anti-interference ability, suitable for semiconductor cleanroom environment.

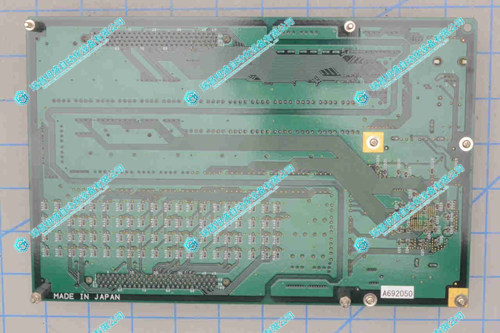

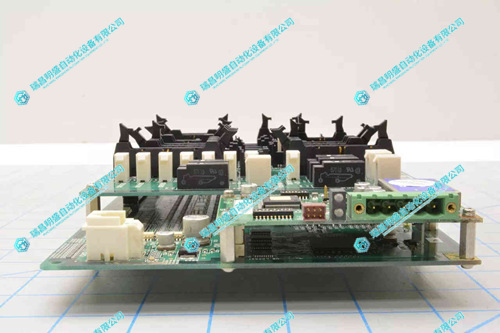

2.产 品 展 示
