Tokyo Electron 1981-600512-14电子显示器板 PDF资料
1.产 品 资 料 介 绍：
中文资料：
TEL Tokyo Electron 1981-600512-14 电子显示器板 是东京电子（Tokyo Electron）半导体设备中的关键人机界面（HMI）组件，主要用于设备状态显示和操作反馈。以下是不含图案的详细产品应用说明：
一、产品定位
产品类型：电子显示器板（Electronic Display Board）
制造商：Tokyo Electron（东京电子）
功能定位：作为半导体制造设备的人机交互界面，用于显示设备运行状态、报警信息和操作指令反馈。
二、主要应用领域
半导体制造设备监控
安装于 Tokyo Electron 各类设备中，如蚀刻机、清洗机、沉积设备，实时显示设备参数和状态。
操作界面显示
为设备操作者提供实时数据展示，包括温度、压力、流量等关键工艺参数。
报警与故障提示
显示设备异常、报警信息，辅助维护人员快速定位故障。
交互反馈与菜单导航
支持简单的按键输入反馈，便于设备参数调整和操作指令确认。
三、技术特点
采用液晶或LED显示技术，具备清晰的视觉效果。
支持多种字符和图形显示模式。
集成背光功能，适合不同环境亮度。
具备抗干扰设计，适应工业现场环境。
模块化设计，方便维护和更换。
英文资料：
TEL Tokyo Electron 1981-600512-14 electronic display board is a key human-machine interface (HMI) component in Tokyo Electron semiconductor equipment, mainly used for equipment status display and operation feedback. The following are detailed product application instructions without patterns:
1、 Product positioning
Product type: Electronic Display Board
Manufacturer: Tokyo Electron
Functional positioning: As a human-computer interaction interface for semiconductor manufacturing equipment, it is used to display the device's operating status, alarm information, and feedback on operation instructions.
2、 Main application areas
Semiconductor manufacturing equipment monitoring
Installed in various equipment of Tokyo Electron, such as etching machines, cleaning machines, and deposition equipment, it displays real-time device parameters and status.
Operation interface display
Provide real-time data display for equipment operators, including key process parameters such as temperature, pressure, and flow rate.
Alarm and fault prompt
Display device abnormalities and alarm information to assist maintenance personnel in quickly locating faults.
Interactive feedback and menu navigation
Support simple button input feedback, facilitating device parameter adjustment and operation instruction confirmation.
3、 Technical features
Adopting LCD or LED display technology, it has clear visual effects.
Supports multiple character and graphic display modes.
Integrated backlight function, suitable for different environmental brightness levels.
Equipped with anti-interference design, suitable for industrial site environment.
Modular design for easy maintenance and replacement.

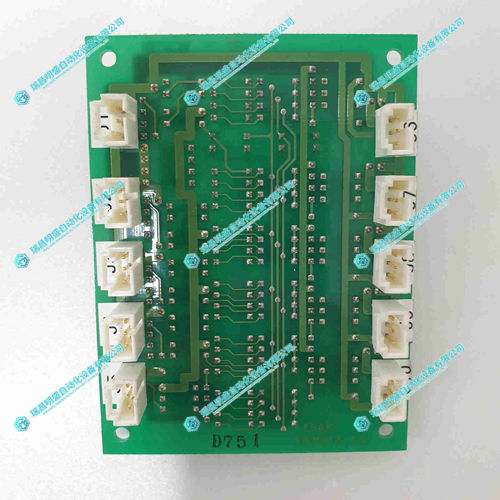

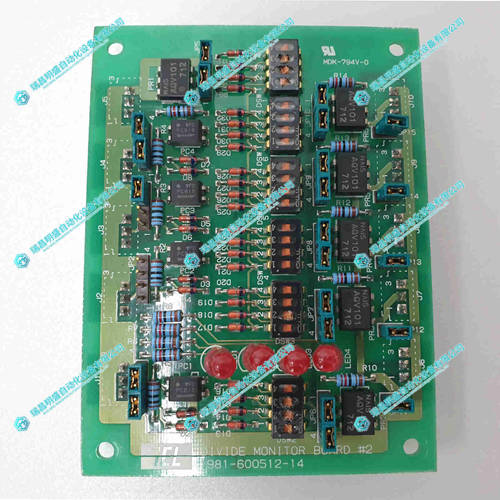

2.产 品 展 示
