TRICONEX AI2351 7400210-010 模块底座 PDF资料
1.产 品 资 料 介 绍：
中文资料：
TRICONEX AI2351 7400210-010 模块底座 是 TRICONEX 系列控制系统中一个重要的组件，它用于安装和支撑 TRICONEX AI2351 模块（模拟输入模块）。底座为模块提供了物理连接点，并确保稳定的电气接触和良好的散热性能。这个底座是 TRICONEX 系统中的一部分，能够为模块提供电力和数据传输支持，同时保证系统的安全运行。
主要特点
稳固的物理连接
底座提供坚固的物理安装点，确保 TRICONEX AI2351 模块 的安全固定，避免由于振动或外力干扰造成的松动或脱落。电气连接和数据传输
底座具备为模块提供必要的电力支持，并通过内部电路与控制系统建立连接，实现数据的传输和处理。兼容性强
底座设计考虑到 TRICONEX 系列的模块兼容性，能够与其他 TRICONEX 系列模块兼容安装，方便系统扩展和升级。散热设计
底座在设计时考虑到散热需求，帮助模块在高负荷工作时保持温度稳定，确保设备的长时间可靠运行。高可靠性和耐用性
采用高质量材料，确保底座能够承受恶劣的工业环境，如高温、湿气、振动等，提供长时间的稳定工作。
技术规格
| 项目 | 参数说明 |
|---|---|
| 型号 | TRICONEX AI2351 7400210-010 |
| 兼容模块 | TRICONEX AI2351 模块 |
| 安装方式 | DIN导轨安装 |
| 电压范围 | 24V DC |
| 工作温度 | -20°C 至 +60°C |
| 连接接口 | 提供电力和数据连接 |
| 材料 | 高强度耐用材料 |
| 散热设计 | 优化散热系统 |
英文资料：
The TRICONEX AI2351 7400210-010 module base is an important component in the TRICONEX series control system, used to install and support the TRICONEX AI2351 module (analog input module). The base provides physical connection points for the module and ensures stable electrical contact and good heat dissipation performance. This base is part of the TRICONEX system and can provide power and data transmission support for modules while ensuring the safe operation of the system.
main features
Stable physical connection
The base provides a sturdy physical mounting point to ensure the safe fixation of the TRICONEX AI2351 module, avoiding looseness or detachment caused by vibration or external interference.
Electrical connection and data transmission
The base provides necessary power support for the module and establishes a connection with the control system through internal circuits to achieve data transmission and processing.
Strong compatibility
The base design takes into account the compatibility of the TRICONEX series modules, allowing for compatible installation with other TRICONEX series modules, facilitating system expansion and upgrades.
Thermal Design
The base is designed with heat dissipation requirements in mind, helping the module maintain temperature stability during high load operation and ensuring long-term reliable operation of the equipment.
High reliability and durability
Using high-quality materials to ensure that the base can withstand harsh industrial environments such as high temperature, moisture, vibration, etc., providing long-term stable operation.
technical specifications
Project parameter description
Model Triconex AI2351 7400210-010
Compatibility module Triconex AI2351 module
Installation method: DIN rail installation
Voltage range 24V DC
Working temperature -20 ° C to+60 ° C
The connection interface provides power and data connections
High strength and durable materials
Optimizing heat dissipation design and cooling system

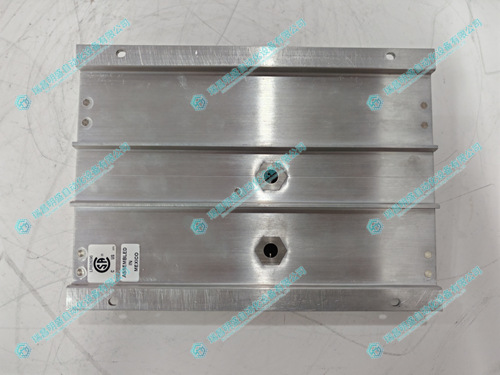

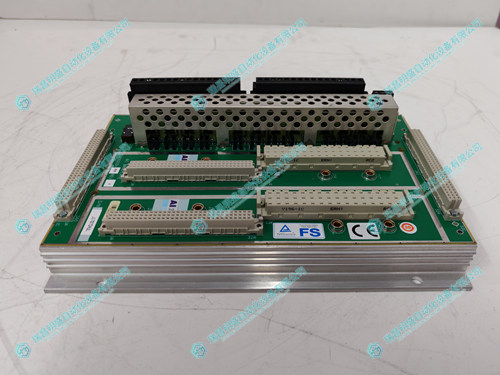

2.产 品 展 示
