FOXBORO FBM202 P0926EQ 热电偶输入模块 PDF资料
1.产 品 资 料 介 绍：
中文资料：
FBM202 P0926EQ 是 Foxboro I/A Series 系列中的一款热电偶输入模块，支持多种类型的热电偶信号（包括 K、J、T、E、B、R、S 等），可实现高精度的温度测量功能。模块用于过程控制系统中，特别适用于热过程监控、工业自动化、化工与电力行业的温度采集需求。
主要技术参数
| 项目 | 参数说明 |
|---|---|
| 输入类型 | 热电偶输入（K、J、T、E、B、R、S、N 等） |
| 输入通道数量 | 8 通道，隔离式热电偶输入 |
| 模拟输入范围 | 热电偶类型相关（自动补偿冷端温度） |
| 精度（典型） | ±0.1% 读数 ±1°C（具体取决于热电偶类型） |
| 隔离特性 | 通道对通道之间、电源与通道之间完全隔离 |
| 冷端补偿 | 内置冷端温度补偿（CJC） |
| 输入信号更新速率 | 50 毫秒（每通道） |
| 工作温度范围 | 0°C ～ 60°C（标准模块） |
| 安装方式 | 安装在 Foxboro FBM 通道底座（Baseplate）上 |
| 通讯方式 | 与 I/A Series 控制系统通过模块总线通信 |
| 模块电源 | 通过系统背板供电（24 VDC 公共母线） |
功能特点
多种热电偶兼容性：支持广泛的热电偶标准类型，适应各种工业温度测量需求
每通道独立隔离：每个输入通道之间电气隔离，提高系统抗干扰能力与安全性
高精度测量：内建冷端补偿，确保热电偶测量精度
模块化设计：热插拔模块，支持现场快速更换与维护
适配系统：完全兼容 Foxboro I/A Series 控制系统，可无缝集成
英文资料：
FBM202 P0926EQ is a thermocouple input module in the Foxboro I/A Series series, which supports multiple types of thermocouple signals (including K, J, T, E, B, R, S, etc.) and can achieve high-precision temperature measurement function. The module is used in process control systems and is particularly suitable for temperature acquisition needs in thermal process monitoring, industrial automation, chemical and power industries.
Main technical parameters
Project parameter description
Input type: thermocouple input (K, J, T, E, B, R, S, N, etc.)
Number of input channels: 8 channels, isolated thermocouple input
Analog input range related to thermocouple type (automatically compensates for cold junction temperature)
Accuracy (typical) ± 0.1% reading ± 1 ° C (depending on thermocouple type)
Isolation feature: The channel is completely isolated between channels and between power sources and channels
Cold end compensation with built-in cold end temperature compensation (CJC)
Input signal update rate of 50 milliseconds (per channel)
Working temperature range: 0 ° C to 60 ° C (standard module)
Installation method: Install on the Foxboro FBM channel base plate
Communication method with I/A Series control system through module bus communication
The module power is supplied through the system backplane (24 VDC common bus)
Functional Features
Multiple thermocouple compatibility: Supports a wide range of thermocouple standard types to meet various industrial temperature measurement needs
Independent isolation of each channel: Electrical isolation between each input channel improves the system's anti-interference ability and safety
High precision measurement: Built in cold end compensation ensures thermocouple measurement accuracy
Modular design: Hot swappable modules, supporting quick on-site replacement and maintenance
Adaptation System: Fully compatible with Foxboro I/A Series control system, seamlessly integrated

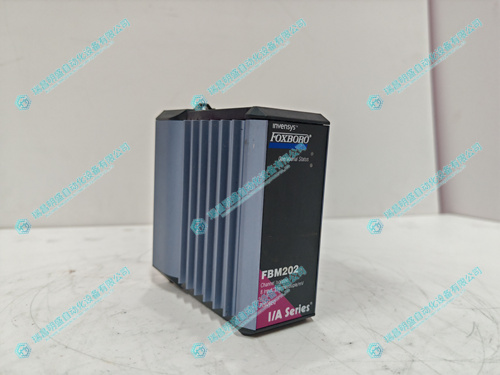

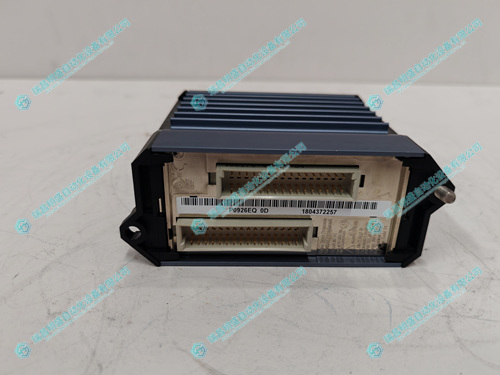

2.产 品 展 示
