GE 193X713AAG01仪器板 PDF资料
1.产 品 资 料 介 绍：
中文资料：
一、产品简介
GE（通用电气）193X713AAG01 是 193X 系列中的一款精密仪器信号处理板，主要用于工业自动化和发电厂控制系统中对信号的采集、转换、调理等处理。它通常作为接口层或测量层，提供模拟/数字信号的缓冲、隔离和放大功能。
二、核心功能
模拟信号处理：接收外部传感器、控制信号输入，进行滤波、放大、线性化等处理。
隔离保护：具备电气隔离功能，可有效保护后级控制模块免受干扰或浪涌损坏。
接口转换：可将输入信号格式（电流、电压等）转换为系统识别的标准信号。
信号调理：支持多路输入通道，并能根据不同通道特性进行独立调整（如增益、电平）。
精度高、稳定性强：适用于对测量精度和温漂控制要求较高的工业场合。
三、技术参数（典型值，参考用途）
供电电源：±15V DC（由主机提供）
输入信号：模拟电压（±10V）、电流（4–20mA 或 0–20mA）
输出信号：标准化模拟信号（0–10V、0–5V、4–20mA）
输入通道数量：多通道（一般为 4–8 路，取决于配置）
精度等级：±0.1% F.S.（典型）
响应时间：<5ms（取决于信号类型）
工作温度：-10°C ～ +60°C
安装方式：GE 标准 193X 插卡式结构
四、应用场景
热电厂、风电、燃气轮机等发电控制系统中的数据采集
LCI 调速系统中模拟参数采样
工业自动化系统中的控制接口板
大型变频或直流驱动系统中的反馈输入处理
过程控制系统中的远程 I/O 模块接口
英文资料：
Brief introduction
GE 193X713AAG01 is a precision instrument signal processing board in the 193X series, mainly used for signal acquisition, conversion, conditioning and other processing in industrial automation and power plant control systems. It usually serves as an interface layer or measurement layer, providing buffering, isolation, and amplification functions for analog/digital signals.
2、 Core functions
Analog signal processing: Receive input from external sensors and control signals, and perform filtering, amplification, linearization, and other processing.
Isolation protection: With electrical isolation function, it can effectively protect the downstream control module from interference or surge damage.
Interface conversion: It can convert input signal formats (current, voltage, etc.) into standard signals recognized by the system.
Signal conditioning: Supports multiple input channels and can be independently adjusted according to different channel characteristics (such as gain and level).
High precision and strong stability: suitable for industrial applications that require high measurement accuracy and temperature drift control.
3、 Technical parameters (typical values, reference purposes)
Power supply: ± 15V DC (provided by the host)
Input signal: Analog voltage (± 10V), current (4-20mA or 0-20mA)
Output signal: Standardized analog signal (0-10V, 0-5V, 4-20mA)
Number of input channels: Multi channel (usually 4-8 channels, depending on configuration)
Accuracy level: ± 0.1% F.S. (typical)
Response time:<5ms (depending on signal type)
Working temperature: -10 ° C to+60 ° C
Installation method: GE standard 193X plug-in card structure
4、 Application scenarios
Data acquisition in power generation control systems such as thermal power plants, wind power, and gas turbines
Simulated parameter sampling in LCI speed control system
Control interface board in industrial automation system
Feedback input processing in large-scale variable frequency or DC drive systems
Remote I/O module interface in process control system

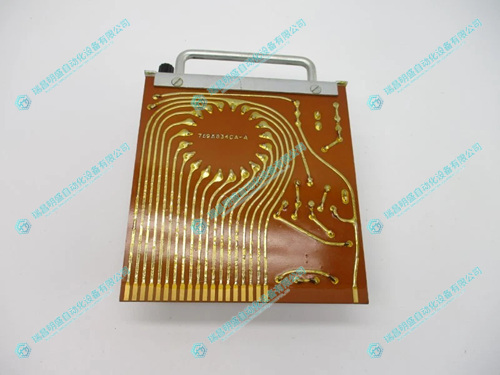

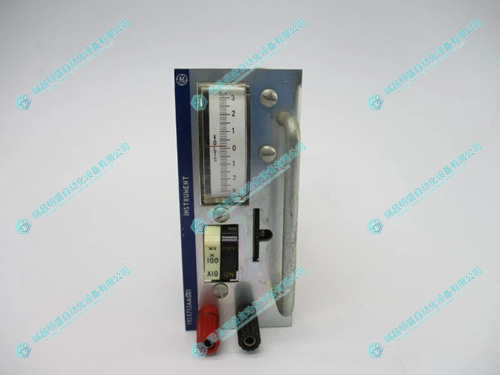

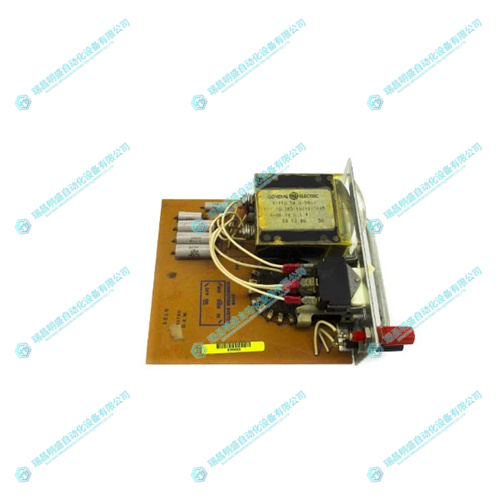

2.产 品 展 示
