GE 193X704ABG03隔离模块 PDF资料
1.产 品 资 料 介 绍：
中文资料：
GE 193X704ABG03 隔离模块技术说明
产品型号：193X704ABG03
产品名称：隔离模块 / 继电器输出卡
制造商：General Electric (GE)
所属系列：193X 系列工业控制板卡
产品类型：继电器隔离输出模块（Relay Isolation Output Module）
主要作用：对控制系统输出进行电气隔离，保护下游设备安全运行。
一、产品功能
GE 193X704ABG03 是一款具备继电器驱动功能的隔离型输出模块，通常安装在控制系统框架中，用于：
控制信号输出的电气隔离与放大；
控制接触器、执行器、信号灯等外部负载；
实现系统与外部设备之间的高压/低压隔离；
兼容 GE DC 驱动或 Speedtronic 等控制系统。
二、技术参数
| 参数项 | 描述说明 |
|---|---|
| 信号输入 | 数字控制信号（来自逻辑板，如TTL或24V DC） |
| 输出方式 | 多路干接点继电器输出，常开（NO）或常闭（NC） |
| 隔离方式 | 电磁继电器提供输入/输出间隔离，防止电气干扰传递 |
| 通道数量 | 一般为 4 或 8 路（视具体设计） |
| 电源需求 | ±15V DC / +24V DC（由系统母板供电） |
| 安装方式 | 插卡式（插入GE 193X机架或控制箱背板） |
| 接口类型 | 后部金手指连接，前部带有拉手（便于插拔） |
| 板卡尺寸 | GE 标准插卡尺寸（符合193X系列板卡统一格式） |
三、应用领域
电厂自动化系统：如汽轮机控制系统、励磁控制系统；
工业驱动系统：用于控制电机、泵、风机的启动和切换；
GE DC2000、EX2000 等旧型驱动器系统；
自动化联锁控制：作为远程输出信号的中继隔离保护；
信号隔离场合：保护PLC、控制器等低压逻辑系统免受高压回馈影响。
英文资料：
GE 193X704ABG03 Isolation Module Technical Description
Product model: 193X704ABG03
Product Name: Isolation Module/Relay Output Card
Manufacturer: General Electric (GE)
Series: 193X series industrial control board
Product type: Relay Isolation Output Module
Main function: To electrically isolate the output of the control system and protect the safe operation of downstream equipment.
1、 Product Features
GE 193X704ABG03 is an isolated output module with relay drive function, usually installed in the control system framework, used for:
Electrical isolation and amplification of control signal output;
Control external loads such as contactors, actuators, and signal lights;
Implement high/low voltage isolation between the system and external devices;
Compatible with control systems such as GE DC drive or Speedtronic.
2、 Technical parameters
Description of parameter items
Signal input digital control signal (from logic board, such as TTL or 24V DC)
Output mode: Multi channel dry contact relay output, normally open (NO) or normally closed (NC)
Isolation method: Electromagnetic relays provide input/output isolation to prevent electrical interference transmission
The number of channels is generally 4 or 8 (depending on the specific design)
Power requirement ± 15V DC/+24V DC (powered by the system motherboard)
Installation method: Plug in card (insert into GE 193X rack or control box backplane)
Interface type: Rear gold finger connection, front with handle (easy to plug in and out)
Card size GE standard card size (compliant with the unified format of 193X series cards)
3、 Application Fields
Power plant automation systems, such as turbine control systems and excitation control systems;
Industrial drive system: used to control the starting and switching of motors, pumps, and fans;
Old drive systems such as GE DC2000 and EX2000;
Automated interlocking control: as a relay isolation protection for remote output signals;
Signal isolation occasions: Protect low-voltage logic systems such as PLCs and controllers from high-voltage feedback effects.

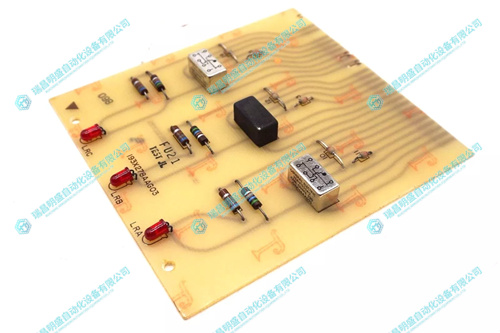

2.产 品 展 示
