GE 193X256AAG02电动电路板 PDF资料
1.产 品 资 料 介 绍：
中文资料：
193X256AAG02 是 GE（通用电气公司）生产的一款电动电路板，属于其工业驱动和控制系统的核心部件，主要用于调节和控制电机驱动器的运行状态，是 GE 193X 系列控制板中的一员。
主要功能包括：
控制电机驱动器的输出；
处理反馈信号（如电流、电压）；
协调控制系统的信号传输；
提供驱动系统的保护功能。
应用领域如下：
工业自动化控制系统
适用于各种工业场景下的自动化生产线，常见于纺织、造纸、冶金和钢铁行业，用于电动机驱动系统的控制与优化。风机与泵类控制系统
用于大型工业风机、水泵的驱动控制，通过精确调节转速，实现能效优化和运行稳定性。石油和化工行业
适合在高温、高压等严苛工况下使用，如输送泵或压缩系统的控制。轨道交通系统
应用于电动列车或地铁驱动控制系统中，配合驱动器管理车辆运行状态。发电厂控制系统
广泛用于燃气轮机、蒸汽轮机等发电设备控制，通常与 GE Mark 系列（如 Mark IV、Mark V）控制平台配合使用。
总结：
193X256AAG02 控制板在工业电机控制和自动化系统中具有重要作用，适用于各种高可靠性、高性能需求的应用环境，尤其是 GE 的大型驱动和能源设备系统。
英文资料：
193X256AAG02 is an electric circuit board produced by GE (General Electric), which is a core component of its industrial drive and control system. It is mainly used to regulate and control the operating status of motor drives and is a member of the GE 193X series control board.
The main functions include:
Control the output of the motor driver;
Processing feedback signals (such as current and voltage);
Coordinate the signal transmission of the control system;
Provide protection function for the drive system.
The application areas are as follows:
industrial automation control system
Suitable for automated production lines in various industrial scenarios, commonly used in the textile, papermaking, metallurgy, and steel industries, for the control and optimization of electric motor drive systems.
Fan and pump control system
Used for driving and controlling large industrial fans and water pumps, achieving energy efficiency optimization and operational stability through precise speed adjustment.
Petroleum and chemical industry
Suitable for use in harsh working conditions such as high temperature and high pressure, such as control of conveying pumps or compression systems.
rail transit system
Applied in the drive control system of electric trains or subways, it cooperates with the driver to manage the vehicle's operating status.
Power plant control system
Widely used for controlling power generation equipment such as gas turbines and steam turbines, it is usually used in conjunction with GE Mark series (such as Mark IV, Mark V) control platforms.
Summary:
The 193X256AAG02 control board plays an important role in industrial motor control and automation systems, suitable for various high reliability and high-performance application environments, especially GE's large-scale drive and energy equipment systems.

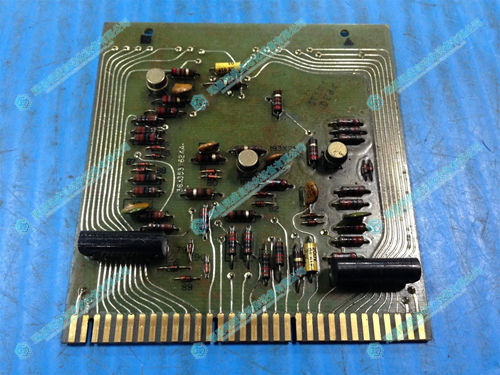

2.产 品 展 示
