ALCATEL LUCENT 3HE00229ABAF01以太网模块 PDF资料
1.产 品 资 料 介 绍：
中文资料：
ALCATEL LUCENT 3HE00229ABAF01 以太网模块
一、产品简介
3HE00229ABAF01 是 Alcatel-Lucent 推出的适用于 7450 ESS 系列交换平台的以太网模块，通常被称为 IOM-20G（输入/输出模块），主要用于数据转发与接口管理。该模块通过安装多种类型的 MDA（媒体依赖适配器）卡来提供不同类型的网络接口。
二、核心参数
产品型号：3HE00229ABAF01
模块类型：输入/输出模块（IOM）
最大吞吐量：20 Gbps
插槽类型：MDA 插卡接口
支持设备：Alcatel-Lucent 7450 ESS 系列
应用功能：控制转发面数据流，支持以太网服务接口
三、应用领域
电信运营商骨干网和汇聚层
用于大流量多业务接入场景，满足稳定性和高可用性的网络结构需求。城域网与企业网中核心设备
承担主干数据交换任务，连接多个业务子网和远端接入点。多业务承载平台
与不同的 MDA 插卡组合，提供千兆/万兆电口或光口，支持 VLAN、MPLS 等服务。数据中心网络接入层
用作高速数据中心边缘转发模块，适用于虚拟化和分布式架构环境。
四、产品特性
支持热插拔
高吞吐量，低延迟
与多种 MDA 卡兼容，可灵活配置端口
稳定可靠，适用于高强度运行环境
支持软件定义网络（SDN）架构扩展
英文资料：
ALCATEL LUCENT 3HE00229ABAF01 Ethernet module
Brief introduction
3HE00229ABAF01 is an Ethernet module developed by Alcatel Lucent for the 7450 ESS series switching platform, commonly known as IOM-20G (Input/Output Module), primarily used for data forwarding and interface management. This module provides different types of network interfaces by installing multiple types of MDA (Media Dependency Adapter) cards.
2、 Core parameters
Product model: 3HE00229ABAF01
Module type: Input/Output Module (IOM)
Maximum throughput: 20 Gbps
Slot type: MDA card insertion interface
Supported devices: Alcatel Lucent 7450 ESS series
Application function: Control the data flow of the forwarding surface and support Ethernet service interfaces
3、 Application Fields
Telecom operator backbone network and aggregation layer
Used for high traffic and multi service access scenarios, meeting the network architecture requirements of stability and high availability.
Core equipment in metropolitan area networks and enterprise networks
Undertake the task of backbone data exchange, connecting multiple business subnets and remote access points.
Multi service carrier platform
Combined with different MDA card combinations, it provides gigabit/ten gigabit electrical or optical ports and supports services such as VLAN and MPLS.
Data center network access layer
Used as a high-speed data center edge forwarding module, suitable for virtualization and distributed architecture environments.
4、 Product Features
Supports hot swapping
High throughput, low latency
Compatible with multiple MDA cards, allowing for flexible port configuration
Stable and reliable, suitable for high-intensity operating environments
Support software defined network (SDN) architecture extension

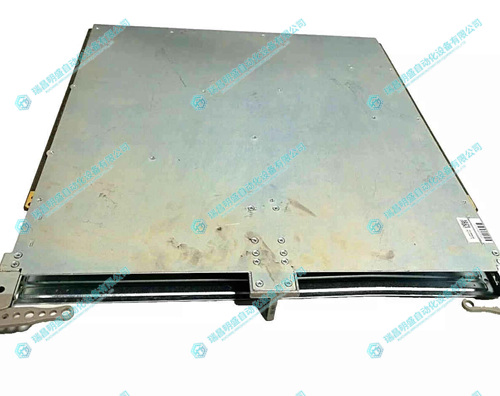

2.产 品 展 示
