PACIFIC SCIENTIFIC 33VM52-000-29 LDA-196-1000CE 旋转式编码器 PDF资料
1.产 品 资 料 介 绍：
中文资料：
PACIFIC SCIENTIFIC 33VM52-000-29 LDA-196-1000CE 旋转式编码器 是一款高精度的增量式编码器，主要用于伺服电机、工业自动化、CNC 机床、机器人以及其他需要精确位置控制的应用场景。
? 主要特点
✅ 高分辨率
- 采用 增量式编码 设计，提供 1000 PPR（每转脉冲数），适用于高精度运动控制。
- 具备精确的位置和速度反馈功能，有助于优化运动控制系统的性能。
✅ 坚固耐用
- 工业级设计，能够在恶劣环境下运行，适用于高振动、高温和高湿度的场合。
- 采用密封结构，具备良好的防尘和防油能力。
✅ 兼容性强
- 适用于 Pacific Scientific 伺服电机以及其他品牌的运动控制系统。
- 支持标准的 TTL/RS422 或 HTL 电气输出信号，易于与 PLC、伺服驱动器或运动控制器集成。
✅ 可靠的信号输出
- 具备 A、B、Z 三路信号输出（可选），支持方向识别和归零信号。
- 采用差分信号传输，抗干扰能力强，确保稳定运行。
✅ 多种安装方式
- 可采用轴套安装或法兰安装，适用于不同机械系统。
- 轴径标准，可与不同的传动系统匹配。
英文资料：
PACIFIC SCIENTIFIC 33VM52-000-29 LDA-196-1000CE rotary encoder is a high-precision incremental encoder mainly used in servo motors, industrial automation, CNC machine tools, robots, and other applications that require precise position control.
? main features
✅ high resolution
Adopting an incremental coding design, providing 1000 PPR (pulses per revolution), suitable for high-precision motion control.
Having precise position and velocity feedback functions helps optimize the performance of motion control systems.
✅ sturdy and durable
Industrial grade design, capable of operating in harsh environments, suitable for high vibration, high temperature, and high humidity situations.
Adopting a sealed structure, it has good dust and oil resistance capabilities.
✅ Strong compatibility
Suitable for Pacific Scientific servo motors and other brands of motion control systems.
Supports standard TTL/RS422 or HTL electrical output signals, making it easy to integrate with PLCs, servo drives, or motion controllers.
✅ Reliable signal output
Equipped with A, B, and Z signal outputs (optional), supporting direction recognition and zeroing signals.
Adopting differential signal transmission, with strong anti-interference ability, ensuring stable operation.
✅ Multiple installation methods
Can be installed with shaft sleeves or flanges, suitable for different mechanical systems.
The shaft diameter standard can be matched with different transmission systems.

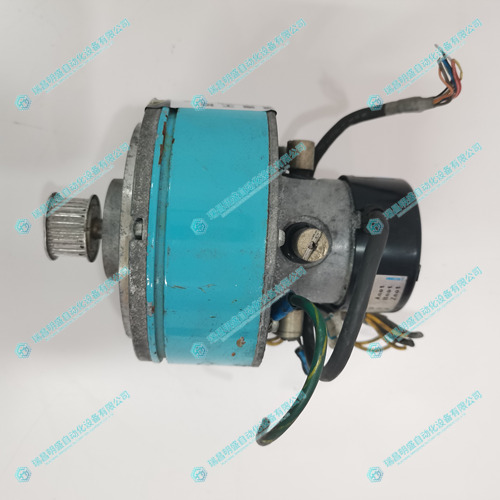

2.产 品 展 示
