ABB 2CSG299893R4052面板计量器 PDF资料
1.产 品 资 料 介 绍：
中文资料：
ABB 2CSG299893R4052 面板计量器 是一款高性能、多功能的电能计量设备，专门设计用于配电盘和工业控制系统中。它能够准确测量和监控电气参数，为能源管理和效率优化提供数据支持。
产品概述
主要功能：
- 提供实时电能参数测量，包括电压、电流、有功功率、无功功率和功率因数等。
- 支持单相和三相系统的电能计量。
- 数据记录和分析功能，用于能源优化和故障检测。
应用场景：
- 工业配电系统中的电能管理。
- 商业建筑的能源消耗监测。
- 可再生能源系统中的电力监控。
- 数据中心的用电优化。
技术参数
| 参数 | 描述 |
|---|---|
| 型号 | 2CSG299893R4052 |
| 供电电压 | AC 110-230 V 或 DC 24 V |
| 测量范围 | 支持单相和三相电网 |
| 电流测量范围 | 通常为 0-5 A（通过电流互感器） |
| 电压测量范围 | 0-500 V |
| 通信接口 | Modbus RTU 或 RS-485 |
| 显示类型 | LCD 或 LED 显示屏 |
| 精度等级 | 通常为 0.5 级或 1.0 级 |
| 工作温度 | -10°C 至 +55°C |
| 安装方式 | 面板嵌入式安装，支持 96 x 96 mm 标准尺寸 |
| 防护等级 | IP52（前面板防护等级） |
英文资料：
The ABB 2CSG299893R4052 panel meter is a high-performance, multifunctional electrical energy metering device specifically designed for use in distribution panels and industrial control systems. It can accurately measure and monitor electrical parameters, providing data support for energy management and efficiency optimization.
Product Overview
Main functions:
Provide real-time measurement of electrical energy parameters, including voltage, current, active power, reactive power, and power factor.
Support energy metering for single-phase and three-phase systems.
Data recording and analysis functions for energy optimization and fault detection.
Application scenarios:
Energy management in industrial power distribution systems.
Energy consumption monitoring of commercial buildings.
Electricity monitoring in renewable energy systems.
Optimization of power consumption in data centers.
technical parameter
Parameter description
Model 2CSG299893R4052
Supply voltage AC 110-230 V or DC 24 V
Measurement range supports single-phase and three-phase power grids
The current measurement range is usually 0-5 A (through a current transformer)
Voltage measurement range 0-500 V
Communication interface Modbus RTU or RS-485
Display type: LCD or LED display screen
The accuracy level is usually 0.5 or 1.0
Working temperature -10 ° C to+55 ° C
Installation method: Panel embedded installation, supporting standard sizes of 96 x 96 mm
Protection level IP52 (front panel protection level)

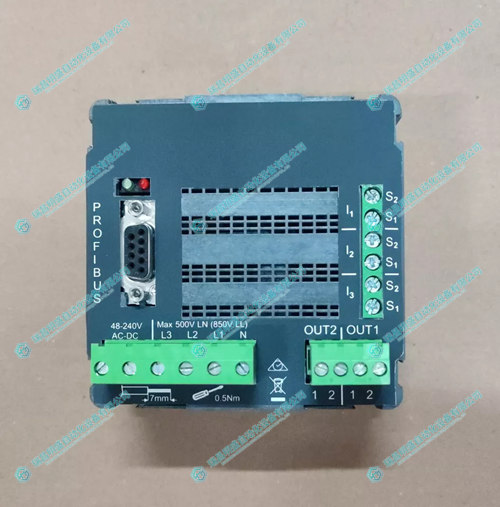

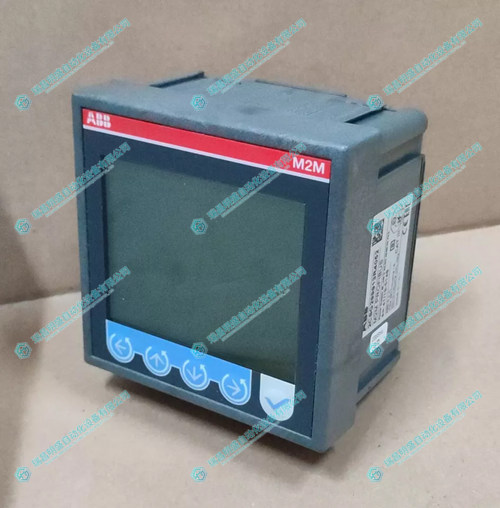

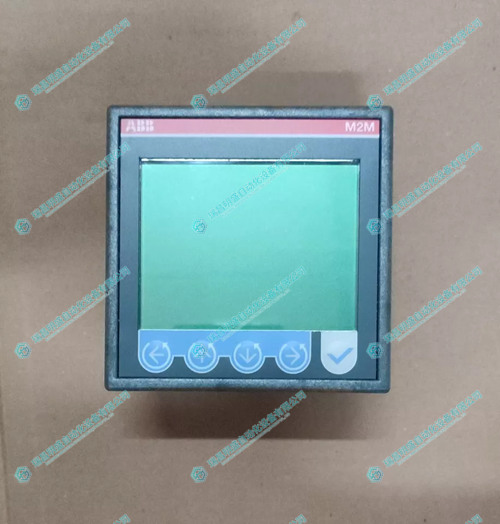

2.产 品 展 示
