EMERSON 4001S2T2B4 独立输入卡 PDF资料
1.产 品 资 料 介 绍：
中文资料：
EMERSON 4001S2T2B4 独立输入卡 是 Emerson 生产的一款用于工业自动化系统的独立输入模块。该模块设计用于采集现场设备的信号并将其转化为数字信号，便于后续的处理与控制。它广泛应用于各种工业自动化控制系统中，如过程控制、能源管理、自动化生产线等。
产品概述
- 产品型号：4001S2T2B4
- 品牌：Emerson
- 类型：独立输入卡
- 应用领域：过程控制、自动化生产线、监控系统、环境控制等。
技术规格
输入信号类型：
- 支持 数字输入 和 模拟输入，常见信号包括开关量信号（如开关、按钮）和模拟量信号（如温度、压力、流量等）。
- 可支持 4-20mA、0-10V、1-5V 等标准模拟信号输入。
输入通道数：
- 提供多种输入通道数量配置，常见为 4通道、8通道、16通道 输入方式，适应不同规模的系统要求。
- 每个输入通道通常具有独立的采集功能，可以单独配置。
输入信号范围：
- 输入信号的范围通常支持 0-20 mA、0-10V 或 1-5V 等范围，可根据用户的需求灵活调整。
- 输入精度通常较高，适合精密控制应用。
隔离性：
- 具有 电气隔离，防止由于外部电气干扰或接地问题导致系统损坏或信号误差。
- 提供 输入端与系统总线之间的隔离，提高抗干扰能力，确保系统稳定运行。
供电要求：
- 典型工作电压为 24V DC，符合工业自动化控制系统的标准电源要求。
工作温度范围：
- 模块设计可承受广泛的工作温度，通常为 -20°C 至 +60°C，适应不同环境下的安装和运行。
响应速度：
- 具有快速的响应速度，适合需要快速反馈控制的应用。
英文资料：
The EMERSON 4001S2T2B4 independent input card is an independent input module produced by Emerson for industrial automation systems. This module is designed to collect signals from on-site devices and convert them into digital signals for subsequent processing and control. It is widely used in various industrial automation control systems, such as process control, energy management, automated production lines, etc.
Product Overview
Product model: 4001S2T2B4
Brand: Emerson
Type: Independent Input Card
Application areas: process control, automated production lines, monitoring systems, environmental control, etc.
technical specifications
Input signal type:
Supports both digital and analog inputs, with common signals including switch signals (such as switches and buttons) and analog signals (such as temperature, pressure, flow, etc.).
Supports standard analog signal inputs such as 4-20mA, 0-10V, 1-5V, etc.
Number of input channels:
Provide multiple input channel configurations, commonly including 4-channel, 8-channel, and 16 channel input methods, to meet the requirements of systems of different scales.
Each input channel typically has independent acquisition capabilities and can be configured separately.
Input signal range:
The range of input signals usually supports 0-20 mA, 0-10V, or 1-5V, and can be flexibly adjusted according to user needs.
The input accuracy is usually high and suitable for precision control applications.
Isolation:
Equipped with electrical isolation to prevent system damage or signal errors caused by external electrical interference or grounding issues.
Provide isolation between the input terminal and the system bus to improve anti-interference capability and ensure stable system operation.
Power supply requirements:
The typical working voltage is 24V DC, which meets the standard power requirements of industrial automation control systems.
Working temperature range:
The module design can withstand a wide range of operating temperatures, typically from -20 ° C to+60 ° C, and is suitable for installation and operation in different environments.
Response speed:
It has a fast response speed and is suitable for applications that require fast feedback control.

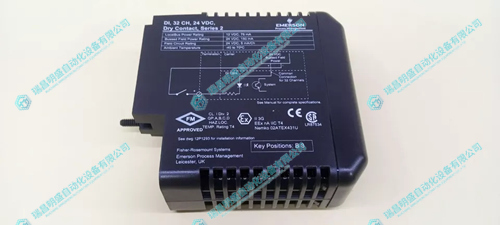

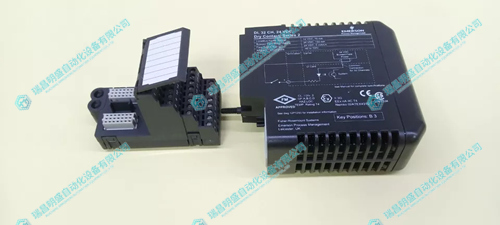

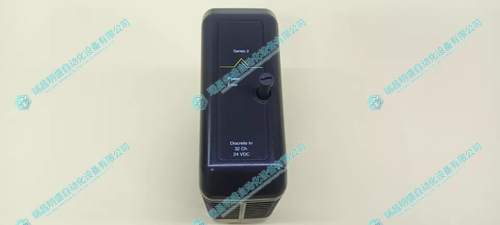

2.产 品 展 示
