Bently 3500/54 286566-01超速检测模块 PDF资料
1.产 品 资 料 介 绍：
中文资料：
Bently Nevada 3500/54 (286566-01) 超速检测模块 是一款专为工业旋转机械设计的监测和保护设备。它用于对机械设备的超速、零转速、以及转速范围内的性能进行实时监测，并提供可靠的报警和保护功能，广泛应用于汽轮机、压缩机和其他高速旋转设备中。
产品概述
| 属性 | 详情 |
|---|---|
| 型号 | 3500/54 |
| 订货号 | 286566-01 |
| 设备类型 | 超速检测模块（Overspeed Detection Module） |
| 系列 | Bently Nevada 3500 系列 |
| 主要功能 | 超速保护、零速检测、多速段监测 |
| 安装位置 | 安装于 3500 框架中，作为独立保护模块 |
关键特点
高效超速检测：
- 具备专用超速保护功能，通过精准监测防止设备发生灾难性故障。
- 支持多点设定的超速阈值，可灵活适配不同工况需求。
多通道设计：
- 提供 两个监测通道，每个通道独立工作，支持冗余或多点监控。
实时报警功能：
- 内置警告（Alert）和危险（Danger）报警机制，确保设备安全运行。
- 支持报警继电器输出，用于触发保护动作或通知控制系统。
兼容多种传感器：
- 支持与 Bently Nevada 的电涡流探头、磁性传感器和光学传感器配合使用。
模块化和可扩展性：
- 作为 3500 系列的一部分，与其他模块如 3500/22 通信模块无缝集成。
- 支持热插拔，无需停机即可更换模块，方便维护。
英文资料：
The Bently Nevada 3500/54 (286566-01) overspeed detection module is a monitoring and protection device designed specifically for industrial rotating machinery. It is used for real-time monitoring of mechanical equipment's overspeed, zero speed, and performance within the speed range, and provides reliable alarm and protection functions. It is widely used in steam turbines, compressors, and other high-speed rotating equipment.
Product Overview
Attribute Details
Model 3500/54
Order number 286566-01
Equipment type: Overspeed Detection Module
Bently Nevada 3500 Series
Main functions include overspeed protection, zero speed detection, and multi speed segment monitoring
Installed in the 3500 frame as an independent protection module
Key features
Efficient overspeed detection:
Equipped with dedicated overspeed protection function, it prevents catastrophic equipment failures through precise monitoring.
Support multi-point setting of overspeed threshold, which can flexibly adapt to different working conditions.
Multi channel design:
Provide two monitoring channels, each working independently and supporting redundant or multi-point monitoring.
Real time alarm function:
Built in Alert and Danger alarm mechanisms ensure the safe operation of the device.
Support alarm relay output, used to trigger protective actions or notify the control system.
Compatible with multiple sensors:
Supports use with Bently Nevada's eddy current probes, magnetic sensors, and optical sensors.
Modularity and Scalability:
As part of the 3500 series, it seamlessly integrates with other modules such as the 3500/22 communication module.
Support hot swapping, modules can be replaced without shutting down, making maintenance convenient.

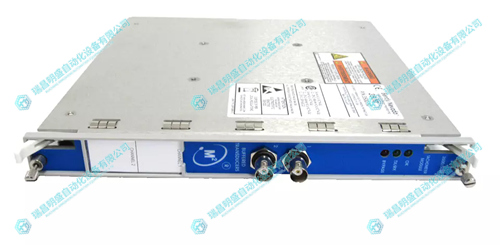

2.产 品 展 示
