Bently 3500/50 286566-02转速计模块 PDF资料
1.产 品 资 料 介 绍：
中文资料：
Bently Nevada 3500/50 (286566-02) 转速计模块 是 Bently Nevada 3500 系列中用于监测旋转机械转速的重要模块。它通过对转速、零转速和过速的监测，提供关键的保护和控制功能，适用于广泛的工业领域。
产品概述
| 属性 | 详情 |
|---|---|
| 型号 | 3500/50 |
| 订货号 | 286566-02 |
| 设备类型 | 转速计模块（Tachometer Module） |
| 系列 | Bently Nevada 3500 系列 |
| 主要功能 | 转速监测、过速保护、零速检测 |
| 安装位置 | 安装在 3500 框架中，可作为独立模块使用 |
关键特点
高精度转速监测：
- 能够监测旋转机械的实际转速，提供实时数据。
- 支持从 1 至 120,000 转/分钟的广泛测量范围。
多种报警功能：
- 支持零转速、过速和接近转速等警报。
- 可设置报警阈值，实现灵活的运行状态监控。
双通道设计：
- 提供两个完全独立的监测通道，适用于冗余或多点监测需求。
灵活输入：
- 支持各种传感器输入，如磁阻式传感器、涡流探头和光学传感器。
- 支持多种传感器输出信号类型，包括 TTL 和脉冲。
数据接口：
- 与 3500 系列系统无缝集成，可通过系统显示和配置工具访问数据。
模块化设计：
- 易于安装、配置和维护。
- 支持在线热插拔，无需停机即可更换模块。
英文资料：
The Bently Nevada 3500/50 (286566-02) tachometer module is an important module in the Bently Nevada 3500 series used to monitor the rotational speed of rotating machinery. It provides critical protection and control functions through monitoring of rotational speed, zero speed, and overspeed, and is suitable for a wide range of industrial fields.
Product Overview
Attribute Details
Model 3500/50
Order number 286566-02
Equipment type Tachometer Module
Bently Nevada 3500 Series
Main functions: speed monitoring, overspeed protection, zero speed detection
Installed in the 3500 frame, it can be used as an independent module
Key features
High precision speed monitoring:
Capable of monitoring the actual rotational speed of rotating machinery and providing real-time data.
Supports a wide measurement range from 1 to 120000 revolutions per minute.
Multiple alarm functions:
Support alarms for zero speed, over speed, and near speed.
Alarm thresholds can be set to achieve flexible monitoring of operational status.
Dual channel design:
Provide two completely independent monitoring channels, suitable for redundant or multi-point monitoring needs.
Flexible input:
Supports various sensor inputs, such as magneto resistive sensors, eddy current probes, and optical sensors.
Supports multiple types of sensor output signals, including TTL and pulse.
Data interface:
Seamless integration with the 3500 series system, data can be accessed through system display and configuration tools.
Modular design:
Easy to install, configure, and maintain.
Support online hot swapping, modules can be replaced without shutting down.

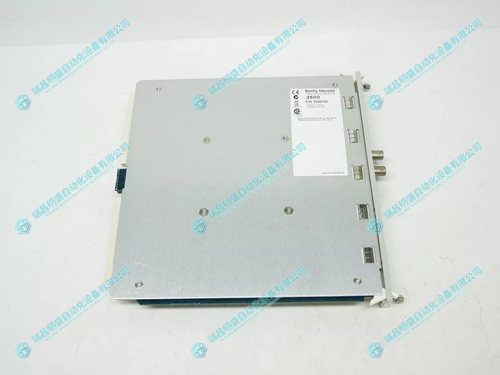

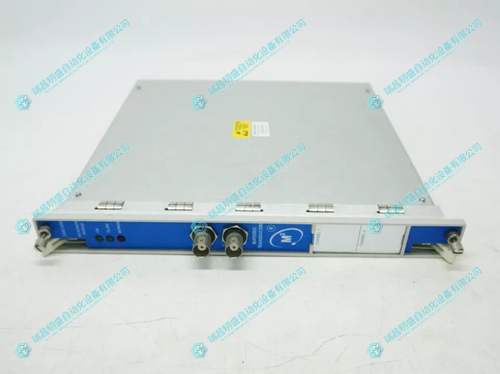

2.产 品 展 示
