BENTLY 3500/33 149986-01继电器模块 PDF资料
1.产 品 资 料 介 绍：
中文资料：
Bently Nevada 3500/33 149986-01 继电器模块是3500系列机械保护与监控系统中的重要组件，用于为工业设备提供灵活的报警和关机控制功能。该模块专为关键旋转设备和机械系统设计，能够在设备运行异常时发出报警或触发关机，以保护设备和人员安全。
产品主要特点
多通道设计
- 提供4个继电器输出通道，每个通道均可独立配置。
- 支持不同类型的报警条件，如高振动、超速、轴承温度异常等。
灵活配置
- 支持多种报警逻辑，包括警告（Alert）和关机（Danger）。
- 通过3500配置软件轻松实现逻辑编程，满足复杂监控需求。
模块化设计
- 占用一个机架插槽，方便安装、更换和系统扩展。
- 与其他3500模块完全兼容。
高可靠性
- 工业级设计，适用于高温、高湿等严苛环境。
- 支持冗余配置，提供系统更高的可靠性。
状态指示
- 配备LED指示灯，用于显示各继电器通道的工作状态。
- 便于快速诊断继电器触发和设备状态。
英文资料：
The Bently Nevada 3500/33 149986-01 relay module is an important component of the 3500 series mechanical protection and monitoring system, used to provide flexible alarm and shutdown control functions for industrial equipment. This module is designed specifically for critical rotating equipment and mechanical systems, capable of issuing alarms or triggering shutdowns in case of abnormal equipment operation to protect equipment and personnel safety.
Main features of the product
Multi channel design
Provide 4 relay output channels, each of which can be independently configured.
Support different types of alarm conditions, such as high vibration, overspeed, abnormal bearing temperature, etc.
Flexible configuration
Supports multiple alarm logics, including Alert and Danger.
Easily implement logic programming through 3500 configuration software to meet complex monitoring requirements.
Modular design
Occupy one rack slot for easy installation, replacement, and system expansion.
Fully compatible with other 3500 modules.
high reliability
Industrial grade design, suitable for harsh environments such as high temperature and high humidity.
Support redundant configuration and provide higher system reliability.
Status indication
Equipped with LED indicator lights to display the working status of each relay channel.
Easy to quickly diagnose relay triggering and equipment status.

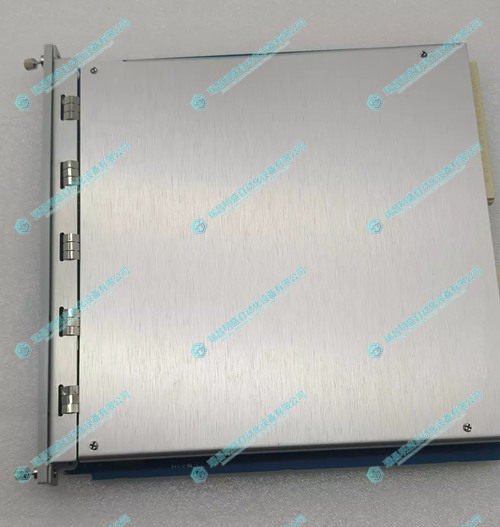

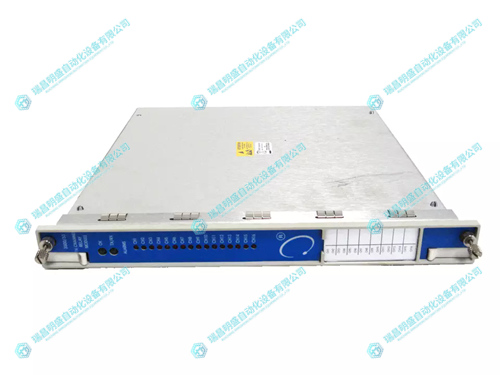

2.产 品 展 示
