GE IC3600SSKAIE驱动器板 PDF资料
1.产 品 资 料 介 绍：
中文资料：
IC3600SSKAIE驱动器板 是通用电气（GE）Mark系列控制系统中的关键组件之一，通常用于工业控制系统中的电机驱动或其他执行器的控制。该驱动器板能够将控制信号转换为适用于电机或执行器的驱动信号，确保系统精确的动作控制和操作稳定性。
功能与特点
电机或执行器驱动：
- 该板用于为电机、阀门、传动装置等执行器提供必要的驱动信号，控制其运行。
信号转换与放大：
- 将来自控制系统的低电平信号转换为可以驱动执行器的高功率输出信号。
- 包括模拟和数字信号的转换与放大，以适应不同类型的执行器。
多通道输出：
- 驱动器板通常支持多个输出通道，可以控制多个电机或执行器。
保护功能：
- 包含过载保护、短路保护和过热保护等安全功能，保障驱动系统在异常情况下的安全运行。
高效率与可靠性：
- 内部设计优化，能够高效地处理功率需求，同时具备较长的使用寿命和高可靠性，适应工业环境的挑战。
兼容性与模块化设计：
- 模块化设计方便与其他Mark系列模块集成，且与控制系统高度兼容，支持快速替换。
技术规格
输入电压：
- 驱动器板通常需要一个标准的电源输入，可能为24V DC 或更高的电压，视具体型号而定。
输出功率：
- 提供不同的功率输出，以适应控制不同大小的电机和负载。输出功率可能在几十瓦到数千瓦之间。
驱动信号类型：
- 驱动信号类型可能包括数字开关信号、模拟电压信号（如 4-20mA 或 0-10V）以及PWM（脉宽调制）信号等。
保护功能：
- 过载保护、短路保护、过温保护等，确保设备的安全性和稳定性。
接口类型：
- 标准插槽接口，通常与GE Mark系统中的其他模块兼容，安装简便。
工作环境：
- 工作温度：通常在-40°C 到 +70°C之间，适应极端环境。
- 湿度：5%-95%（无冷凝）。
物理尺寸：
- 设计为标准机架大小，与GE的Mark系统架构兼容。
英文资料：
The IC3600SSKAIE driver board is one of the key components in General Electric's (GE) Mark series control systems, typically used for controlling motor drives or other actuators in industrial control systems. This driver board is capable of converting control signals into drive signals suitable for motors or actuators, ensuring precise motion control and operational stability of the system.
Function and Features
Motor or actuator drive:
This board is used to provide necessary driving signals for actuators such as motors, valves, and transmission devices to control their operation.
Signal conversion and amplification:
Convert low-level signals from the control system into high-power output signals that can drive actuators.
Including the conversion and amplification of analog and digital signals to adapt to different types of actuators.
Multi channel output:
Driver boards typically support multiple output channels and can control multiple motors or actuators.
Protection function:
It includes safety functions such as overload protection, short circuit protection, and overheating protection to ensure the safe operation of the drive system in abnormal situations.
High efficiency and reliability:
Internal design optimization enables efficient handling of power requirements, while maintaining a long lifespan and high reliability, adapting to the challenges of industrial environments.
Compatibility and modular design:
Modular design facilitates integration with other Mark series modules and is highly compatible with control systems, supporting quick replacement.
technical specifications
Input voltage:
Driver boards typically require a standard power input, which may be 24V DC or higher depending on the specific model.
Output power:
Provide different power outputs to adapt to controlling motors and loads of different sizes. The output power may range from tens of watts to several kilowatts.
Drive signal type:
The types of driving signals may include digital switch signals, analog voltage signals (such as 4-20mA or 0-10V), and PWM (pulse width modulation) signals.
Protection function:
Overload protection, short circuit protection, over temperature protection, etc. ensure the safety and stability of the equipment.
Interface type:
Standard slot interface, usually compatible with other modules in GE Mark system, easy to install.
Work environment:
Working temperature: usually between -40 ° C and+70 ° C, suitable for extreme environments.
Humidity: 5% -95% (without condensation).
Physical dimensions:
Designed for standard rack size and compatible with GE's Mark system architecture.

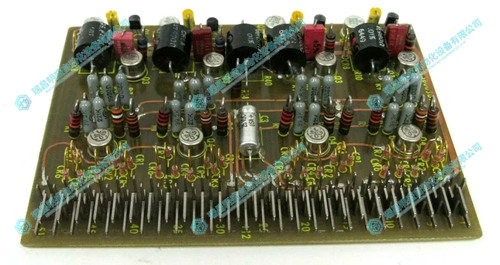

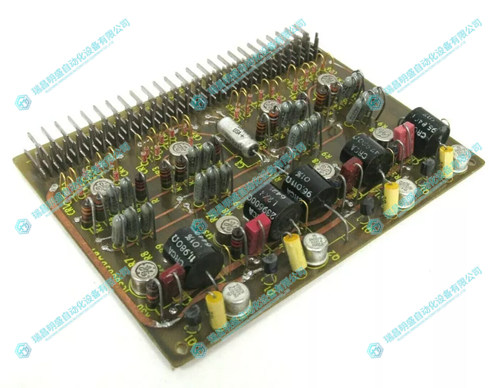

2.产 品 展 示
