GE IC3600AOACIF电路板 PDF资料
1.产 品 资 料 介 绍：
中文资料：
IC3600AOACIF电路板 是通用电气 (GE) Mark系列控制系统中的组件之一，可能用于燃气或蒸汽涡轮控制系统的信号处理和控制功能。这类电路板通常执行模拟输出功能，用于将系统内的数字信号转换为控制设备（如执行器或阀门）的模拟信号。
功能与特点
模拟输出：
- 该电路板将数字信号转换为模拟信号，用于控制外部设备。
- 支持多个模拟通道输出，通常用于执行精密控制。
模块化设计：
- 与其他 Mark 系列模块兼容，易于安装和替换。
高可靠性：
- 工业级设计，适应严苛环境，如高温、高湿和振动。
信号放大与隔离：
- 包含信号放大电路，确保输出信号强度。
- 电气隔离功能减少干扰，提高系统稳定性。
保护功能：
- 具有过载保护、过热保护和短路保护功能，保障系统安全。
技术规格（可能包括以下内容）
输出特性：
- 输出信号类型：模拟电压或电流（如 4-20mA、0-10V）。
- 通道数量：支持多通道输出。
供电要求：
- 输入电压：一般为 5V 或 24V DC。
接口类型：
- 标准化插槽接口，与主机系统无缝连接。
工作环境：
- 工作温度：-40°C 至 +70°C。
- 湿度范围：5%-95%（无冷凝）。
物理尺寸：
- 符合 GE Mark 系列机架安装标准。
英文资料：
The IC3600AOACIF circuit board is one of the components in the General Electric (GE) Mark series control system, which may be used for signal processing and control functions in gas or steam turbine control systems. These types of circuit boards typically perform analog output functions, used to convert digital signals within the system into analog signals for control devices such as actuators or valves.
Function and Features
Analog output:
This circuit board converts digital signals into analog signals for controlling external devices.
Supports multiple analog channel outputs, typically used for executing precision control.
Modular design:
Compatible with other Mark series modules, easy to install and replace.
High reliability:
Industrial grade design, suitable for harsh environments such as high temperature, high humidity, and vibration.
Signal amplification and isolation:
Contains signal amplification circuit to ensure output signal strength.
The electrical isolation function reduces interference and improves system stability.
Protection function:
It has overload protection, overheating protection, and short circuit protection functions to ensure system safety.
Technical specifications (which may include the following)
Output characteristics:
Output signal type: Analog voltage or current (such as 4-20mA, 0-10V).
Number of channels: Supports multi-channel output.
Power supply requirements:
Input voltage: usually 5V or 24V DC.
Interface type:
Standardized slot interface, seamlessly connected to the host system.
Work environment:
Working temperature:- 40 ° C to+70 ° C.
Humidity range: 5% -95% (without condensation).
Physical dimensions:
Compliant with GE Mark series rack installation standards.

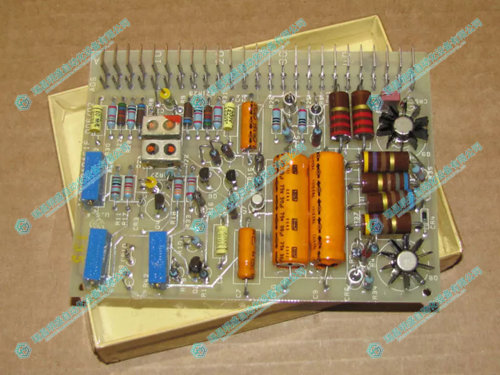

2.产 品 展 示
