ABB 70AB01c-ES控制板 PDF资料
1.产 品 资 料 介 绍：
中文资料：
ABB 70AB01c-ES 控制板 是一款用于工业自动化系统中的控制模块，专为实现高效、可靠的控制任务而设计。该控制板通常用于提供设备间信号处理、数据采集、系统管理以及实时控制等功能，是ABB自动化系统中的重要组成部分。
产品特点
高效控制功能
- 提供实时控制和数据处理能力，确保系统运行中的每个步骤都能高效执行。
灵活的信号处理
- 支持多种输入输出信号处理，包括数字、模拟、通信接口等，适应不同的自动化控制需求。
稳定可靠
- 采用高品质电子元件和抗干扰设计，能够在恶劣工业环境中稳定工作，保证系统的可靠性和长期运行。
模块化设计
- 支持与其他控制模块的兼容性，便于系统扩展和灵活配置，满足不同应用场景的需求。
快速响应能力
- 具有快速的响应时间，适合对实时性要求高的自动化控制系统，如生产线控制、过程控制等。
故障检测与自诊断
- 内置故障检测与自诊断功能，可以实时监控模块的运行状态，确保系统的健康与稳定。
易于集成与操作
- 与其他ABB自动化产品兼容，具备良好的互联互通能力，且安装、配置及维护方便。
技术规格
| 参数 | 规格 |
|---|---|
| 输入信号类型 | 支持数字、模拟、通信信号输入 |
| 输出信号类型 | 提供多种类型的数字、模拟输出信号 |
| 控制方式 | 实时控制，可配置多个控制策略 |
| 通信接口 | 支持工业通信协议，如Modbus、Profibus等 |
| 电源要求 | 24V DC（标准电源输入） |
| 功耗 | ≤ 10W |
| 工作温度范围 | -20°C 至 60°C |
| 储存温度范围 | -40°C 至 85°C |
| 防护等级 | IP20（适用于工业环境中较为常见的保护等级） |
| 安装方式 | DIN导轨安装 |
| 尺寸 | 紧凑型设计，适合标准机柜或配电箱安装 |
英文资料：
The ABB 70AB01c-ES control board is a control module designed for efficient and reliable control tasks in industrial automation systems. This control board is typically used to provide functions such as signal processing, data acquisition, system management, and real-time control between devices, and is an important component of ABB automation systems.
Product Features
Efficient control function
Provide real-time control and data processing capabilities to ensure efficient execution of every step in system operation.
Flexible signal processing
Support multiple input and output signal processing, including digital, analog, communication interfaces, etc., to meet different automation control requirements.
Stable and reliable
Adopting high-quality electronic components and anti-interference design, it can work stably in harsh industrial environments, ensuring the reliability and long-term operation of the system.
Modular design
Support compatibility with other control modules, facilitate system expansion and flexible configuration, and meet the needs of different application scenarios.
Rapid response capability
It has fast response time and is suitable for automation control systems with high real-time requirements, such as production line control, process control, etc.
Fault detection and self diagnosis
Built in fault detection and self diagnosis functions can monitor the real-time operation status of modules, ensuring the health and stability of the system.
Easy to integrate and operate
Compatible with other ABB automation products, with good interconnectivity, and easy installation, configuration, and maintenance.
technical specifications
Parameter specifications
Input signal types support digital, analog, and communication signal input
Output signal types provide multiple types of digital and analog output signals
Real time control with configurable multiple control strategies
The communication interface supports industrial communication protocols such as Modbus, Profibus, etc
Power requirement 24V DC (standard power input)
Power consumption ≤ 10W
Working temperature range -20 ° C to 60 ° C
Storage temperature range -40 ° C to 85 ° C
Protection level IP20 (applicable to common protection levels in industrial environments)
Installation method: DIN rail installation
Compact size design, suitable for installation in standard cabinets or distribution boxes

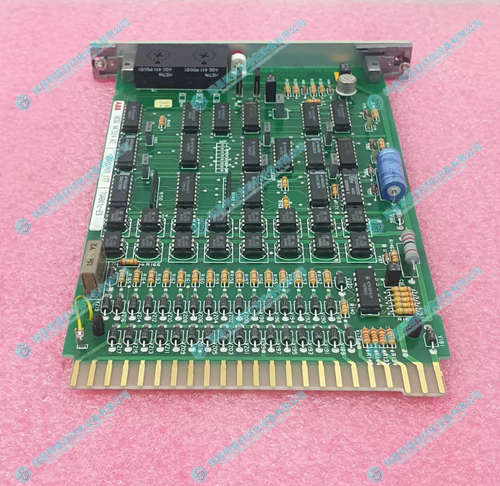

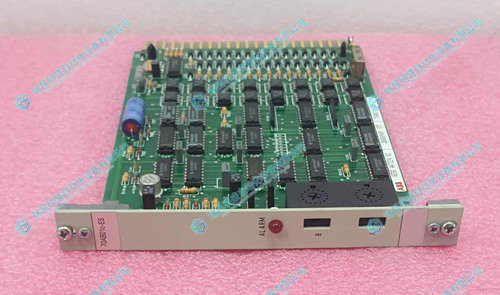

2.产 品 展 示
