LAM 810-495659R471电源供应模块 PDF资料
1.产 品 资 料 介 绍：
中文资料：
LAM 810-495659R471 电源供应模块 是泛林半导体（LAM Research）设备中的一款重要电源管理模块，专为半导体制造设备设计，提供高效、稳定的电力供应。该模块通常用于为设备的关键子系统提供电力，支持稳定运行，同时集成保护功能以应对电气异常。
产品特点
高效电源转换：
- 支持高功率密度设计，可为多种设备部件提供稳定电压和电流。
- 高能效比，符合节能要求，减少电力浪费。
多功能保护：
- 集成过流、过压、过温等保护功能，确保设备运行安全。
- 自动恢复功能，可在故障解除后快速恢复正常运行。
紧凑设计：
- 模块化设计，易于设备集成。
- 紧凑外形，节省设备空间。
宽电压输入范围：
- 支持多种输入电压规格，适应全球不同地区的电力系统。
可靠性强：
- 工业级元器件，支持长时间稳定运行。
- 耐用性高，适合高负荷和复杂工况环境。
技术规格（假设参考）
| 参数 | 说明 |
|---|---|
| 输入电压范围 | 100-240 VAC 或 48-60 VDC |
| 输出电压范围 | 5V / 12V / 24V（视具体型号而定） |
| 最大输出功率 | 500W - 1500W |
| 输出通道数 | 多路独立输出 |
| 工作效率 | ≥90% |
| 保护功能 | 过流、过压、过温、短路保护 |
| 工作温度范围 | 0°C 至 70°C |
| 冷却方式 | 风冷或被动散热 |
| 接口类型 | 标准端子或模块化接口 |
| 尺寸 | 模块化设计，符合设备插槽规格 |
| 认证 | 符合 CE、UL、FCC 等国际标准 |
英文资料：
The LAM 810-495659R471 power supply module is an important power management module in LAM Research equipment, designed specifically for semiconductor manufacturing equipment to provide efficient and stable power supply. This module is typically used to provide power to critical subsystems of equipment, support stable operation, and integrate protection functions to address electrical anomalies.
Product Features
Efficient power conversion:
Supports high power density design, providing stable voltage and current for various device components.
High energy efficiency ratio, meeting energy-saving requirements, reducing power waste.
Multi functional protection:
Integrate overcurrent, overvoltage, overheating and other protection functions to ensure the safe operation of the equipment.
The automatic recovery function can quickly restore normal operation after the fault is resolved.
Compact design:
Modular design, easy to integrate with devices.
Compact appearance, saving equipment space.
Wide voltage input range:
Supports multiple input voltage specifications to adapt to power systems in different regions around the world.
Strong reliability:
Industrial grade components that support long-term stable operation.
High durability, suitable for high load and complex working environments.
Technical specifications (assuming reference)
Parameter Description
Input voltage range 100-240 VAC or 48-60 VDC
Output voltage range 5V/12V/24V (depending on specific model)
Maximum output power 500W-1500W
Multiple independent outputs with multiple output channels
Work efficiency ≥ 90%
Protection functions include overcurrent, overvoltage, overtemperature, and short-circuit protection
Working temperature range: 0 ° C to 70 ° C
Cooling method: air cooling or passive heat dissipation
Interface type: standard terminal or modular interface
Modular design of size, in compliance with equipment slot specifications
Certification complies with international standards such as CE, UL, FCC, etc

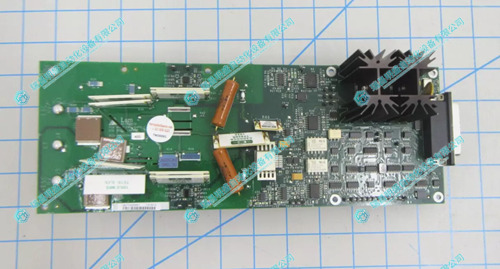

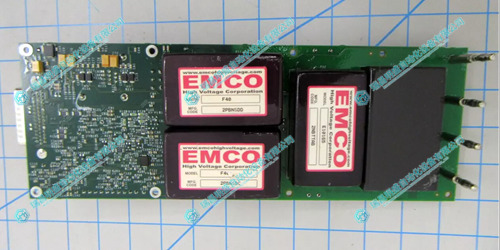

2.产 品 展 示
