LAM 810-210775-002交流电配电模块 PDF资料
1.产 品 资 料 介 绍：
中文资料：
LAM 810-210775-002 交流电配电模块 是泛林半导体（LAM Research）设备中的核心电气组件之一，专为半导体制造设备设计，负责管理设备的交流电分配。该模块能够高效、安全地分配和控制设备运行所需的交流电源，同时提供电气保护功能，确保设备的稳定性和可靠性。
产品特点
高效电源分配：
- 将主交流电源分配到设备的各个子系统或模块。
- 支持多路输出，满足复杂设备对电源分配的需求。
过载保护：
- 内置过载保护功能，能够在电流超过安全范围时自动断开电路。
- 提供短路和过流保护，防止电气故障对设备造成损害。
紧凑设计：
- 模块化结构，便于集成到设备内部。
- 紧凑的设计节省了设备空间，同时保持高效的散热性能。
高可靠性：
- 使用工业级元器件，适应半导体制造的高要求环境。
- 支持长时间无故障运行，确保设备持续高效工作。
监控和诊断：
- 支持实时监测电源状态（如电压、电流）。
- 配备故障诊断功能，便于快速定位问题。
技术规格（假设参考）
| 参数 | 说明 |
|---|---|
| 输入电压 | 200-240 VAC 或设备需求的标准电压 |
| 输出通道数 | 4-8 路独立输出 |
| 最大输出电流 | 每通道 10A-30A（需确认具体值） |
| 工作频率 | 50/60 Hz |
| 保护功能 | 过载、过流、短路保护 |
| 工作温度范围 | 0°C 至 50°C |
| 接口类型 | 标准接线端子或模块化连接器 |
| 尺寸 | 模块化设计，符合设备安装标准 |
| 认证 | 符合 CE、UL 或其他行业规范 |
英文资料：
The LAM 810-210775-002 AC power distribution module is one of the core electrical components in LAM Research equipment, designed specifically for semiconductor manufacturing equipment and responsible for managing the AC power distribution of the equipment. This module can efficiently and safely allocate and control the AC power required for equipment operation, while providing electrical protection functions to ensure the stability and reliability of the equipment.
Product Features
Efficient power distribution:
Distribute the main AC power to each subsystem or module of the equipment.
Supports multiple outputs to meet the power distribution needs of complex devices.
Overload protection:
Built in overload protection function, capable of automatically disconnecting the circuit when the current exceeds the safe range.
Provide short circuit and overcurrent protection to prevent electrical faults from causing damage to equipment.
Compact design:
Modular structure, easy to integrate into the device.
The compact design saves device space while maintaining efficient heat dissipation performance.
High reliability:
Using industrial grade components to adapt to the high demand environment of semiconductor manufacturing.
Support long-term trouble free operation to ensure continuous and efficient operation of the equipment.
Monitoring and Diagnosis:
Support real-time monitoring of power status (such as voltage and current).
Equipped with fault diagnosis function, it is easy to quickly locate problems.
Technical specifications (assuming reference)
Parameter Description
Input voltage of 200-240 VAC or standard voltage required by the equipment
Output channels 4-8 independent outputs
Maximum output current per channel 10A-30A (specific value to be confirmed)
Working frequency 50/60 Hz
Protection function overload, overcurrent, short circuit protection
Working temperature range: 0 ° C to 50 ° C
Interface type: standard terminal block or modular connector
Modular design of dimensions, in compliance with equipment installation standards
Certification in compliance with CE, UL, or other industry standards

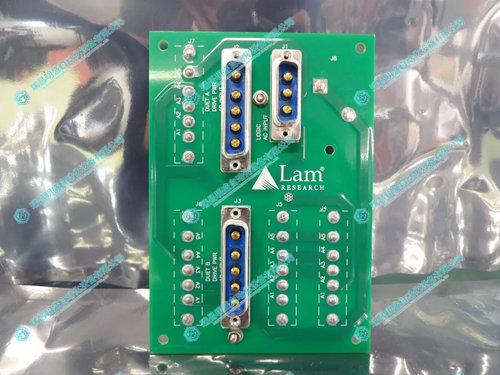

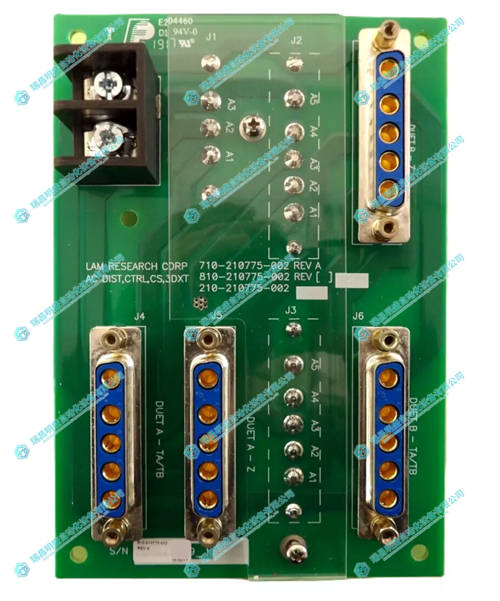

2.产 品 展 示
