BENDER IRDH265-2 绝缘监控设备 PDF资料
1.产 品 资 料 介 绍：
中文资料：
BENDER IRDH265-2 绝缘监控设备 是一款用于监测电气系统中绝缘状态的先进设备，广泛应用于电力、工业自动化、建筑以及其他需要监控绝缘状态的应用场合。该设备特别适用于直流电系统和低压电气设备的绝缘监测，可以帮助用户实时检测绝缘故障，从而提高系统的安全性和可靠性。
主要功能与特性：
绝缘监测：
- BENDER IRDH265-2 主要用于监测电气系统的绝缘状况，检测电气设备和电缆之间是否存在绝缘故障。其目标是提前识别任何绝缘问题，避免电气系统因绝缘故障而导致的危险。
- 该设备可用于监测 IT系统（不接地系统） 或 LPS系统（低压系统） 中的绝缘状态，确保无地电流泄漏，并防止系统运行中的故障。
高精度检测：
- IRDH265-2 配备高精度的检测技术，可以对电气系统的绝缘电阻进行精确测量。设备能够检测非常小的电流泄漏，并且能够在绝缘下降到预设的危险阈值之前发出报警，从而保证系统的安全。
- 它采用了 数字化信号处理技术，能够提高测量的准确性和稳定性，适用于复杂电气环境中的检测任务。
宽广的工作电压范围：
- BENDER IRDH265-2 能够支持多种电压等级的系统监测，通常适用于 AC 50/60 Hz 的交流电系统 和 DC 系统（如直流电池和直流电力传输系统）。
- 适用的电压范围广泛，能够满足不同工业环境下的监测需求。
报警与预警功能：
- 设备内建有多个报警设置，一旦检测到电气系统中的绝缘电阻下降到设定的临界值（通常为几十兆欧姆），即会自动发出视觉和声音报警，提示操作人员及时采取措施。
- 具有 多级报警输出，可以接入外部警报装置、可编程控制器（PLC）等系统，进行更复杂的报警联动和响应。
持续在线监测：
- IRD265-2 提供24小时不间断的在线监测功能，能够持续对电气系统进行实时检测，保证在系统运行过程中始终处于安全状态。
- 设备能够记录监测数据和报警历史，并可通过 USB接口或Modbus通信协议 导出数据，供后续分析和报表生成。
用户友好的操作界面：
- BENDER IRDH265-2 配备直观的 LCD显示屏，显示当前绝缘状态、电阻值以及报警信息，方便用户查看和操作。
- 用户可通过设备的 按钮操作 或通过 远程监控软件 进行设备配置和监控，支持远程调节报警阈值和其他参数。
可扩展性与兼容性：
- 该设备支持与其他 Bender产品 的集成，特别是与 绝缘监测控制系统（IMS） 和其他工业控制设备的集成，形成完整的监测和报警系统。
- Modbus RTU 协议的支持使得 IRDH265-2 可以轻松与 PLC、SCADA系统等进行数据交换，便于大规模工业应用。
高环境适应性：
- 该设备设计坚固，具备较强的 抗干扰能力 和 环境适应能力。即使在高温、潮湿或电磁干扰较强的工业环境中，IRDH265-2 也能稳定工作。
- 它的外壳符合 IP54防护等级，能够防止灰尘和水滴的侵入，适用于要求高环境防护的工业应用。
英文资料：
BENDER IRDH265-2 insulation monitoring equipment is an advanced device used to monitor the insulation status in electrical systems, widely used in power, industrial automation, construction, and other applications that require monitoring the insulation status. This device is particularly suitable for insulation monitoring of DC power systems and low-voltage electrical equipment, which can help users detect insulation faults in real time, thereby improving the safety and reliability of the system.
Main functions and features:
Insulation monitoring:
BENDER IRDH265-2 is mainly used to monitor the insulation condition of electrical systems and detect insulation faults between electrical equipment and cables. Its goal is to identify any insulation issues in advance and avoid the danger caused by insulation faults in the electrical system.
This device can be used to monitor the insulation status in IT systems (ungrounded systems) or LPS systems (low-voltage systems), ensure no ground current leakage, and prevent faults during system operation.
High precision detection:
IRDH265-2 is equipped with high-precision detection technology, which can accurately measure the insulation resistance of electrical systems. The device is capable of detecting very small current leaks and issuing an alarm before the insulation drops to a predetermined danger threshold, ensuring the safety of the system.
It adopts digital signal processing technology, which can improve the accuracy and stability of measurement, and is suitable for detection tasks in complex electrical environments.
Wide working voltage range:
BENDER IRDH265-2 is capable of supporting system monitoring at multiple voltage levels and is typically suitable for AC 50/60 Hz AC systems and DC systems (such as DC batteries and DC power transmission systems).
The applicable voltage range is wide, which can meet the monitoring needs in different industrial environments.
Alarm and warning functions:
The device has multiple built-in alarm settings. Once the insulation resistance in the electrical system drops to the set critical value (usually tens of megaohms), it will automatically issue visual and audible alarms to prompt operators to take timely measures.
It has multi-level alarm output and can be connected to external alarm devices, programmable logic controllers (PLCs) and other systems for more complex alarm linkage and response.
Continuous online monitoring:
IRD265-2 provides 24-hour uninterrupted online monitoring function, which can continuously perform real-time detection of the electrical system to ensure that it is always in a safe state during system operation.
The device is capable of recording monitoring data and alarm history, and can export data through USB interface or Modbus communication protocol for subsequent analysis and report generation.
User friendly operating interface:
BENDER IRDH265-2 is equipped with an intuitive LCD display screen that shows the current insulation status, resistance value, and alarm information, making it convenient for users to view and operate.
Users can configure and monitor the device through button operations or through remote monitoring software, supporting remote adjustment of alarm thresholds and other parameters.
Scalability and compatibility:
This device supports integration with other Bender products, especially with insulation monitoring and control systems (IMS) and other industrial control equipment, forming a complete monitoring and alarm system.
The support of Modbus RTU protocol enables IRDH265-2 to easily exchange data with PLCs, SCADA systems, etc., making it convenient for large-scale industrial applications.
High environmental adaptability:
The device is designed to be sturdy, with strong anti-interference ability and environmental adaptability. Even in industrial environments with high temperature, humidity, or strong electromagnetic interference, IRDH265-2 can work stably.
Its casing meets the IP54 protection level, which can prevent the intrusion of dust and water droplets, making it suitable for industrial applications that require high environmental protection.

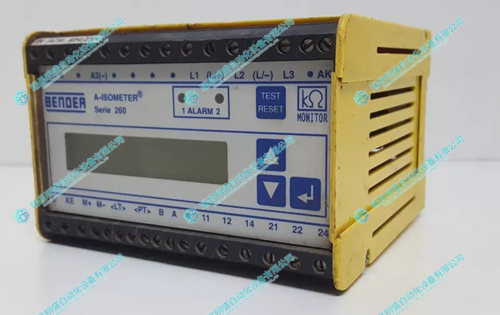

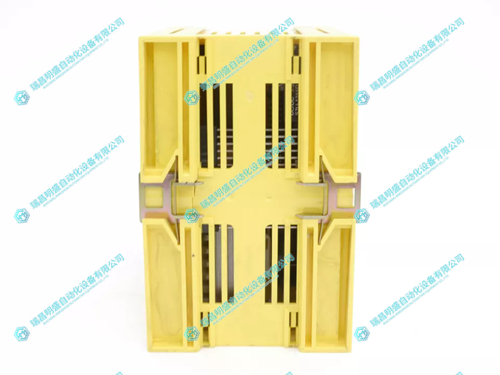

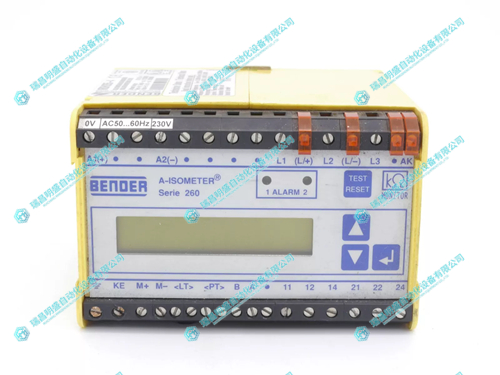

2.产 品 展 示
