A30-30-10RT接触器 PDF资料
1.产 品 资 料 介 绍：
中文资料：
A30-30-10RT 接触器 是一款由 Schneider Electric（施耐德电气） 生产的工业控制和电气保护元件，广泛应用于电气控制系统中。接触器主要用于控制高电流设备的开关，如电动机、加热设备、照明系统等。A30-30-10RT 是其型号之一，具有特定的电气参数和应用特性。
主要特点：
标准设计与高性能：
- A30-30-10RT 接触器采用标准化设计，适用于各种电气控制应用，能够提供可靠的开关控制。
- 它具有较强的耐用性，适合长期高频使用，特别是在工业环境中。
接触器电流与额定负载：
- 该接触器的额定电流通常为 30A，适合用于控制电流为 30A 以下的负载。它的额定电压通常为 380V-415V AC，也适用于其他标准电压范围。
辅助触点：
- A30-30-10RT 通常配有辅助触点，支持多路信号控制与反馈。通过附加触点模块，可以扩展接触器的控制能力。
适用环境：
- 接触器的设计考虑了工业环境的严苛性，能够在-25°C到+40°C 的温度范围内稳定工作。它通常具备防尘、防水等功能，适用于常见的工业应用环境。
高可靠性与长使用寿命：
- A30-30-10RT 具有高开关频率与较长的机械寿命，适合用于自动化系统和频繁启停的设备。它的寿命通常可以达到 1百万次 以上的操作周期。
过载与短路保护：
- 接触器本身通常具有过载保护功能，避免电机和其他负载因超载或电流异常而损坏。
- 可以与热继电器配合使用，提供额外的过载保护功能。
辅助功能：
- 它可以配备额外的附件，例如线圈降压设备、延时开关等，以满足具体的控制要求。
型号与标识：
- A30-30-10RT 的 “A30” 代表接触器的系列或类型，“30” 表示其额定电流为 30A，“10” 表示具有 10 个辅助触点（根据不同配置可能有所变化），而 “RT” 通常指的是接触器类型或特定功能。
技术规格：
- 额定电流：30A
- 额定电压：380V - 415V AC（可能支持其他电压配置）
- 额定操作电流：约30A（视具体应用和负载而定）
- 操作方式：电磁式开关控制
- 额定功率：一般用于电动机、照明和其他负载的控制
- 机械寿命：1百万次操作
- 温度范围：-25°C 到 +40°C
- 防护等级：通常为 IP20，但可以根据具体配置提供更高防护等级。
- 安装方式：可适应多种安装方式，适用于标准配电盘和控制柜。
英文资料：
A30-30-10RT contactor is an industrial control and electrical protection component produced by Schneider Electric, widely used in electrical control systems. Contactors are mainly used to control the switching of high current equipment, such as motors, heating equipment, lighting systems, etc. A30-30-10RT is one of its models, with specific electrical parameters and application characteristics.
Main features:
Standard design and high performance:
The A30-30-10RT contactor adopts standardized design and is suitable for various electrical control applications, providing reliable switch control.
It has strong durability and is suitable for long-term high-frequency use, especially in industrial environments.
Contactor current and rated load:
The rated current of this contactor is usually 30A, suitable for controlling loads with currents below 30A. Its rated voltage is usually 380V-415V AC and is also suitable for other standard voltage ranges.
Auxiliary contact:
A30-30-10RT is usually equipped with auxiliary contacts, supporting multi-channel signal control and feedback. By adding contact modules, the control capability of the contactor can be expanded.
Applicable environment:
The design of the contactor takes into account the harsh industrial environment and can operate stably within a temperature range of -25 ° C to+40 ° C. It usually has functions such as dust and water resistance, and is suitable for common industrial application environments.
High reliability and long service life:
A30-30-10RT has high switching frequency and long mechanical life, making it suitable for use in automation systems and equipment with frequent start stop. Its lifespan can typically reach over 1 million operating cycles.
Overload and short circuit protection:
The contactor itself usually has overload protection function to prevent damage to the motor and other loads due to overload or abnormal current.
Can be used in conjunction with a thermal relay to provide additional overload protection function.
Auxiliary functions:
It can be equipped with additional accessories such as coil voltage reduction devices, delay switches, etc. to meet specific control requirements.
Model and identification:
The "A30" of A30-30-10RT represents the series or type of contactor, "30" indicates its rated current of 30A, "10" indicates it has 10 auxiliary contacts (which may vary depending on different configurations), and "RT" usually refers to the type or specific function of the contactor.
Technical specifications:
Rated current: 30A
Rated voltage: 380V -415V AC (may support other voltage configurations)
Rated operating current: approximately 30A (depending on specific application and load)
Operation mode: Electromagnetic switch control
Rated power: generally used for controlling electric motors, lighting, and other loads
Mechanical lifespan: 1 million operations
Temperature range: -25 ° C to+40 ° C
Protection level: Typically IP20, but higher protection levels can be provided depending on specific configurations.
Installation method: It can adapt to various installation methods and is suitable for standard distribution panels and control cabinets.

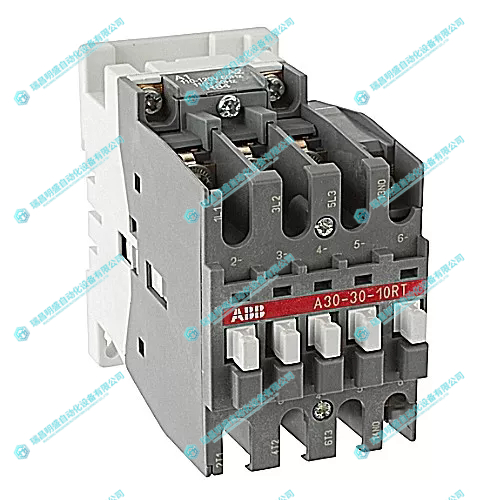

2.产 品 展 示
