PM864AK01 3BSE018161R1处理器单元模块 PDF资料
1.产 品 资 料 介 绍：
中文资料：

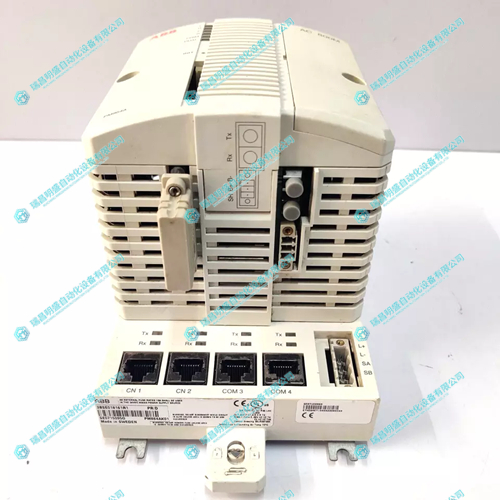

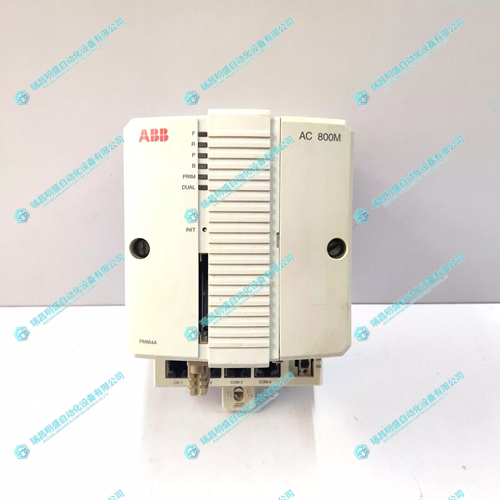

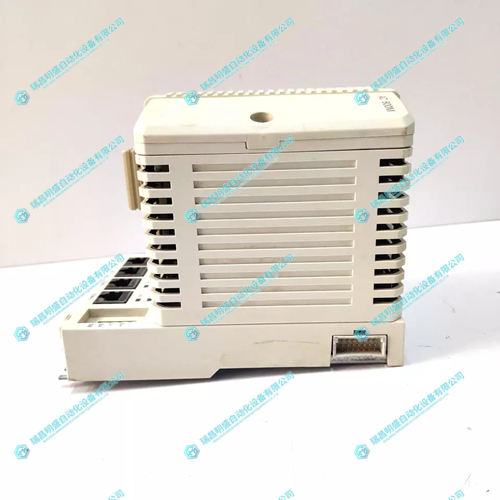

ABB PM864AK01 (3BSE018161R1) 处理器单元模块是ABB AC 800M 控制器系列的一部分，设计用于高性能和高可靠性的工业自动化应用。它是一个功能强大的 CPU 模块，支持广泛的控制任务和复杂的过程自动化需求。以下是关于该模块的详细信息：
主要功能和特点
高性能处理能力
- 配备强大的 CPU，支持快速处理复杂的逻辑控制任务。
- 高速任务周期，适用于实时过程控制和数据处理。
模块化设计
- 可灵活与 I/O 模块、通信模块和冗余模块组合，适应多种应用场景。
- 支持热插拔功能，便于在线维护和扩展。
冗余支持
- 支持 CPU 冗余配置，实现高可用性，适用于关键控制任务。
- 冗余切换快速且无缝，确保系统连续运行。
多通信接口
- 内置以太网接口，用于与控制网络和上位机通信。
- 支持多种协议，包括 Modbus TCP/IP、PROFINET、EtherNet/IP 等，适应不同的工业网络需求。
强大的环境适应性
- 工业级设计，能够在恶劣环境下运行。
- 具有抗电磁干扰、防振动的能力，适用于各种工业环境。
编程和配置
- 兼容 ABB 的 Control Builder 编程工具，支持 IEC 61131-3 标准的多种编程语言。
- 支持在线调试和诊断功能，便于故障排查和优化。
技术规格
| 参数 | 详情 |
|---|---|
| 型号 | PM864AK01 (3BSE018161R1) |
| 处理器 | 高性能工业处理器 |
| 内存容量 | 程序存储器：4 MB；数据存储器：1 MB |
| 通信接口 | 2 × 以太网（RJ45），支持 TCP/IP |
| 冗余支持 | CPU 和电源冗余 |
| 工作电源 | 24V DC |
| 工作温度范围 | -25°C 至 +70°C |
| 尺寸 | 标准模块尺寸，便于控制柜集成 |
| 安装方式 | DIN 导轨或机架式安装 |
| 兼容性 | 适用于 AC 800M 系列系统 |
应用领域
过程自动化
- 石油化工、制药、食品和饮料行业的复杂过程控制。
能源和电力
- 发电厂和输配电系统的自动化和保护控制。
制造业
- 自动化生产线和设备的集中控制。
基础设施
- 水处理、供暖和制冷系统的集中管理。
运输
- 港口、机场等物流和运输系统的控制。
英文资料：
The ABB PM864AK01 (3BSE018161R1) processor unit module is part of the ABB AC 800M controller series, designed for high-performance and high reliability industrial automation applications. It is a powerful CPU module that supports a wide range of control tasks and complex process automation requirements. The following is detailed information about the module:
Main functions and features
High performance processing capability
Equipped with a powerful CPU, it supports fast processing of complex logical control tasks.
High speed task cycle, suitable for real-time process control and data processing.
Modular design
It can be flexibly combined with I/O modules, communication modules, and redundant modules to adapt to various application scenarios.
Support hot swappable function for easy online maintenance and expansion.
Redundant support
Support CPU redundancy configuration, achieve high availability, suitable for critical control tasks.
Redundant switching is fast and seamless, ensuring continuous system operation.
Multiple communication interfaces
Built in Ethernet interface for communication with control network and upper computer.
Supports multiple protocols, including Modbus TCP/IP, PROFINET, EtherNet/IP, etc., to meet different industrial network requirements.
Strong environmental adaptability
Industrial grade design, capable of operating in harsh environments.
It has the ability to resist electromagnetic interference and vibration, and is suitable for various industrial environments.
Programming and Configuration
Compatible with ABB's Control Builder programming tool, supporting multiple programming languages according to IEC 61131-3 standard.
Support online debugging and diagnostic functions for easy troubleshooting and optimization.
technical specifications
Parameter details
Model PM864AK01 (3BSE018161R1)
High performance industrial processor
Memory capacity: Program storage: 4 MB; Data storage: 1 MB
Communication interface 2 x Ethernet (RJ45), supporting TCP/IP
Redundancy supports CPU and power redundancy
Working power supply 24V DC
Working temperature range -25 ° C to+70 ° C
Standard module size for easy control cabinet integration
Installation method: DIN rail or rack mounted installation
Compatibility for AC 800M series systems
application area
process automation
Complex process control in the petrochemical, pharmaceutical, food, and beverage industries.
Energy and Electricity
Automation and protection control of power plants and transmission and distribution systems.
manufacturing
Centralized control of automated production lines and equipment.
infrastructure
Centralized management of water treatment, heating, and cooling systems.
transport
Control of logistics and transportation systems such as ports and airports.
