WATLOW ANAFAZE CLS204温度控制器 PDF资料
1.产 品 资 料 介 绍：
中文资料：
Watlow Anafaze CLS204 温度控制器是一个多通道温度控制设备，专为工业和实验室应用设计，能够精确监测和调节多路温度信号。该控制器以其可靠性、灵活性和高性能著称，适用于多区域温度控制需求。以下是关于 CLS204 温度控制器的详细信息：
主要功能和特点
多通道温度控制
- 支持多达 4 个独立控制回路，适合复杂的多区域温度管理需求。
- 每个通道均可独立编程，以满足不同的温度要求。
高精度控制
- 提供 PID 控制算法，支持自动调节功能，实现高精度温度控制。
- 响应速度快，温度波动小。
灵活的输入类型
- 支持多种传感器输入，包括 热电偶（T/C）和 RTD。
- 兼容多种传感器类型，便于集成现有系统。
用户友好接口
- 配备数字显示屏，可实时显示当前温度和设定值。
- 简单易用的菜单导航，便于快速设置和调整。
通信能力
- 支持 RS-232 或 RS-485 通信协议，可与 PLC 或上位机系统集成。
- 提供远程监控和数据记录功能。
报警和安全功能
- 支持高温、低温报警，确保系统安全运行。
- 可配置继电器输出，用于报警或紧急停机。
技术规格
| 参数 | 详情 |
|---|---|
| 控制回路数量 | 4 路独立回路 |
| 控制方式 | PID、自整定控制 |
| 输入类型 | 热电偶（J、K、T、E）和 RTD（Pt100） |
| 输出类型 | SSR 驱动、继电器、线性电压/电流输出 |
| 通信接口 | RS-232 或 RS-485 |
| 电源要求 | 85-264 VAC，50/60 Hz |
| 工作温度范围 | 0°C 至 +50°C |
| 安装方式 | 面板安装 |
| 尺寸 | 1/4 DIN 或其他标准尺寸 |
应用领域
工业过程控制
- 多区域加热设备控制，如塑料成型、热处理和涂装工艺。
实验室和研发
- 多点温度监控和调节，适用于精密测试设备。
食品和饮料
- 用于烘焙、发酵和温度敏感工艺的控制。
半导体制造
- 精确控制温度对生产良率有关键影响的制造工艺。
英文资料：
The Watlow Anafaze CLS204 temperature controller is a multi-channel temperature control device designed specifically for industrial and laboratory applications, capable of accurately monitoring and adjusting multiple temperature signals. This controller is known for its reliability, flexibility, and high performance, and is suitable for multi zone temperature control requirements. The following is detailed information about the CLS204 temperature controller:
Main functions and features
Multi channel temperature control
Supports up to 4 independent control loops, suitable for complex multi zone temperature management needs.
Each channel can be independently programmed to meet different temperature requirements.
High precision control
Provide PID control algorithm, support automatic adjustment function, and achieve high-precision temperature control.
Fast response speed and minimal temperature fluctuations.
Flexible input types
Supports multiple sensor inputs, including thermocouples (T/C) and RTDs.
Compatible with multiple sensor types, making it easy to integrate with existing systems.
User friendly interface
Equipped with a digital display screen, it can display the current temperature and set value in real time.
Simple and easy-to-use menu navigation for quick setup and adjustment.
Communication capability
Supports RS-232 or RS-485 communication protocols and can be integrated with PLC or upper computer systems.
Provide remote monitoring and data recording functions.
Alarm and safety functions
Support high and low temperature alarms to ensure the safe operation of the system.
Configurable relay output for alarm or emergency shutdown.
technical specifications
Parameter details
Control circuit quantity: 4 independent circuits
Control method PID, self-tuning control
Input type thermocouple (J, K, T, E) and RTD (Pt100)
Output type SSR driver, relay, linear voltage/current output
Communication interface RS-232 or RS-485
Power requirement 85-264 VAC, 50/60 Hz
Working temperature range: 0 ° C to+50 ° C
Installation method: Panel installation
Size 1/4 DIN or other standard sizes
application area
industrial process control
Multi zone heating equipment control, such as plastic molding, heat treatment, and coating processes.
Laboratory and R&D
Multi point temperature monitoring and adjustment, suitable for precision testing equipment.
Food and Beverage
Used for controlling baking, fermentation, and temperature sensitive processes.
Semiconductor Manufacturing
Precise temperature control is a manufacturing process that has a critical impact on production yield.

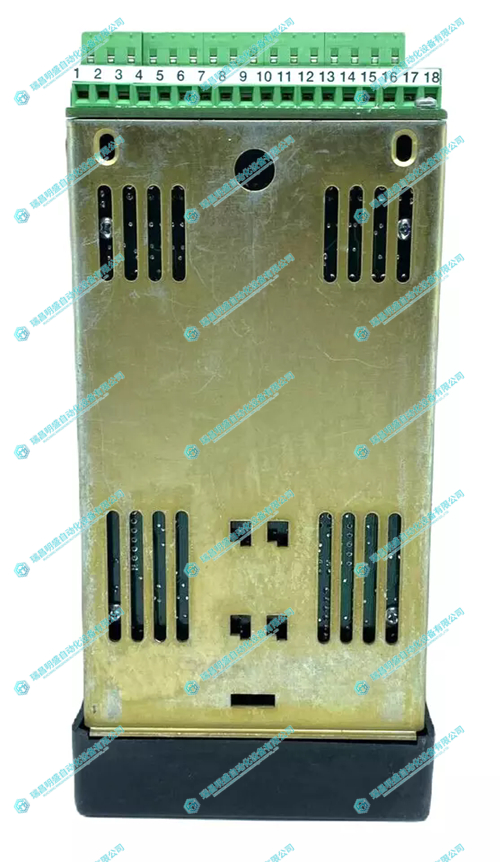

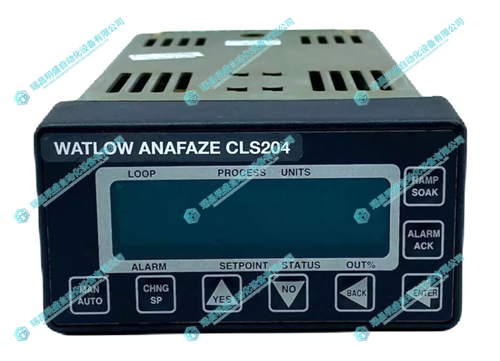

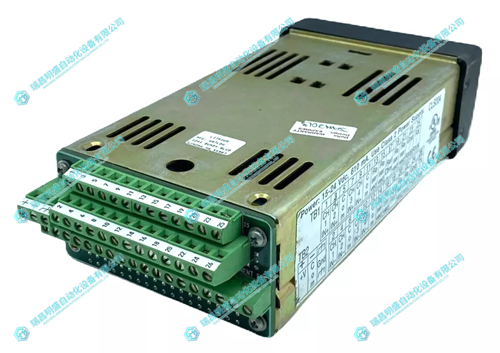

2.产 品 展 示
