ABB YPI105C数字输入电路板 PDF资料
1.产 品 资 料 介 绍：
中文资料：

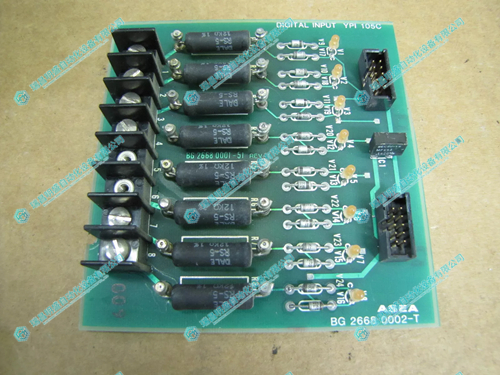

ABB YPI105C 数字输入电路板是一种高性能工业级模块，专为复杂的自动化控制系统设计，广泛应用于过程控制和自动化领域。它主要用作输入模块，用于接收来自现场设备的数字信号，将其转换为控制器可识别的数据格式。
主要功能和特点：
多通道数字输入：
- 提供多个数字输入通道，支持并行处理。
- 可连接多种类型的开关、传感器或其他数字设备。
信号兼容性：
- 支持多种输入信号标准（如24V DC或48V DC）。
- 提供电气隔离功能，避免信号干扰和设备损坏。
高可靠性：
- 设计适应严苛的工业环境，具备良好的抗干扰能力。
- 符合EMC（电磁兼容）和工业标准。
故障诊断：
- 内置诊断功能，实时监测通道状态。
- 支持检测输入信号故障（如短路或断路）。
模块化设计：
- 易于安装、维护和更换。
- 与ABB控制系统无缝集成，适用于各种控制架构。
技术规格：
| 参数 | 详情 |
|---|---|
| 输入通道数量 | 通常为16通道或更高 |
| 输入电压范围 | 24V DC 或 48V DC |
| 输入电流 | 典型值为几毫安 |
| 信号隔离 | 通道间隔离，最大可达500V |
| 响应时间 | < 10 毫秒 |
| 工作温度范围 | -20°C 至 +70°C |
| 安装方式 | DIN导轨或机架式安装 |
| 尺寸 | 标准模块尺寸 |
应用领域：
工业自动化： 用于PLC系统接收现场设备的开关信号，如按钮、限位开关等。
过程控制： 监控并采集过程信号，应用于石油、化工、电力等行业。
能源管理： 用于发电和输配电控制系统中的数字信号输入。
智能制造： 集成到生产线中，用于高精度信号采集和控制。
英文资料：
The ABB YPI105C digital input circuit board is a high-performance industrial grade module designed specifically for complex automation control systems, widely used in the fields of process control and automation. It is mainly used as an input module to receive digital signals from field devices and convert them into a data format recognizable by the controller.
Main functions and features:
Multi channel digital input:
Provide multiple digital input channels and support parallel processing.
Can connect various types of switches, sensors, or other digital devices.
Signal compatibility:
Supports multiple input signal standards (such as 24V DC or 48V DC).
Provide electrical isolation function to avoid signal interference and equipment damage.
High reliability:
Designed to adapt to harsh industrial environments and possess excellent anti-interference capabilities.
Compliant with EMC (electromagnetic compatibility) and industry standards.
Fault diagnosis:
Built in diagnostic function, real-time monitoring of channel status.
Support detecting input signal faults (such as short circuits or open circuits).
Modular design:
Easy to install, maintain, and replace.
Seamless integration with ABB control systems, suitable for various control architectures.
Technical specifications:
Parameter details
The number of input channels is usually 16 channels or higher
Input voltage range 24V DC or 48V DC
The typical value of input current is a few milliamps
Isolation between signal isolation channels, up to a maximum of 500V
Response time<10 milliseconds
Working temperature range -20 ° C to+70 ° C
Installation method: DIN rail or rack mounted installation
Size standard module size
Application areas:
Industrial automation: used for PLC systems to receive switch signals from on-site equipment, such as buttons, limit switches, etc.
Process control: Monitor and collect process signals, applied in industries such as petroleum, chemical, and power.
Energy management: Used for digital signal input in power generation and transmission control systems.
Intelligent manufacturing: integrated into the production line for high-precision signal acquisition and control.
