Bently  3500/92 136188-02以太网输入输出模块  PDF资料

1.产 品 资 料 介 绍：

中文资料：

Bently 3500/92 136188-02 以太网输入输出模块（Ethernet I/O Module）是 Bently Nevada 公司为其 3500 监控与保护系统 设计的一款用于现场数据采集和远程数据交换的模块。该模块通过以太网接口提供高效的数字和模拟信号数据传输，通常用于工业自动化、设备监控、机械保护等领域，能够与其他监控系统和设备（如传感器、PLC、SCADA 系统等）进行实时数据交互。

主要特点

1. 高效的远程数据传输：

• 3500/92 以太网 I/O 模块支持通过以太网（Ethernet）连接与监控系统进行高效的数据传输。
• 可用于远程控制和监控，特别适合需要在大型设施或分布式系统中进行数据采集的应用。

2. 灵活的输入输出配置：

• 该模块支持多种输入输出类型，包括数字量和模拟量信号。
• 可进行灵活配置，以适应不同的应用场景，如机器保护、预警和故障分析。

3. 实时监控与报警功能：

• 支持通过网络实时传输设备状态数据，能够实时监控设备健康状况，及时发现故障并发出报警。
• 提供高精度数据和可靠的诊断功能，有助于减少设备故障和提高生产效率。

4. 增强的系统集成能力：

• 3500/92 模块能够与 Bently Nevada 的 3500 系列监控系统（如 3500/20、3500/40 模块）进行无缝集成，实现全面的设备监控和数据分析。
• 支持多种工业标准协议，如 Modbus、Ethernet/IP、OPC 等，确保与第三方设备的兼容性。

5. 模块化设计：

• 采用模块化设计，支持与现有的 Bently Nevada 系统集成，用户可以根据需要进行扩展，便于现场的灵活部署。
• 易于维护和升级，通过插拔模块进行扩展和替换。

6. 高可靠性与耐用性：

• 模块设计符合工业环境标准，具备抗干扰能力和宽工作温度范围，适应各种恶劣环境。
• 具有冗余设计和故障自诊断功能，保证系统的可靠性和持续运行。

技术规格

• 型号：Bently 3500/92, 订货号：136188-02
• 电源输入：典型电源电压为 24V DC。
• 接口类型：以太网接口（支持 TCP/IP 协议）用于与其他设备的通信。
• 输入输出类型：数字输入、数字输出、模拟输入、模拟输出等多种信号类型。
• 通信协议：支持 Modbus、Ethernet/IP、OPC 等标准协议。
• 网络接口：支持标准以太网连接，适配常见的工业以太网协议。
• 环境适应性：工作温度范围通常为 -40°C 到 85°C，适合工业现场环境。

应用领域

1. 机器保护与设备监控：

• 该模块主要用于提供机器和设备的实时监控，如泵、压缩机、发电机等，能够实时捕捉异常并触发报警。
• 帮助设备维护人员实现预防性维护，减少突发故障，提升设备可用性和生产效率。

2. 石油天然气行业：

• 在石油钻井平台、天然气处理厂等场景中，3500/92 模块可以用于监控设备的运行状态，确保操作安全和稳定。

3. 发电厂和能源行业：

• 在电力生产过程中，3500/92 模块可以实时监控发电机组、变压器等设备的健康状况，帮助运维人员进行早期故障预测和处理。

4. 制造业与自动化系统：

• 可用于制造生产线、自动化装配和机器人系统中，实现设备的远程监控和状态检查，帮助优化生产流程。

5. 基础设施监控：

• 在大型建筑或基础设施项目中，3500/92 模块用于实时监控系统中的关键设备（如 HVAC 系统、电力供应系统等）的运行状态。

英文资料：

Bently 3500/92 136188-02 Ethernet I/O Module is a module designed by Bently Nevada Corporation for its 3500 monitoring and protection system, used for on-site data acquisition and remote data exchange. This module provides efficient digital and analog signal data transmission through Ethernet interfaces and is commonly used in industrial automation, equipment monitoring, mechanical protection, and other fields. It can interact with other monitoring systems and devices (such as sensors, PLCs, SCADA systems, etc.) in real-time for data exchange.

main features

Efficient remote data transmission:

The 3500/92 Ethernet I/O module supports efficient data transmission with monitoring systems through Ethernet connections.

Can be used for remote control and monitoring, especially suitable for applications that require data collection in large facilities or distributed systems.

Flexible input/output configuration:

This module supports multiple input and output types, including digital and analog signals.

Flexible configuration can be made to adapt to different application scenarios, such as machine protection, warning, and fault analysis.

Real time monitoring and alarm function:

Support real-time transmission of device status data through the network, enabling real-time monitoring of device health status, timely detection of faults, and issuance of alarms.

Providing high-precision data and reliable diagnostic functions can help reduce equipment failures and improve production efficiency.

Enhanced system integration capability:

The 3500/92 module can seamlessly integrate with Bently Nevada's 3500 series monitoring systems (such as the 3500/20 and 3500/40 modules) to achieve comprehensive equipment monitoring and data analysis.

Support multiple industrial standard protocols, such as Modbus, Ethernet/IP, OPC, etc., to ensure compatibility with third-party devices.

Modular design:

Adopting a modular design that supports integration with existing Bently Nevada systems, users can expand as needed for flexible deployment on site.

Easy to maintain and upgrade, expand and replace by plugging and unplugging modules.

High reliability and durability:

The module design complies with industrial environmental standards, has anti-interference ability and a wide working temperature range, and can adapt to various harsh environments.

It has redundant design and fault self diagnosis function to ensure the reliability and continuous operation of the system.

technical specifications

Model: Bently 3500/92, Order Number: 136188-02

Power input: The typical power supply voltage is 24V DC.

Interface type: Ethernet interface (supporting TCP/IP protocol) used for communication with other devices.

Input/output types: digital input, digital output, analog input, analog output, and other signal types.

Communication protocol: Supports standard protocols such as Modbus, Ethernet/IP, OPC, etc.

Network interface: Supports standard Ethernet connections and adapts to common industrial Ethernet protocols.

Environmental adaptability: The working temperature range is usually -40 ° C to 85 ° C, suitable for industrial site environments.

application area

Machine protection and equipment monitoring:

This module is mainly used to provide real-time monitoring of machines and equipment, such as pumps, compressors, generators, etc., which can capture anomalies in real time and trigger alarms.

Assist equipment maintenance personnel in implementing preventive maintenance, reducing sudden failures, and improving equipment availability and production efficiency.

Oil and gas industry:

In scenarios such as oil drilling platforms and natural gas processing plants, the 3500/92 module can be used to monitor the operational status of equipment, ensuring safe and stable operation.

Power plants and energy industry:

In the process of power production, the 3500/92 module can monitor the health status of equipment such as generator sets and transformers in real time, helping operation and maintenance personnel to predict and handle early faults.

Manufacturing and Automation Systems:

Can be used in manufacturing production lines, automated assembly, and robot systems to achieve remote monitoring and status checks of equipment, helping optimize production processes.

Infrastructure monitoring:

In large buildings or infrastructure projects, the 3500/92 module is used to monitor the operational status of critical equipment in the system in real-time, such as HVAC systems, power supply systems, etc.

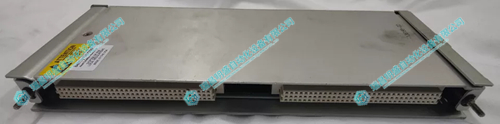

2.产      品      展      示
