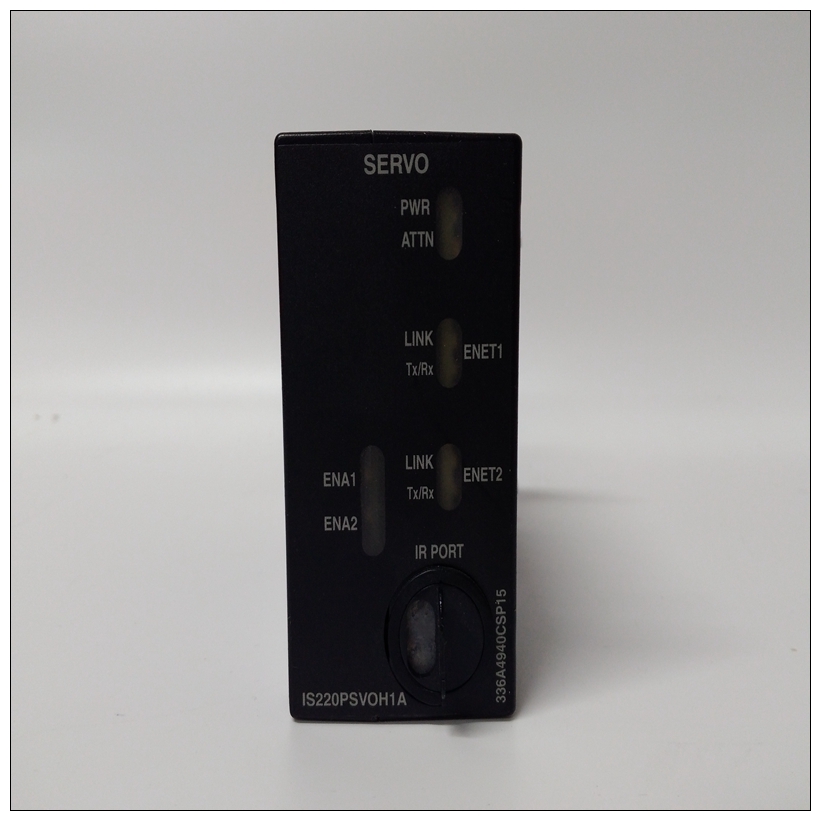

IS220PSVOH1A燃机模块,IS220PSVOH1A使用进展
升级可以使用固件升级实用程序将IC693CPU366现场升级为IC693CPU366 xE,并且升级套件44A751640-G05。固件升级套件可以从支持网站免费下载或购买。固件升级需要IC690ACC901微型转换器和电缆套件。功能兼容性主题描述电池寿命使用原装缓存RAM组件,电池寿命为6年25°C,60°C时为1½年目前可用的部件将电池寿命降低到25°C时的10个月60°C时为5个半月。编程器版本要求IC693CPU366可以配置
IS220PSVOH1A燃机模块和编程Machine Edition Logic Developer PLC 5.0 SP1或更高版本。PLC C工具包版本要求PLC C工具包的4.00或更高版本必须用于C编程。IC693CMM321以太网接口版本要求所有以太网接口(IC693CMM321)模块用于与该CPU的程序员或HMI/SCADA通信必须以下修订组之一:IC693CMM321-CC或更高版本IC693CMM321-AA或-BA升级至固件版本1.11或更高版本90-30系列手持式程序员兼容性CPU366不支持使用手持式编程器(HHP)。IC693BEM340 FIP总线控制器版本要求为此需要IC693BEM340固件版本3.00或更高版本CPU 36x固件的发布。90系列™-30现场总线兼容性90-30系列IC693PBM200和IC693PBS201的用户PROFIBUS模块应审查90-30系列CPU嵌入式PROFIBUS用户手册,GFK-2334。有PROFIBUS功能之间的操作差异这些CPU型号和PBM200/PBS201模块,例如COMMREQ状态字和数据字段。这些CPU型号报告在某些情况下,比PROFIBUS模块更多的信息其他方面的信息更少。
Upgrades
An IC693CPU366 can be field upgraded to an IC693CPU366-xE using the firmware upgrade utility and
upgrade kit 44A751640-G05.
Firmware upgrade kits can be downloaded at no cost from the Support website or purchased. Firmware
upgrades require the IC690ACC901 Miniconverter and Cable Kit.
Functional Compatibility
Subject Description
Battery Life With the original cache RAM component, the battery life was 6 years
25°C and 1½ years at 60°C. The data retention current on the
currently available part reduces the battery life to 10 months at 25°C
and 5½ months at 60°C.
Programmer Version
Requirements
The IC693CPU366 can be configured and programmed with
Machine Edition Logic Developer PLC version 5.0 SP1 or later.
PLC C Toolkit Version
Requirements
Version 4.00 or later of the PLC C Toolkit must be used for C
programming.
IC693CMM321 Ethernet
Interface Version Requirements
All Ethernet Interface (IC693CMM321) modules used for
programmer or HMI/SCADA communications with this CPU must be
one of the following revision groups:
IC693CMM321-CC or later
IC693CMM321-AA or -BA upgraded to firmware version 1.11 or later
Series 90-30 Hand-Held
Programmer Compatibility
The CPU366 does not support PROFIBUS configuration using the
Hand-Held Programmer (HHP).
IC693BEM340 FIP Bus
Controller Version
Requirements
IC693BEM340 firmware version 3.00 or later is required for this
release of CPU 36x firmware.
Series 90™-30 PROFIBUS
Compatibility
