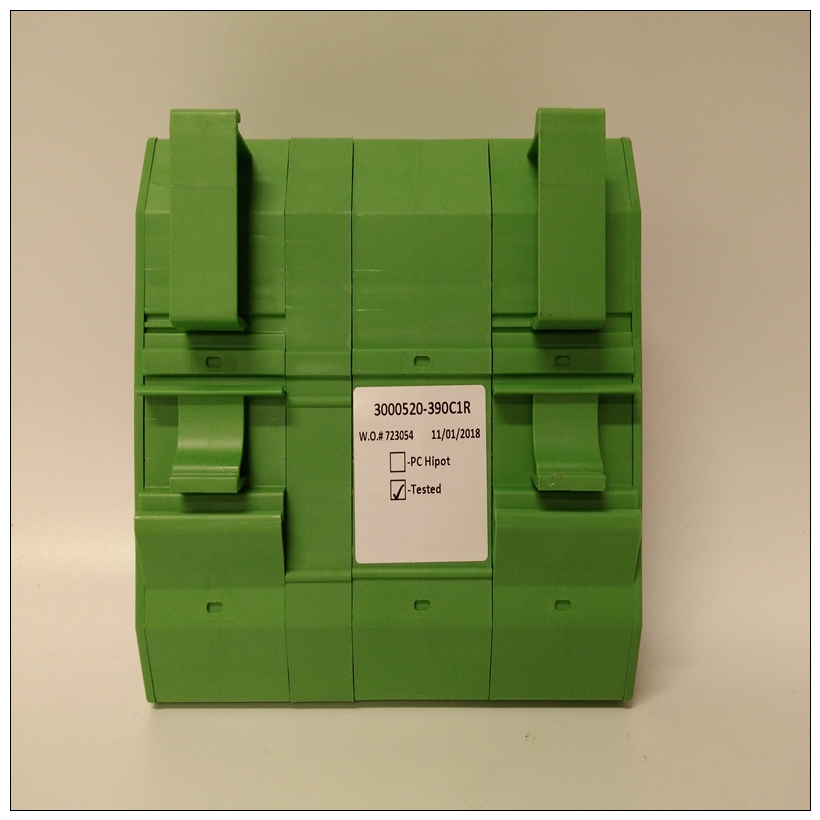

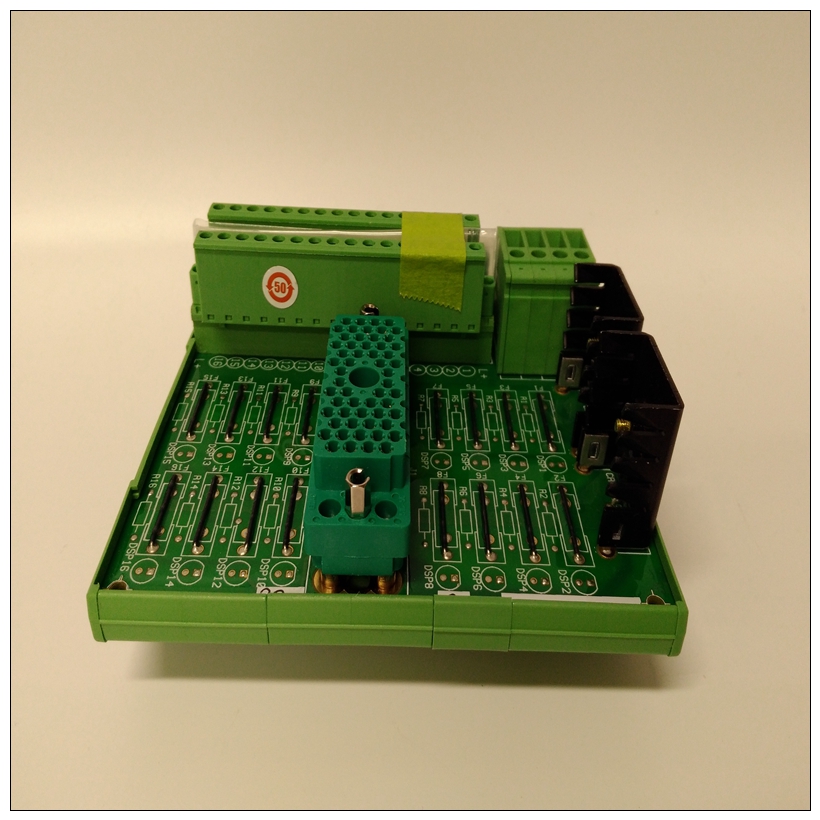

TRICONEX 3000520-390C1R端子板,3000520-390C1R英文说明
用于编程器或HMI/SCADA的所有以太网接口（IC693CMM321）模块与该CPU的通信必须是以下修订组之一：IC693CMM321-CC或更高版本IC693CMM321-AA或-BA升级至固件版本1.11或更高版本CPU363型号不支持通信配置（SNP从站除外通过电源端口），使用手持式编程器（HHP）。此版本的CPU需要IC693BEM340 FIP总线控制器固件版本3.00或更高版本固件。此硬件版本解决的问题原始缓存RAM组件已过时，不再可用。
TRICONEX 3000520-390C1R端子板新组件是最低的电源部分当前可用。此固件版本解决的问题CPU350、CPU360或CPU363 PLC中IC693ALG222/223模块故障的丢失/添加在所有以前的CPU固件版本中，当两个或更多高密度模拟输入模块（IC693ALG222）时或IC693ALG223）安装在CPU机架中，模块中的所有16个输入通道都处于活动状态，丢失当CPU机架处于工作状态时，可能会出现模块故障，并为其中一个模拟模块增加模块故障已通电。版本10.74中更正了此问题。时间问题IC693ALG220/221-F或更早版本模块可能导致错误%CPU读取的AI值IC693ALG220/221-F或早期模块版本报告的%AI值可能不正确并表现出不稳定的行为。某些电流或电压水平在应用于模块的输入范围内，可能会导致%AI值报告不正确。问题源于使用特定的光耦合器，这些光耦合器可能会在CPU 35x/36x模块中出现计时问题。IC693ALG220/221-G及更高版本的模块不会出现此问题
All Ethernet Interface (IC693CMM321) modules used for programmer or HMI/SCADA
communications with this CPU must be one of the following revision groups:
IC693CMM321-CC or later
IC693CMM321-AA or -BA upgraded to firmware version 1.11 or later
The CPU363 model does not support configuration of communications (other than SNP Slave
through the power supply port) using the Hand-Held Programmer (HHP).
IC693BEM340 FIP Bus Controller firmware version 3.00 or later is required for this release of CPU
firmware.Problems Resolved by this Hardware Revision
The original cache RAM component is obsolete and no longer available. The new component is the lowest
power part currently available.
Problems Resolved by this Firmware Revision
Loss/add of module faults with IC693ALG222/223 modules in CPU350, CPU360 or CPU363 PLC
In all previous CPU firmware versions, when two or more high-density analog input modules (IC693ALG222
or IC693ALG223) are installed in the CPU rack, and all 16 input channels are active in the modules, loss of
module and addition of module faults for one of the analog modules may occur when the CPU rack is
powered on. This issue is corrected in version 10.74.Timing Issue with
IC693ALG220/221-F or earlier
modules may result in incorrect
%AI values read by CPU
The %AI values reported by an IC693ALG220/221-F or earlier module revision
may be incorrect and exhibit erratic behavior. Certain current or voltage levels
within the input range applied to the module can cause the %AI values to be
reported incorrectly. The problem stems from the use of particular optocouplers that may exhibit timing issues with CPU 35x/36x modules.
