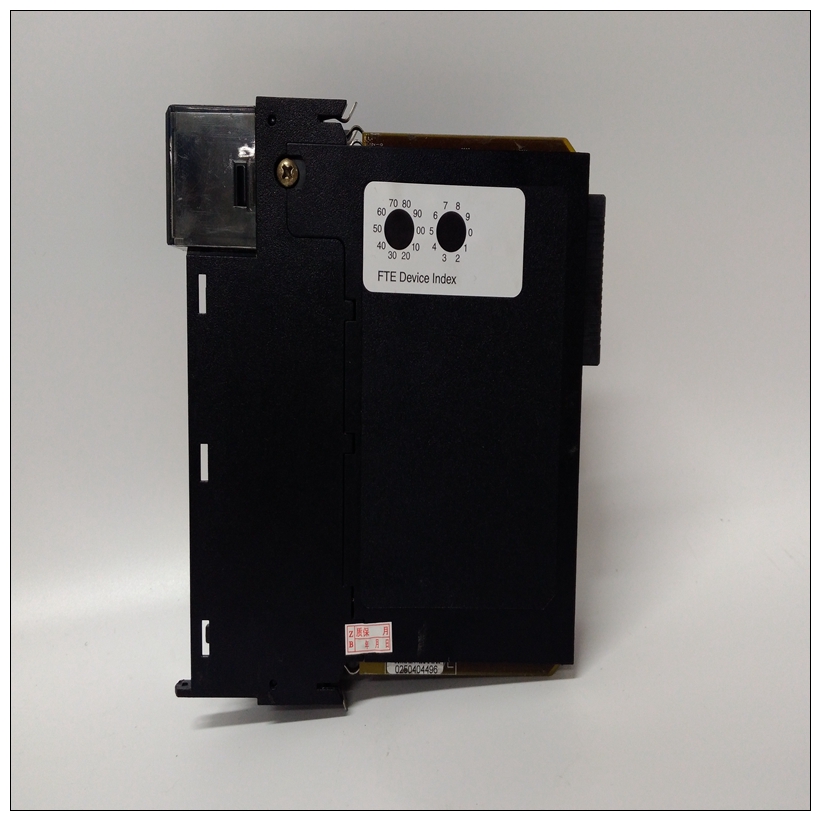

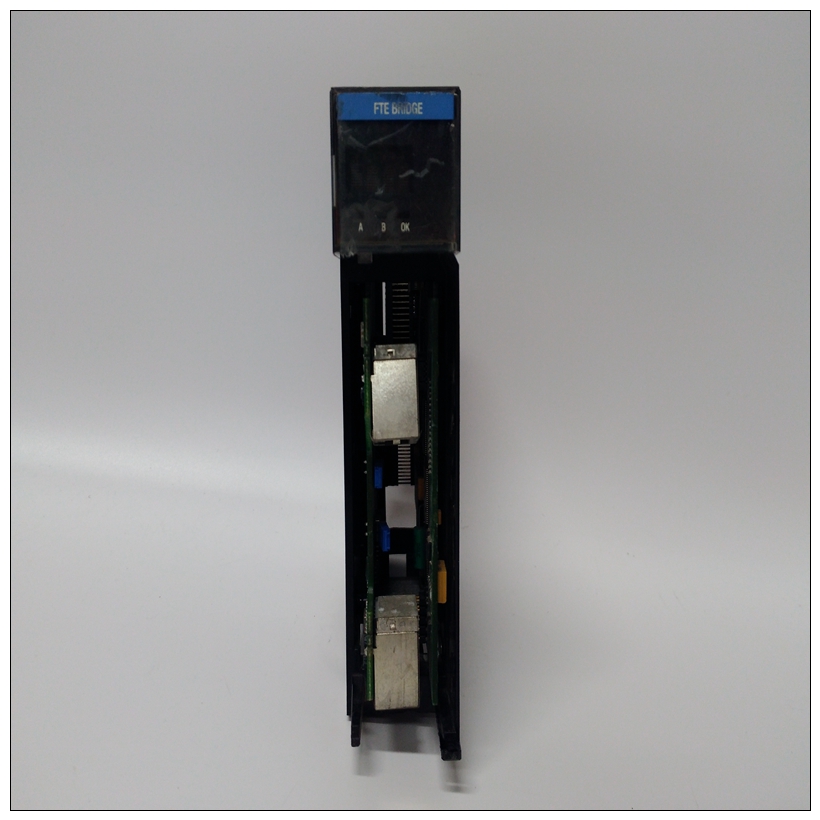

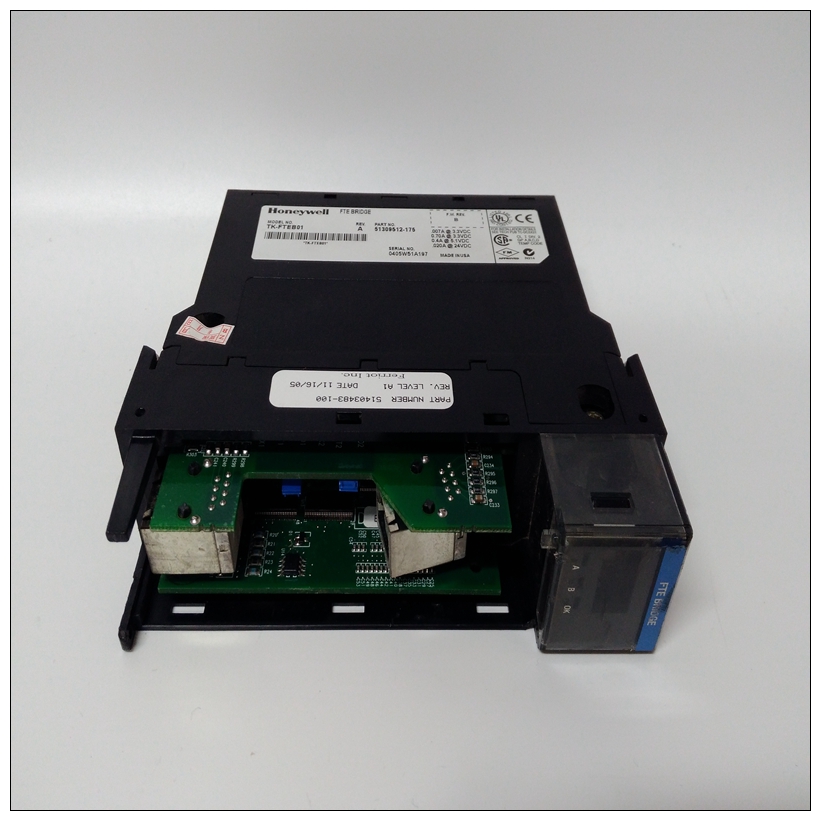

HONEYWELL TK-FTEB01电源模块,TK-FTEB01配置手册
关于输入/输出总线扩展电缆的重要说明1.I/O扩展系统中可包含的最大电缆数量为七，以及CPU基板和最后一个之间的总最大电缆长度膨胀基板为50英尺（15米）。之间的最大电缆总长度CPU基板和最后一个远程基板为700英尺（213米）。未能观察这些最大电缆长度可能会导致PLC运行不稳定系统2.CPU 350–364最多支持七条输入/输出扩展电缆。CPU 331–341最多支持四条输入/输出扩展电缆。3.50英尺（15米）输入/输出总线扩展电缆
HONEYWELL TK-FTEB01电源模块（IC693CBL302），其具有外螺纹连接器的每一端都内置了输入/输出总线端接电阻器电缆上的连接器。如果使用此电缆，则不会安装单独的终块小心不得连接或断开输入/输出总线扩展电缆向输入/输出扩展基板供电。想不到的可能导致PLC运行。电缆应用建议一般来说，在可能的情况下，使用标准的工厂制造的电缆来节省时间，避免接线错误。使用标准电缆用于基板之间的连接（CPU和扩展基板之间，两个扩展基板之间或两个远程基板之间）标准长度（0.5米、1米、2米、8米或15米）将满足需要。作为定制点到点电缆的Y形跳线（通常使用IC693CBL300为此）。这种组合节省了时间，因为点对点电缆可以建造得很多比Y形电缆更快。图10-23显示了一个示例。使用定制电缆当您需要标准尺寸的电缆长度时。当电缆必须穿过不够大的导管时
标准电缆的连接器，以适应通过。
Important Notes About I/O Bus Expansion Cables
1. The maximum number of cables that can be included in an I/O expansion system is
seven, and the total maximum cable length between the CPU baseplate and the last
expansion baseplate is 50 feet (15 meters). The total maximum cable length between
the CPU baseplate and the last remote baseplate is 700 feet (213 meters). Failure to
observe these maximum cable lengths could result in erratic operation of the PLC
system.
2. CPUs 350 – 364 support a maximum of seven I/O expansion cables. CPUs 331 – 341
support a maximum of four I/O expansion cables.
3. The 50 foot (15 meter) I/O bus expansion cable (IC693CBL302), which has a male
connector on each end, has the I/O bus terminating resistors built into the end
connector on the cable. If this cable is used, you would not install a separate terminator
block.
Caution
I/O Bus Expansion cables should NOT be connected or disconnected
with power applied to the I/O expansion baseplate(s). Unexpected
PLC operation may result.
Cable Application Suggestions
In general, it is advantageous to use standard, factory-built cables, where possible, to
save time and avoid wiring errors.
Using Standard Cables
For connecting between baseplates (either between a CPU and expansion baseplate,
between two expansion baseplates or between two remote baseplates) in the same
cabinet when a standard length (0.5, 1, 2, 8, or 15 meters) will fit the need.
As a Wye jumper for custom built point-to-point cables (IC693CBL300 is often used
for this). This combination saves time since a point-to-point cable can be built much
faster than a Wye cable. An example of this is shown in Figure 10-23.
Using Custom Built cables
When you need a cable length not available in a standard size.
When a cable must be routed through a conduit that is not large enough for a
standard cable’s connector to fit through.
