CONTEC PIO-16/16T(98)E输入/输出板 PDF资料
1.产 品 资 料 介 绍：
中文资料：
CONTEC PIO-16/16T(98)E 是一款用于工业自动化和设备控制的数字输入/输出板，通过 PCI 总线与计算机系统连接，提供 16 路数字输入和 16 路晶体管数字输出通道。该模块常用于需要高精度、高可靠性数据采集与控制的环境中，如工厂自动化、设备监控和测试系统。
产品规格：
- 产品型号: PIO-16/16T(98)E
- 制造商: CONTEC
- 输入/输出通道:
- 16路数字输入
- 16路数字晶体管输出
- 接口类型: PCI总线接口
- 输入信号电压: 12-24V DC，正逻辑或负逻辑输入
- 输出信号类型: 晶体管输出（TTL信号兼容）
- 输出负载电压: 5-35V DC
- 输出负载电流: 最大700mA/通道
- 隔离方式: 光电隔离，确保输入输出信号之间的电气隔离
- 操作系统支持: Windows 和 Linux
主要功能：
- 16路数字输入: 用于采集外部设备的状态信号，如传感器、开关信号等，实现设备或系统的状态监控。
- 16路晶体管输出: 支持控制执行器、继电器、灯光等外部设备，提供高效的数字输出控制。
- 光电隔离: 输入和输出通道之间具有光电隔离，确保信号不被干扰，增强系统的稳定性和安全性。
- 高负载能力: 晶体管输出通道支持较大电流和电压，能够驱动各种工业级设备。
特点：
- 即插即用设计: 支持 PCI 总线即插即用功能，方便快速安装和部署，适合各种工业自动化系统。
- 高可靠性: 工业级设计，具备长时间稳定运行的能力，适用于苛刻的工作环境。
- 灵活应用: 模块适合用于各种数字信号控制和数据采集任务，广泛应用于自动化生产线、楼宇管理系统等场景。
- 兼容性强: 支持多种操作系统及软件接口，适应各种自动化控制平台
英文资料：
The CONTEC PIO-16/16T (98) E is a digital input/output board used for industrial automation and equipment control. It is connected to computer systems through a PCI bus and provides 16 digital input and 16 transistor digital output channels. This module is commonly used in environments that require high-precision and high reliability data acquisition and control, such as factory automation, equipment monitoring, and testing systems.
Product specifications:
Product model: PIO-16/16T (98) E
Manufacturer: CONTEC
Input/output channels:
16 channel digital input
16 channel digital transistor output
Interface type: PCI bus interface
Input signal voltage: 12-24V DC, positive logic or negative logic input
Output signal type: transistor output (TTL signal compatible)
Output load voltage: 5-35V DC
Output load current: maximum 700mA/channel
Isolation method: photoelectric isolation, ensuring electrical isolation between input and output signals
Operating system support: Windows and Linux
Main functions:
16 channel digital input: used to collect status signals of external devices, such as sensors, switch signals, etc., to achieve status monitoring of devices or systems.
16 channel transistor output: supports controlling external devices such as actuators, relays, lights, etc., providing efficient digital output control.
Optoelectronic isolation: There is optoelectronic isolation between the input and output channels to ensure that signals are not interfered with, enhancing the stability and safety of the system.
High load capacity: The transistor output channel supports large currents and voltages, and can drive various industrial grade equipment.
characteristic:
Plug and play design: Supports PCI bus plug and play functionality, facilitating quick installation and deployment, suitable for various industrial automation systems.
High reliability: Industrial grade design, capable of long-term stable operation, suitable for harsh working environments.
Flexible application: The module is suitable for various digital signal control and data acquisition tasks, and is widely used in scenarios such as automated production lines and building management systems.
Strong compatibility: supports multiple operating systems and software interfaces, adapts to various automation control platforms

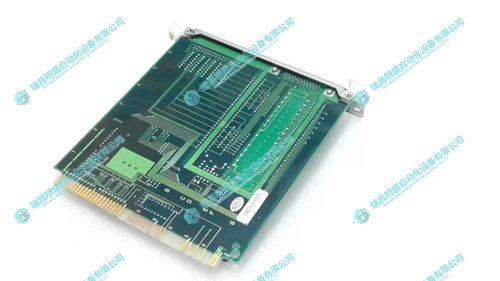

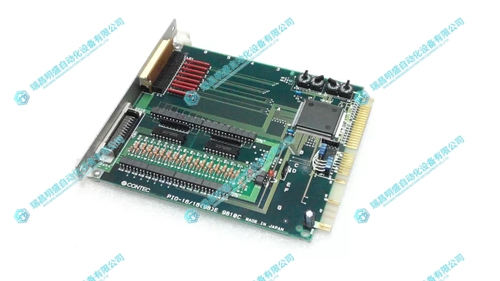

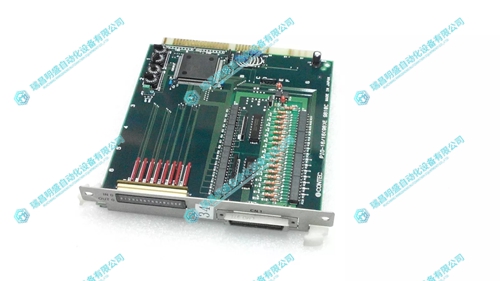

2.产 品 展 示
