CONTEC PI-48B(98) 印刷电路板 PDF资料
1.产 品 资 料 介 绍：
中文资料：
CONTEC PI-48B(98) 是一款用于工业自动化系统的多通道数字 I/O 印刷电路板（PCB）。它为系统提供了大量的数字输入和输出通道，广泛应用于需要大量 I/O 处理的工业环境中。
主要特点：
- 48 路数字 I/O 通道：PI-48B(98) 提供 48 路数字输入/输出通道，每个通道可以灵活配置为输入或输出，用于处理各种数字信号。
- ISA 总线接口：通过 ISA 总线接口连接，适合传统的工业计算机系统，尤其是需要与旧式控制系统兼容的应用。
- 灵活配置：每个 I/O 通道可以独立配置，支持多种输入和输出模式，适应不同的工业需求。
- 电气隔离：模块提供 I/O 通道的电气隔离，减少外部电气干扰对系统的影响，提高系统的稳定性和可靠性。
- 高抗干扰设计：具备良好的抗干扰能力，能够在工业环境中稳定工作，适应高噪声的电气环境。
技术规格：
- I/O 通道数量：48 路数字输入/输出通道。
- 总线接口：ISA 总线接口。
- 输入/输出模式：每个通道可以配置为输入或输出。
- 电气隔离：提供电气隔离，保护系统免受电气干扰。
- 工作环境：设计用于工业环境，抗干扰能力强。
应用场景：
- 工业自动化：在自动化生产线或控制系统中，PI-48B(98) 用于处理多个设备的数字信号，实现复杂的控制和监测任务。
- 数据采集系统：用于采集和处理来自多个传感器或开关的数据，并将其传输到计算机系统进行分析。
- 设备控制：可用于控制执行器、开关等设备，实现远程或自动控制。
英文资料：
CONTEC PI-48B (98) is a multi-channel digital I/O printed circuit board (PCB) used in industrial automation systems. It provides a large number of digital input and output channels for the system, widely used in industrial environments that require a large amount of I/O processing.
Main features:
48 digital I/O channels: PI-48B (98) provides 48 digital input/output channels, each of which can be flexibly configured as an input or output for processing various digital signals.
ISA bus interface: Connected through the ISA bus interface, suitable for traditional industrial computer systems, especially applications that require compatibility with legacy control systems.
Flexible configuration: Each I/O channel can be independently configured, supporting multiple input and output modes to meet different industrial needs.
Electrical isolation: The module provides electrical isolation for I/O channels, reducing the impact of external electrical interference on the system and improving its stability and reliability.
High anti-interference design: With good anti-interference ability, it can work stably in industrial environments and adapt to high noise electrical environments.
Technical specifications:
Number of I/O channels: 48 digital input/output channels.
Bus interface: ISA bus interface.
Input/output mode: Each channel can be configured as either input or output.
Electrical isolation: Provide electrical isolation to protect the system from electrical interference.
Work environment: Designed for industrial environments, with strong anti-interference ability.
Application scenarios:
Industrial Automation: In automated production lines or control systems, PI-48B (98) is used to process digital signals from multiple devices, enabling complex control and monitoring tasks.
Data acquisition system: used to collect and process data from multiple sensors or switches, and transmit it to a computer system for analysis.
Equipment control: It can be used to control actuators, switches, and other devices to achieve remote or automatic control.

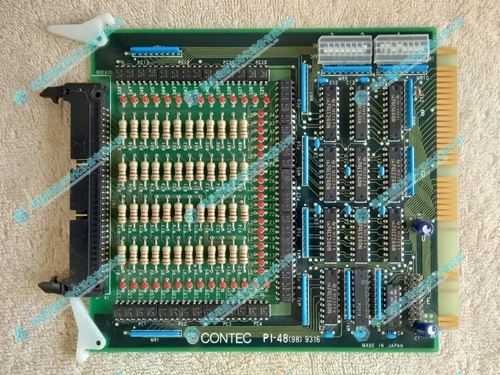

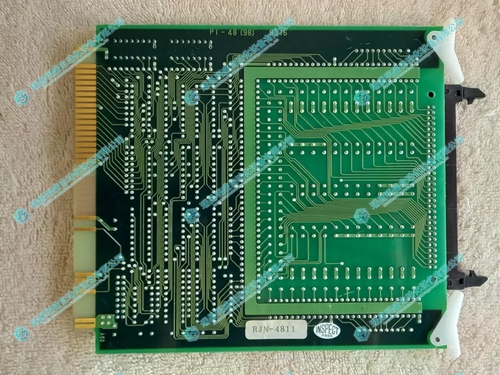

2.产 品 展 示
