Contec PI32(98)H Pcb电路板 PDF资料
1.产 品 资 料 介 绍：
中文资料：
Contec PI-32(98)H 是一款多功能数字输入/输出（I/O）扩展卡，通常用于工业自动化、数据采集和设备控制应用。该电路板采用 ISA 总线接口，提供高达 32 路的数字 I/O 通道。与 PI-32(98)E 类似，这款板卡旨在与旧式工业 PC 系统集成，适用于需要多个 I/O 通道的控制任务。
主要特点：
- 32 路数字 I/O：PI-32(98)H 提供多达 32 路数字输入/输出通道，支持多种设备的信号采集和控制，适用于大规模的自动化控制系统。
- ISA 总线接口：该电路板通过标准 ISA 接口与计算机连接，确保与传统工控系统兼容，是许多旧式 PC 系统的理想选择。
- 灵活的 I/O 配置：通道可以配置为输入或输出，使其可以根据特定的应用需求灵活调整。例如，一部分通道可以配置为输入用于采集传感器数据，另一部分通道可以配置为输出用于控制执行设备。
- 电气隔离：I/O 通道与系统电源之间具有电气隔离功能，防止外部设备对系统的电气干扰和潜在的损坏，保证操作的安全性和信号传输的稳定性。
- 兼容工业应用：专为工业环境设计，具有较高的抗干扰能力和耐用性，适合复杂且恶劣的工作条件。
应用场景：
- 工业自动化与过程控制：用于工厂自动化系统，提供多通道的 I/O 连接，控制和监测设备如传感器、开关、执行器等。
- 设备信号采集与控制：在需要监控多个外部设备状态或控制设备操作的场景中，例如在制造流水线或实验设备中，实现精确的信号采集和设备控制。
- 远程控制与数据监控：该电路板还可以用于远程控制系统和实时数据监控，为自动化系统提供全面的控制和反馈功能。
技术规格：
- I/O 通道数量：32 路数字输入/输出，每个通道可以单独配置为输入或输出。
- 总线接口：标准 ISA 总线接口，适合工业 PC 系统。
- 电气隔离：I/O 通道具有隔离保护，确保系统在使用过程中免受外部电气干扰的影响。
- 输入类型：适合读取开关信号、按钮状态、传感器反馈等简单的数字信号。
- 输出类型：可用于输出开关控制信号，启动/关闭设备或执行自动化动作。
英文资料：
Contec PI-32 (98) H is a multifunctional digital input/output (I/O) expansion card commonly used in industrial automation, data acquisition, and device control applications. This circuit board adopts ISA bus interface and provides up to 32 digital I/O channels. Similar to the PI-32 (98) E, this board is designed to integrate with older industrial PC systems and is suitable for control tasks that require multiple I/O channels.
Main features:
32 digital I/O: PI-32 (98) H provides up to 32 digital input/output channels, supporting signal acquisition and control of multiple devices, suitable for large-scale automation control systems.
ISA bus interface: This circuit board is connected to a computer through a standard ISA interface, ensuring compatibility with traditional industrial control systems and making it an ideal choice for many older PC systems.
Flexible I/O configuration: Channels can be configured as inputs or outputs, allowing them to be flexibly adjusted according to specific application requirements. For example, some channels can be configured as inputs for collecting sensor data, while others can be configured as outputs for controlling execution devices.
Electrical isolation: There is an electrical isolation function between the I/O channel and the system power supply, which prevents external devices from causing electrical interference and potential damage to the system, ensuring the safety of operation and the stability of signal transmission.
Compatible with industrial applications: Designed specifically for industrial environments, it has high anti-interference ability and durability, suitable for complex and harsh working conditions.
Application scenarios:
Industrial Automation and Process Control: Used for factory automation systems, providing multi-channel I/O connections to control and monitor equipment such as sensors, switches, actuators, etc.
Device signal acquisition and control: In scenarios where monitoring the status of multiple external devices or controlling device operations is required, such as in manufacturing lines or experimental equipment, precise signal acquisition and device control can be achieved.
Remote control and data monitoring: This circuit board can also be used for remote control systems and real-time data monitoring, providing comprehensive control and feedback functions for automation systems.
Technical specifications:
Number of I/O channels: 32 digital inputs/outputs, each channel can be individually configured as an input or output.
Bus interface: Standard ISA bus interface, suitable for industrial PC systems.
Electrical isolation: I/O channels have isolation protection to ensure that the system is not affected by external electrical interference during use.
Input type: Suitable for reading simple digital signals such as switch signals, button status, sensor feedback, etc.
Output type: Can be used to output switch control signals, start/stop devices, or perform automated actions.

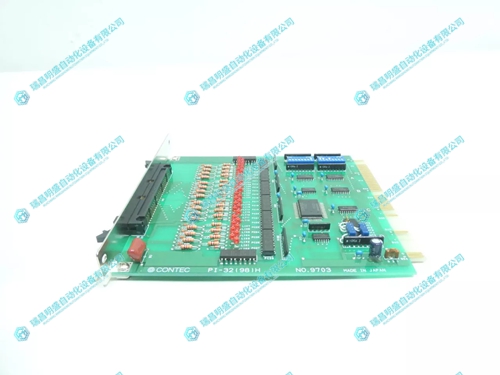

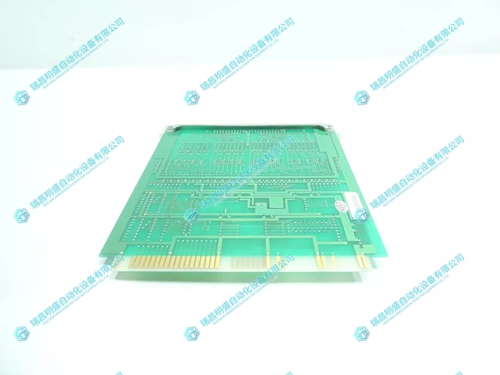

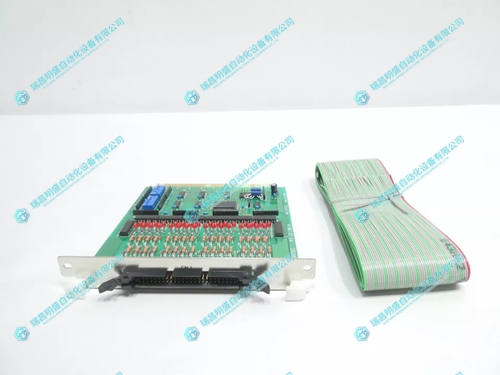

2.产 品 展 示
