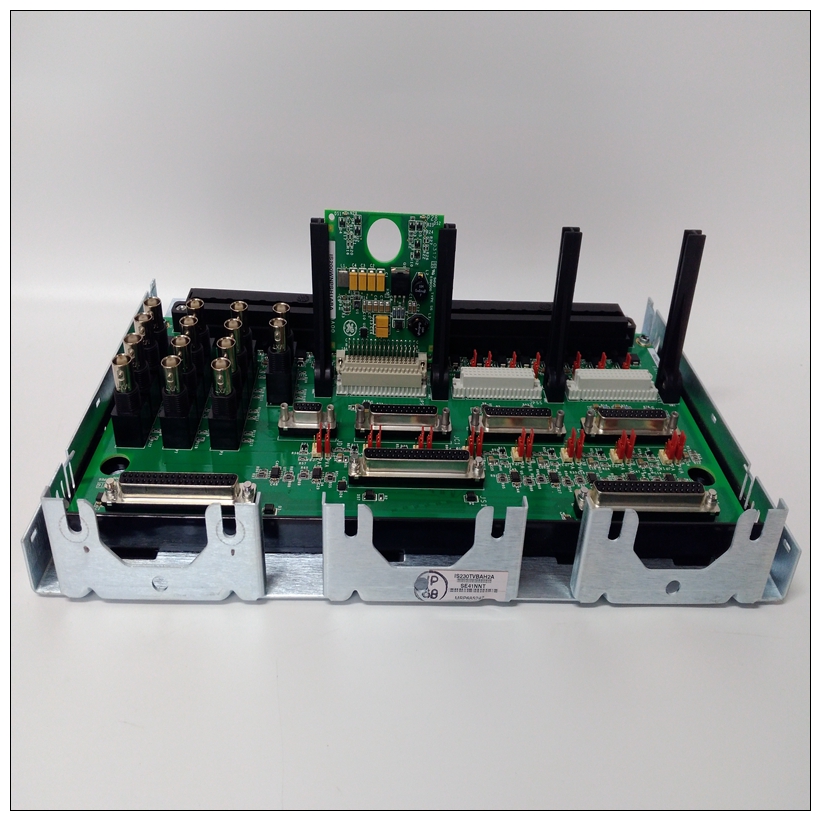

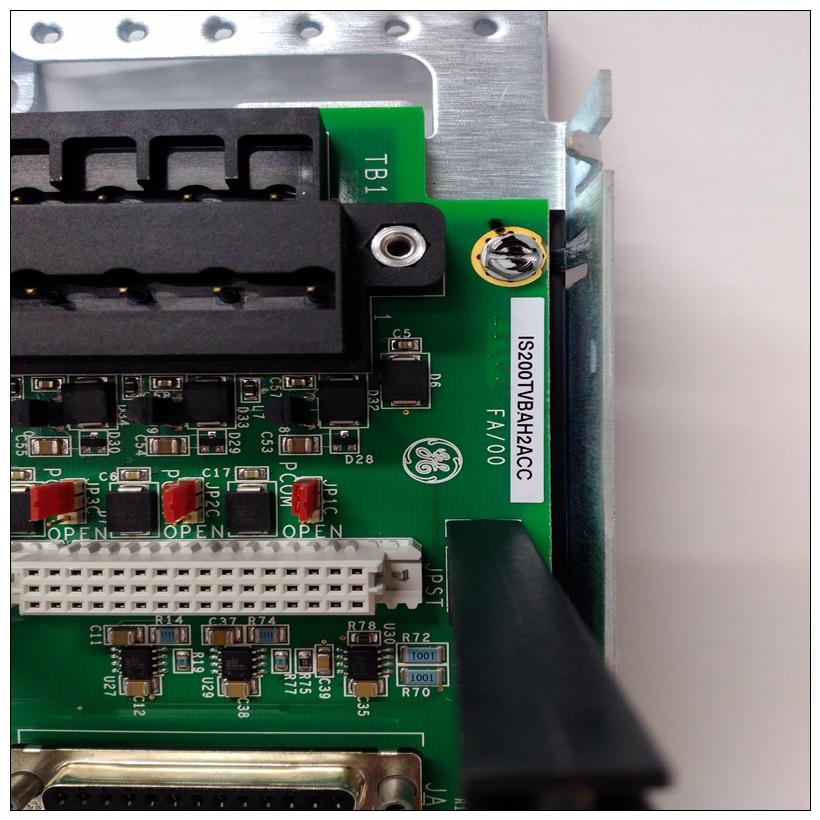

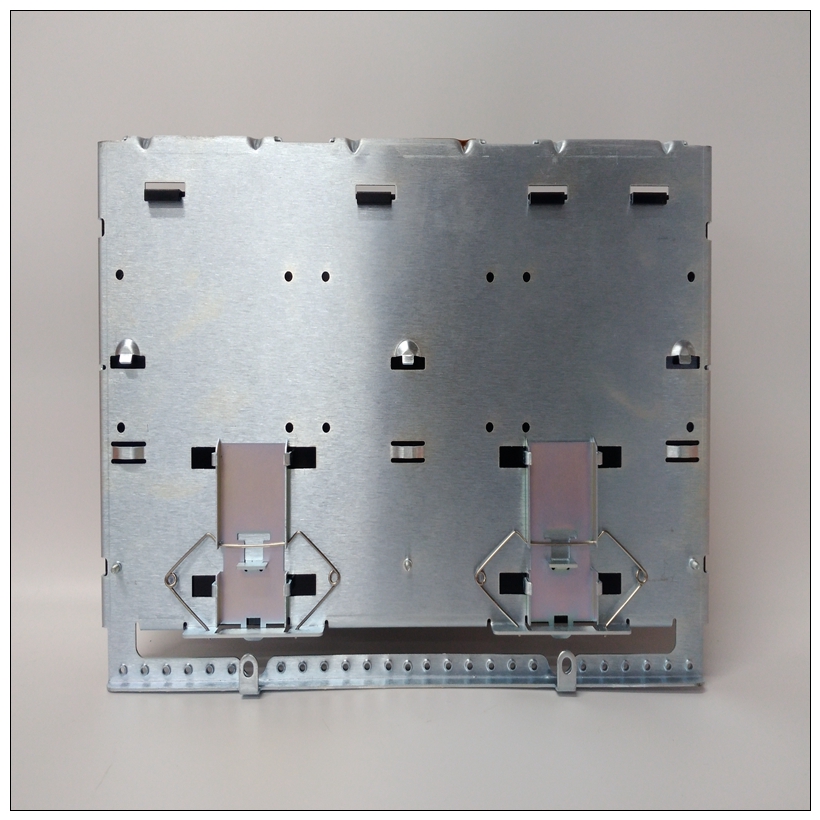

IS200TVBAH2ACC燃机电气模块,IS200TVBAH2ACC使用区域
如果机柜要相互安装，请使用随附的螺钉/螺栓套件。四个M8螺钉，带垫圈和螺母，在角铰链和六个M6螺钉中，Z1=500，Z2=1000，Z3=距地面1500 mm的高度，见图2-8。将M8螺钉拧紧至最大扭矩为20 Nm将机柜固定到地板上时，最大扭矩为10 Nm的M6螺钉使用四个或六个M12螺钉，其中图2-9所示为一个在一排机柜中的第一个左侧机柜的每个角落，拧紧以下机柜右侧各有两个螺钉。
IS200TVBAH2ACC燃机电气模块底角铰链具有孔，直径14毫米（0.6英寸）。这些孔允许您在安装孔后调整机柜位置在地板上钻孔。如果需要钻孔，确保没有灰尘或其他异物进入机柜中的设备。请注意机柜到墙壁的最小距离，以及天花板在地板和机柜底部之间使用垫圈，将机柜地板调平至水平位置。空间要求机柜的外形尺寸如中的尺寸图所示附录A.7图纸。以下规则适用于机柜的定位：?机柜顶面与梁的屋顶、拱腹或通风管等必须至少为250 mm。如果电缆从上方进入，则该距离为增加到1000毫米。?机柜后部和墙壁之间必须有至少40 mm的间隙，在橱柜两侧和墙壁之间。?允许带铰链的框架或外部封装的门完全打开，而无需在相邻墙壁上，与墙壁的距离必须增加到500 mm门框铰链侧（左侧），或车门铰链侧（右侧）300 mm。机柜前必须有至少1米的可用空间。必须能够完全打开门，以免限制退房和维修。If cabinets are to be mounted to each other use the included screw/bolt kit. The four M8 screws,
with washers and nuts, in the angle hinges and six M6 screws at about Z1=500, Z2=1000,
Z3=1500 mm height from the floor, see Figure 2-8. Tighten the M8 screws to 20 Nm maximum
and the M6 screws to 10 Nm maximumWhen fixing the cabinet to the floor use four or six M12 screws where Figure 2-9 indicates, one
at each corner in the first left hand cabinet in a row of cabinets and screw the following cabinets
with two screws each at the right hand side. The bottom angle hinges features holes,
14 mm (0.6”) in diameter. These holes permit you to adjust the cabinet location after holes are
drilled in the floor. If drilling is necessary, make sure that no dust or other foreign matter enters
the equipment in the cabinet. Please notice the minimum distances from cabinet to walls and
ceiling. Use washers between the floor and the cabinet bottom to level the cabinet floor into a
horizontal position.Space Requirements
The overall dimensions of the cabinet are shown in a dimension diagram in
Appendix A.7 Drawings.
The following rules apply to locating and positioning of the cabinet:
? The distance between the top surface of the cabinet and the roof, soffit of a beam or
ventilation duct etc. must be at least 250 mm. If cables enter from above, this distance is
increased to 1000 mm.
? There must be a clearance of at least 40 mm between the rear of the cabinet and the wall,
and between the sides of the cabinet and the wall.
? To permit a frame with hinge, or a door to an outer encapsulation to open fully without
catching on the adjacent wall, the distance to the wall must be increased to 500 mm on the
hinge side (left) of the frame, or 300 mm on the hinge side (right) of the door.
? There must be at least 1 meter of free space in front of the cabinet. It must be possible to
open the door completely, in order not to restrict access for check-out and servicing.
