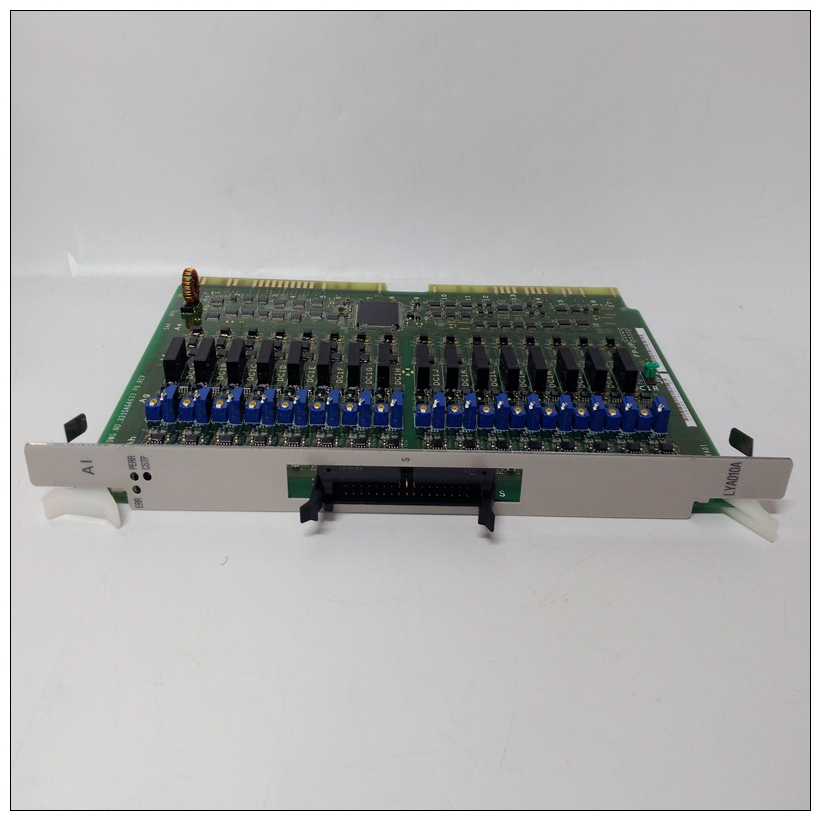

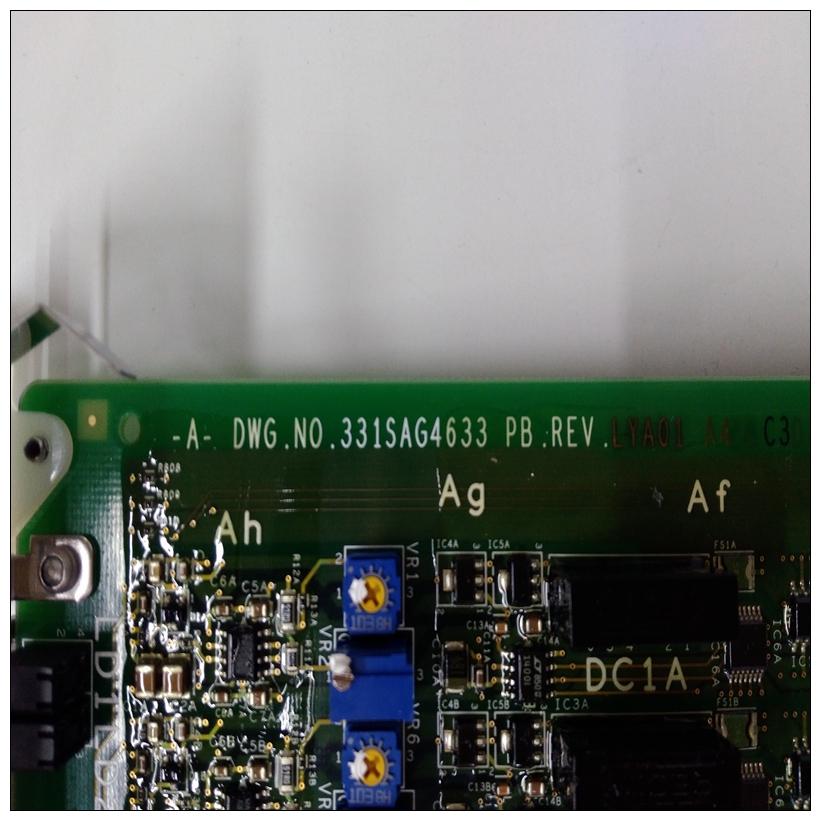

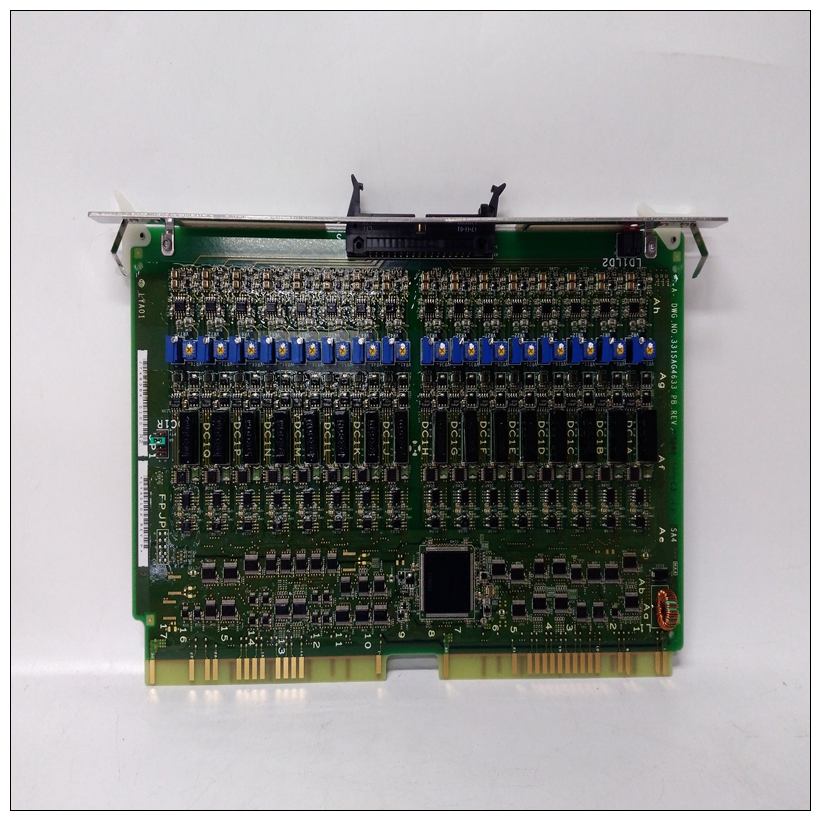

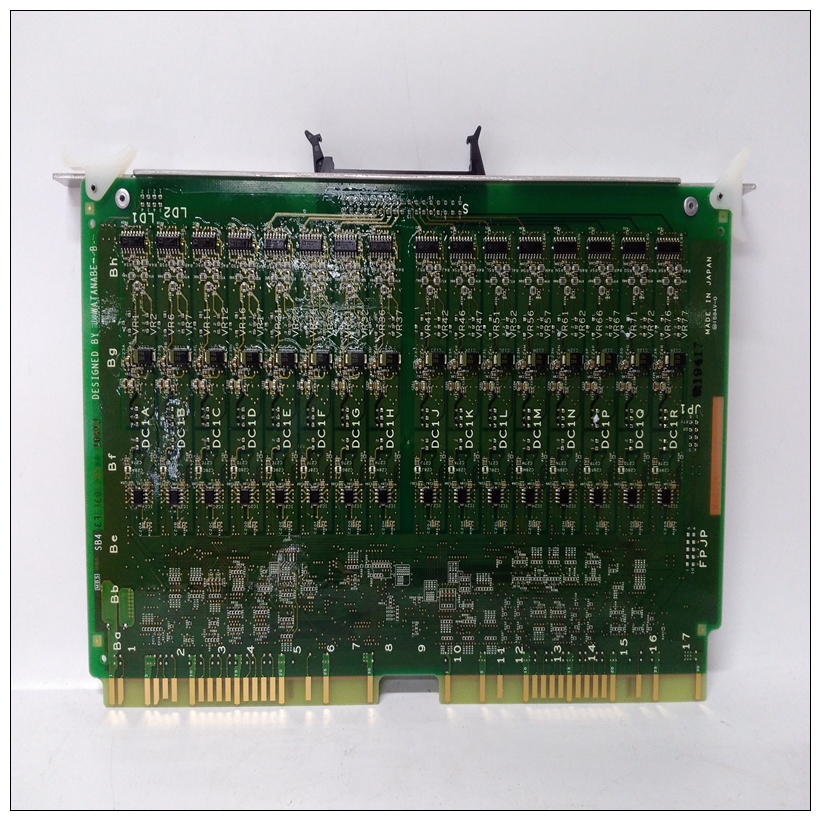

HITACHI LYA010A控制系统,LYA010A使用配置说明
更换HSS模块：
1.将HSS模块上的2个锁紧螺钉旋转½圈释放模块的任何一种方式。
2、抓住螺钉，滑出模块。
3.设置双列直插式开关S1至S5和跳线J1至S5将J31设置为正确的设置。表3-1至3-6列出了双列直插式开关和跳线设置选项。
4、握住面板，将其滑入分配的时隙；推动，直到模块的后边缘位于背板连接器中。
5.转动2个锁紧螺钉½圈，将模块锁定位置模块锁定在模块安装单元中
HITACHI LYA010A控制系统当锁紧螺钉上插槽的开口端朝向模块面板的中心。
终端装置/模块更换要更换NTHS03或NTDI01终端单元，请参阅
适用termi nation装置产品说明中的维修/更换程序部分。要更换NIDI01终端模块，请参阅维修/更换程序其产品说明中的第节。这些说明包含逐步更换程序和备件清单。
表7-1还列出了终端的保险丝零件号单位。贝利控制公司准备帮助使用和维修其产品。联系最近的销售办事处销售、应用、安装、维修、大修请求和维护合同服务。
To replace the HSS module:
1. Turn the 2 latching screws on the HSS module ½-turn
either way to release the module.
2. Grasp the screws and slide out the module.
3. Set dipswitches S1 through S5 and jumpers J1 through
J31 to the proper settings. Tables 3-1 through 3-6 list the
dipswitch and jumper setting options.
4. Hold the module by the faceplate and slide it into its
assigned slot; push until the rear edges of the module are
seated in the backplane connectors.
5. Turn the 2 latching screws ½-turn to lock the modules in
place. The module is locked into the module mounting unit
when the open end of the slots on the latching screws faces the
center of the module faceplate.
TERMINATION UNIT/MODULE REPLACEMENT
To replace the NTHS03 or NTDI01 termination unit, refer to the
repair/replacement procedures section in the applicable termination unit product instruction. To replace the NIDI01 termination module, refer to the repair/replacement procedures
section in its product instruction. These instructions contain
step by step replacement procedures and a spare parts list.
Table 7-1 also lists fuse part numbers for the termination
units.Bailey Controls Company is ready to help in the use and repair
of its products. Contact the nearest sales office to make
requests for sales, applications, installation, repair, overhaul
